Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2018, 05:53 PM

  • 15 0001_H 0717_11072018_111936.mp4

Date
07/11/2018
W/O
712465
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00941
PipeID
P11126
Time
10:53 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5907
Sewer Name
H JOINT OUTFALL H - UNIT 9B
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
29
Purpose
Routine Assessment
Project
WO_712465_TV22077_JUL2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
25 in.
Width
25 in.
Upstream MH
15 0001
Downstream MH
H 0717
Dir. of Survey
Downstream
Length Surveyed
296.9 ft.
Total Length
297.6 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
150
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
151
Pipe schematic from manhole 15 0001 to H 0717
MH: 15 0001MH: H 0717downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 15 00010 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. MGO - General Observation - MAG COAT49.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start271.6 ft. LL - Alignment Left, 10 %296.9 ft. MGO - General Observation - MH H 0717 DOES NOT EXIST296.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish296.9 ft. AMH - Downstream Manhole, Survey Ends - H 0717 (DOES NIT EXIST)

Observation photos (2)

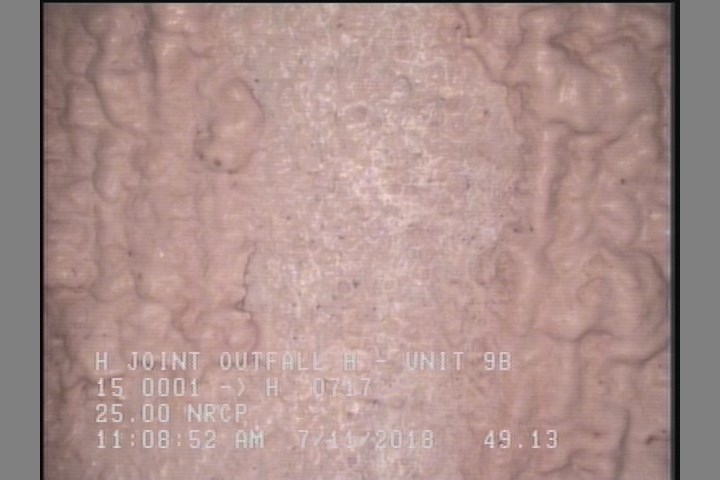

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    49.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

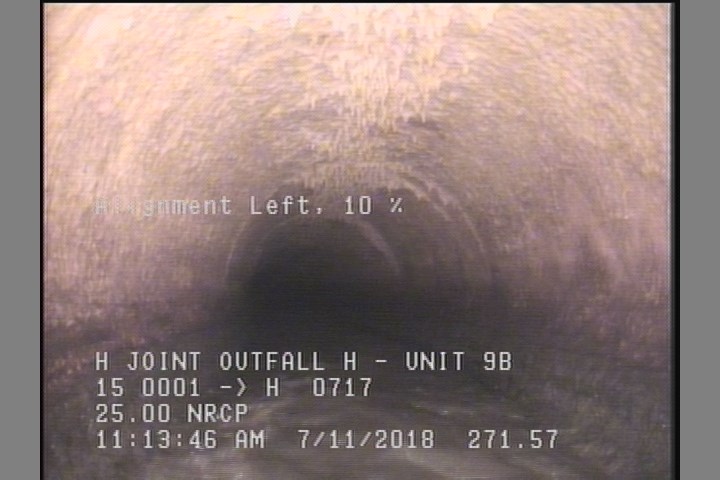

  • Alignment Left, 10 %

    271.6 ft. - Alignment Left, 10 %

All inspections of P11126Work order 712465

Observations (11)

DistanceCodeObservation
271.6LL—
0MGOCONNECTION AT MH 9 O'CLOCK
49.1SAV—
2.1MGOMAG COAT
0AMH15 0001
0MWM—
0MGOCONNECTION AT MH 9 O'CLOCK
296.9MGOMH H 0717 DOES NOT EXIST
296.9SAV—
296.9AMHH 0717 (DOES NIT EXIST)
0MWL—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-11T10:53:54-07:00
