Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 16, 2018, 10:18 AM

  • 08 0270_08 0269 _16072018_033354.mp4

Date
07/16/2018
W/O
712429
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00004
PipeID
P00312
Time
3:18 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5865
Sewer Name
08 DEL AMO TRUNK
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
08
Purpose
Routine Assessment
Project
WO_712429_TV08167_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0270
Downstream MH
08 0269
Dir. of Survey
Downstream
Length Surveyed
347.7 ft.
Total Length
347.7 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
11
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
13
Pipe schematic from manhole 08 0270 to 08 0269
MH: 08 0270MH: 08 0269downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 02700 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MGO - General Observation - ROACHES AT MH0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start73.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start115.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"118.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"231.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"234 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"317.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"320.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"326.3 ft. FL - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES335.1 ft. JOM - Joint Offset Medium342 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish342 ft. FM - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES347.7 ft. MGO - General Observation - ROACHES IN MH347.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish347.7 ft. AMH - Downstream Manhole, Survey Ends - 08 0269

Observation photos (5)

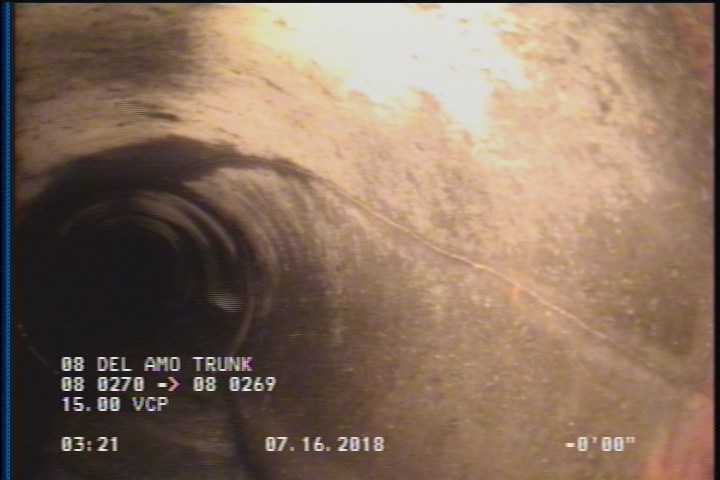

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

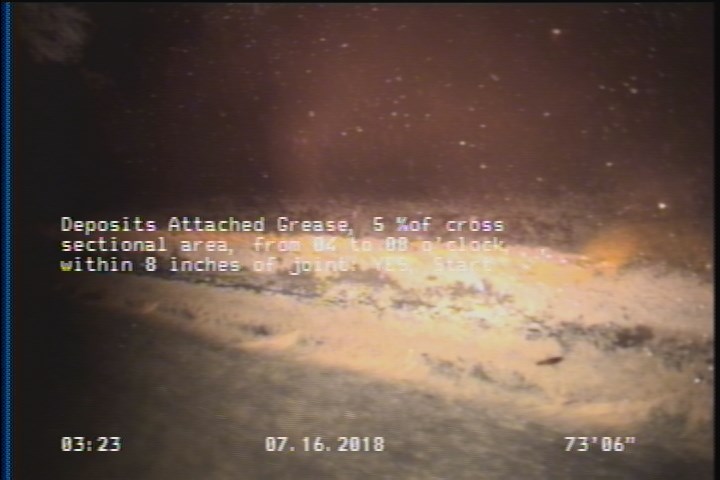

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    73.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    326.3 ft. - Fracture Longitudinal, at 01 o'clock, within 8 inches of joint: YES

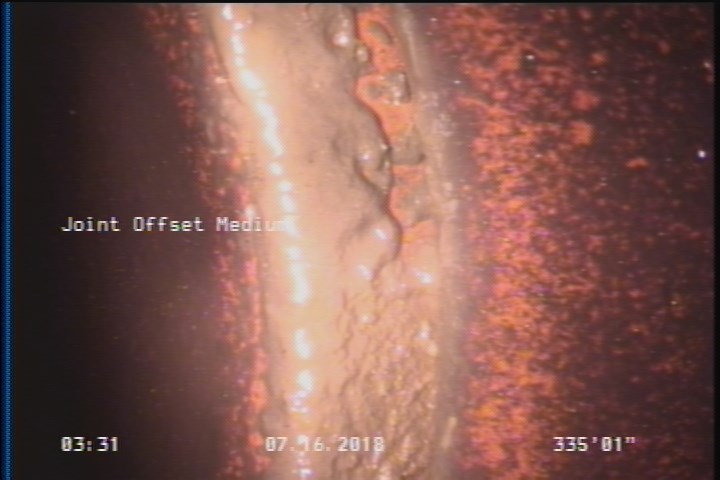

  • Joint Offset Medium

    335.1 ft. - Joint Offset Medium

  • Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    342 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

All inspections of P00312Work order 712429

Observations (19)

DistanceCodeObservation
347.7MGOROACHES IN MH
73.5DAGS—
115.5TFC—
0AMH08 0270
231.1TFC—
335.1JOM—
0MWM—
320.7TFC—
326.3FL—
2CM—
118.5TFC—
342CM—
342FM—
347.7DAGS—
347.7AMH08 0269
0MGOROACHES AT MH
234TFC—
0MWL—
317.3TFC—

Properties (4)

additional_info
SC359733
custom_field_two
3
customer
LACSD
datetime
2018-07-16T03:18:55-07:00
