Wastewater/Activity/PacpInspection/1.0Jul 17, 2018, 09:04 AM
08 0222_08 0221 _17072018_021202.mp4
- Date
- 07/17/2018
- W/O
- 712106
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00094
- Time
- 2:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5868
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_712106_TV08112_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0222
- Downstream MH
- 08 0221
- Dir. of Survey
- Downstream
- Length Surveyed
- 11.4 ft.
- Total Length
- 11.4 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

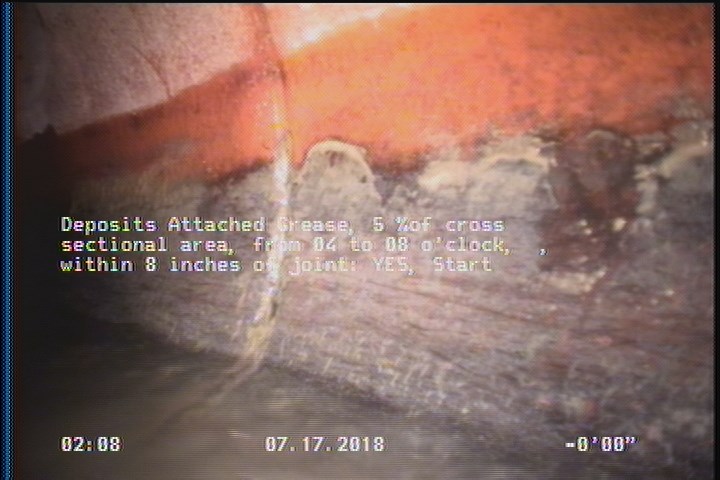

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

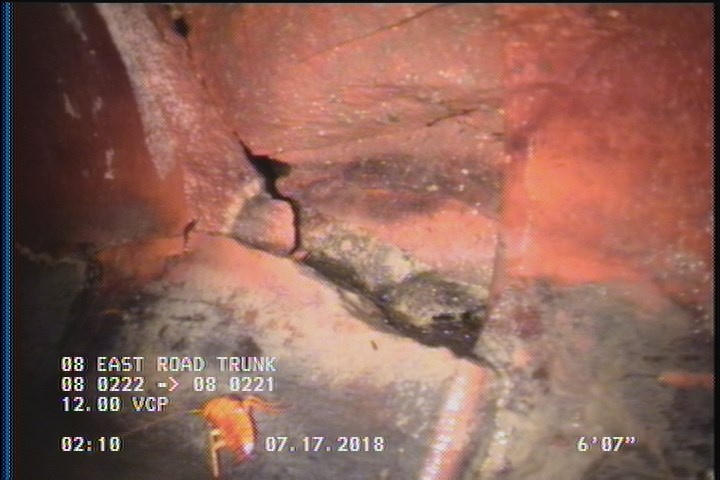

6.5 ft. - Hole, from 03 to 04 o'clock, within 8 inches of joint: YES

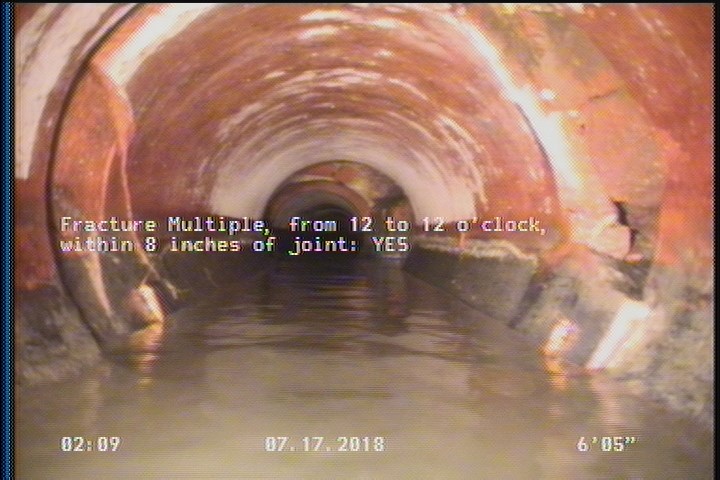

6.5 ft. - Fracture Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 6.5 | H | — |
| 6.4 | TFC | — |
| 10.2 | DAGS | — |
| 0 | MWL | — |
| 0 | AMH | 08 0222 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 11.4 | AMH | 08 0221 |
| 6.5 | FM | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC359736
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-17T02:04:44-07:00
