Wastewater/Activity/PacpInspection/1.0Jul 16, 2018, 09:18 AM
05 2460_05 2459 _16072018_022540.mp4
- Date
- 07/16/2018
- W/O
- 712090
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00904
- PipeID
- P20855
- Time
- 2:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5864
- Sewer Name
- 05 SO HAWTHORNE-WARFIELD AV EXT RELF TR, SECTS 4A&4C
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_712090_TV05366_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 05 2460
- Downstream MH
- 05 2459
- Dir. of Survey
- Downstream
- Length Surveyed
- 58.2 ft.
- Total Length
- 58.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

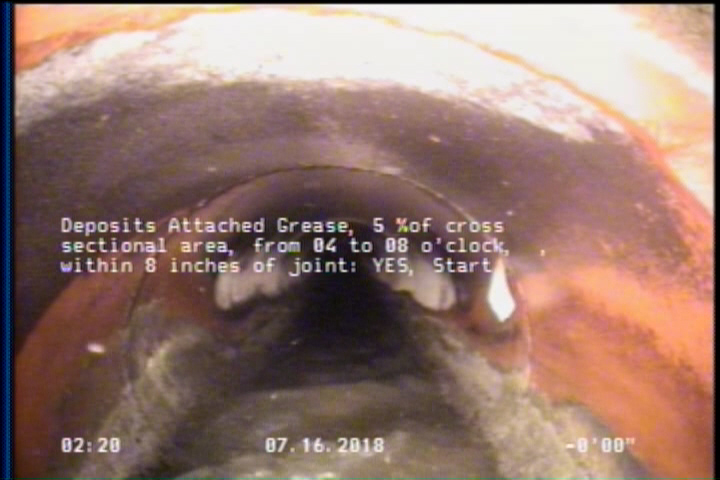

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
44.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 9 | CM | — |
| 58.2 | DAE | — |
| 44.2 | DAE | — |
| 0 | MWL | — |
| 58.2 | DAGS | — |
| 58.2 | CM | — |
| 0 | AMH | 05 2460 |
| 2 | DAGS | — |
| 58.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 58.2 | AMH | 05 2459 |
Properties (5)
- additional_info
- SC359732
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-16T02:18:30-07:00
- year_laid
- 34929
