Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 17, 2018, 09:15 AM

  • 02 1171_02 1170 _17072018_023716.mp4

Date
07/17/2018
W/O
712083
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00350
PipeID
P04565
Time
2:15 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5778
Sewer Name
02 GARFIELD AVENUE TRUNK
City
MONTEBELLO
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_712083_TV02336_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 1171
Downstream MH
02 1170
Dir. of Survey
Downstream
Length Surveyed
299.6 ft.
Total Length
299.6 ft.
Structural Index
4
Structural Quick
524J
Structural Rating
238
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
238
Pipe schematic from manhole 02 1171 to 02 1170
MH: 02 1171MH: 02 1170downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 11710 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area4.6 ft. B - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start15.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"28.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish28.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start65.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"116.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"167.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"218.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"266.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"291.7 ft. B - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES299.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish299.6 ft. AMH - Downstream Manhole, Survey Ends - 02 1170299.6 ft. MGO - General Observation - PIPE IS 10"

Observation photos (4)

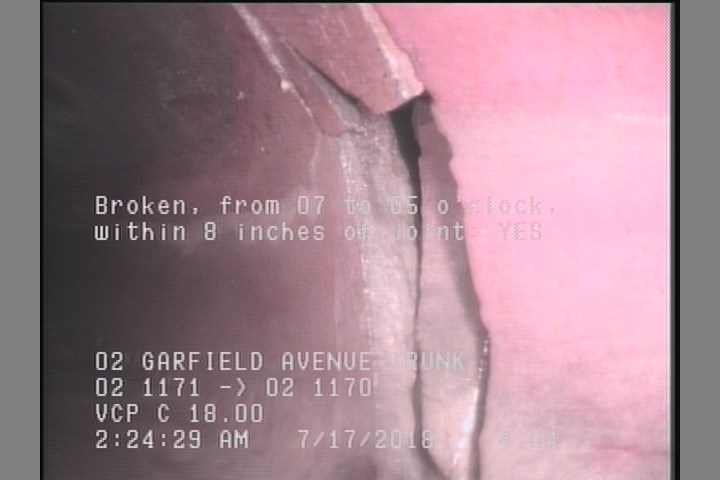

  • Broken, from 07 to 05 o'clock, within 8 inches of joint: YES

    4.6 ft. - Broken, from 07 to 05 o'clock, within 8 inches of joint: YES

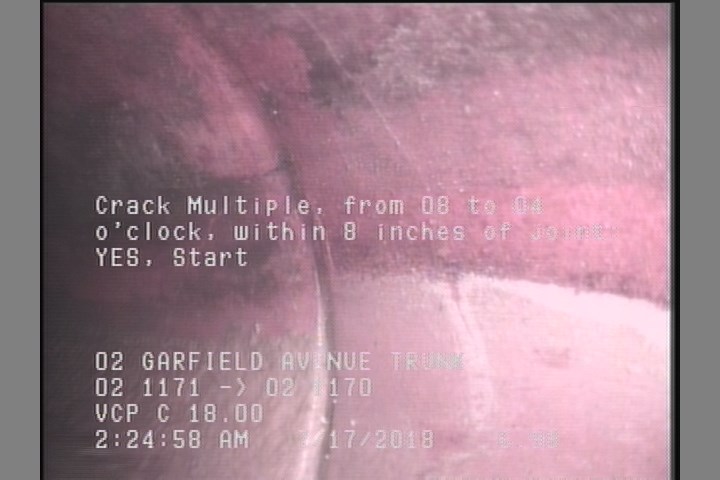

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

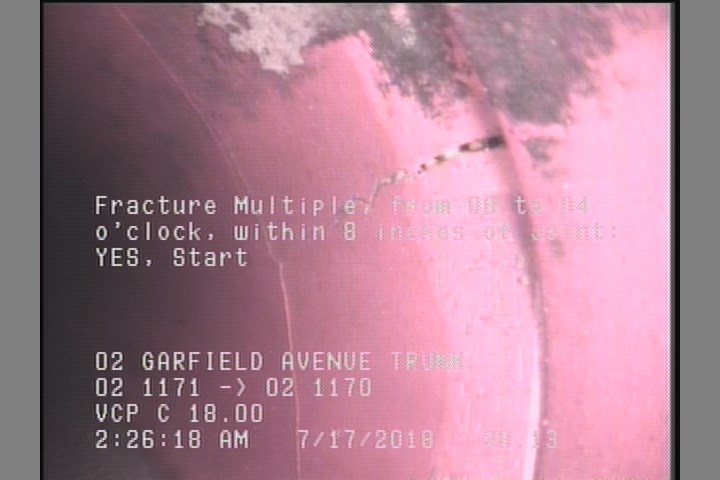

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    28.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

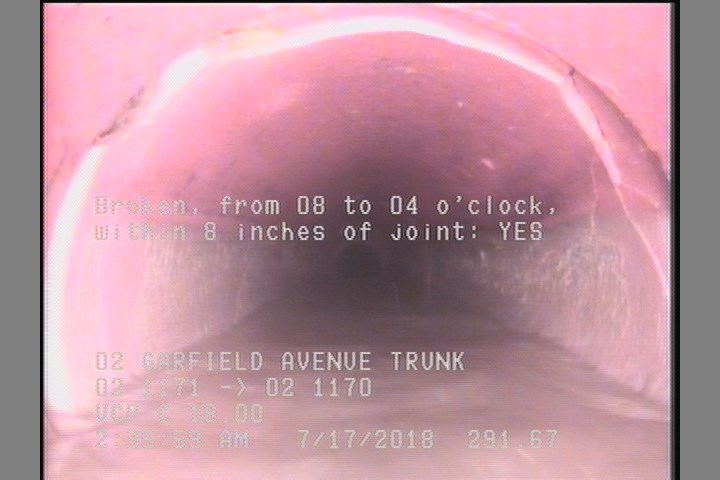

  • Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

    291.7 ft. - Broken, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P04565Work order 712083

Observations (18)

DistanceCodeObservation
0MWM—
0AMH02 1171
4.6B—
28.1CM—
218.7TFC—
167.7TFC—
0MGOCONNECTION AT MH 6 O'CLOCK
28.1FM—
7CM—
291.7B—
116.7TFC—
299.6AMH02 1170
299.5FM—
266.6TF—
65.7TFC—
15.8TFC—
0MWL—
299.6MGOPIPE IS 10"

Properties (4)

additional_info
SC359689
custom_field_two
1
customer
LACSD
datetime
2018-07-17T02:15:22-07:00
