Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 11, 2018, 10:23 AM

  • 22 1066_22 1065 _11072018_033557.mp4

Date
07/11/2018
W/O
711997
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00812
PipeID
P17437
Time
3:23 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5772
Sewer Name
22 IRWINDALE TRUNK, SECTS 2,3,4,&5
City
IRWINDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
18
Purpose
Routine Assessment
Project
WO_711997_TV22043_JUL2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 1066
Downstream MH
22 1065
Dir. of Survey
Downstream
Length Surveyed
303.3 ft.
Total Length
303.3 ft.
Structural Index
3
Structural Quick
3K2K
Structural Rating
300
O&M Index
1
O&M Quick
1400
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
304
Pipe schematic from manhole 22 1066 to 22 1065
MH: 22 1066MH: 22 1065downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 10663.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start150.6 ft. RFJ - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YES221.7 ft. RFC - Roots Fine Connection, from 02 to 05 o'clock223.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"227.1 ft. RFJ - Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES251.4 ft. RFJ - Roots Fine Joint, at 11 o'clock, within 8 inches of joint: YES303.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish303.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish303.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK303.3 ft. AMH - Downstream Manhole, Survey Ends - 22 1065

Observation photos (6)

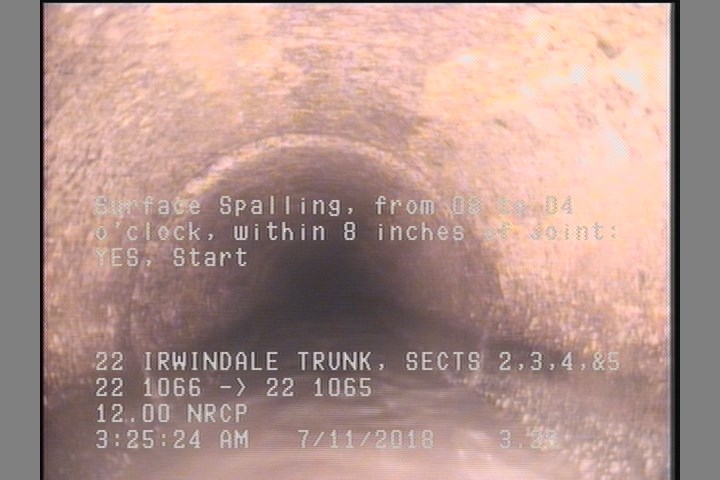

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

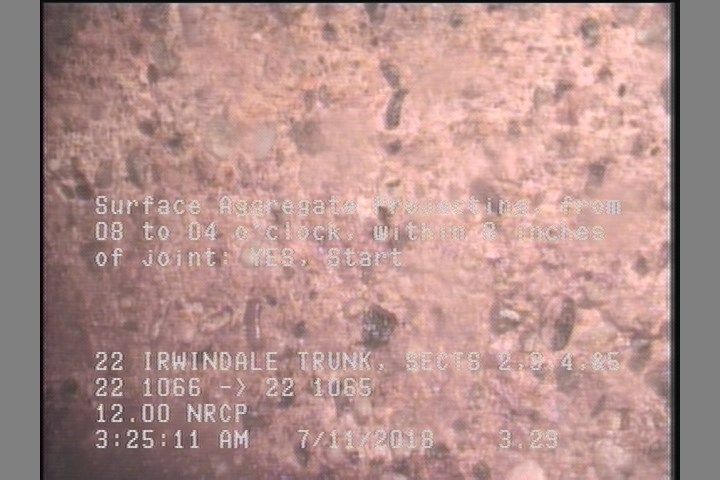

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

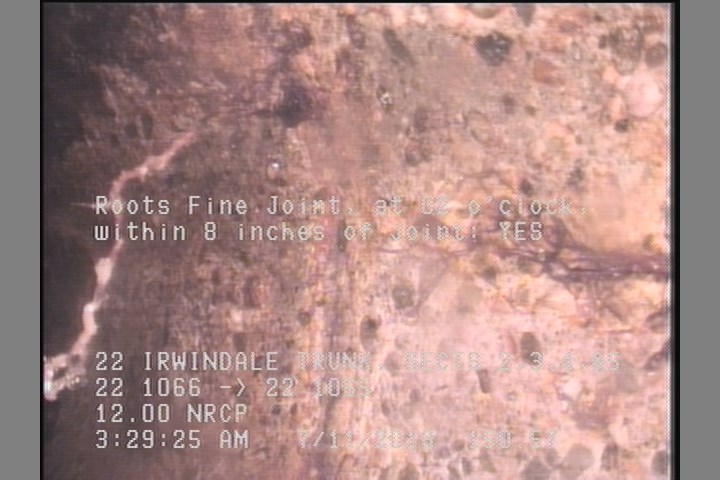

  • Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YES

    150.6 ft. - Roots Fine Joint, at 02 o'clock, within 8 inches of joint: YES

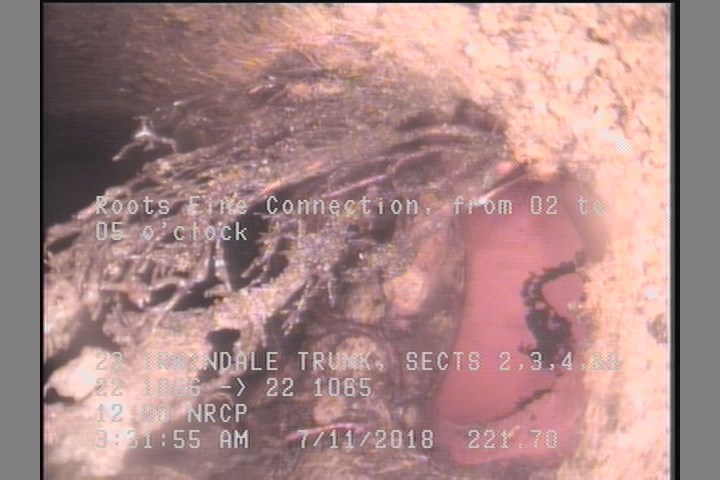

  • Roots Fine Connection, from 02 to 05 o'clock

    221.7 ft. - Roots Fine Connection, from 02 to 05 o'clock

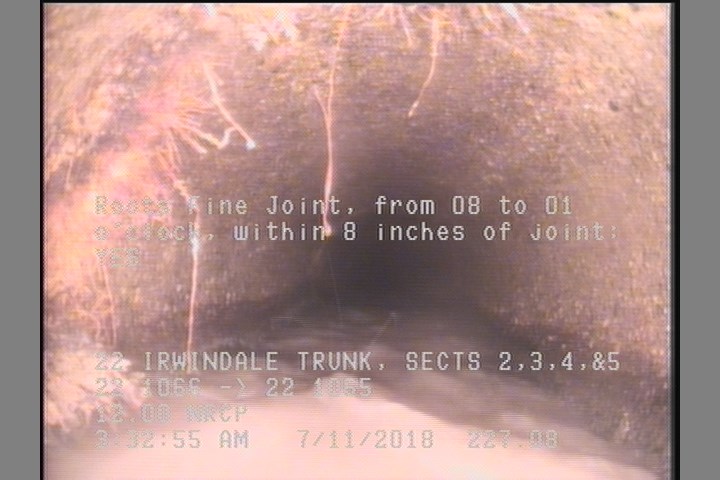

  • Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES

    227.1 ft. - Roots Fine Joint, from 08 to 01 o'clock, within 8 inches of joint: YES

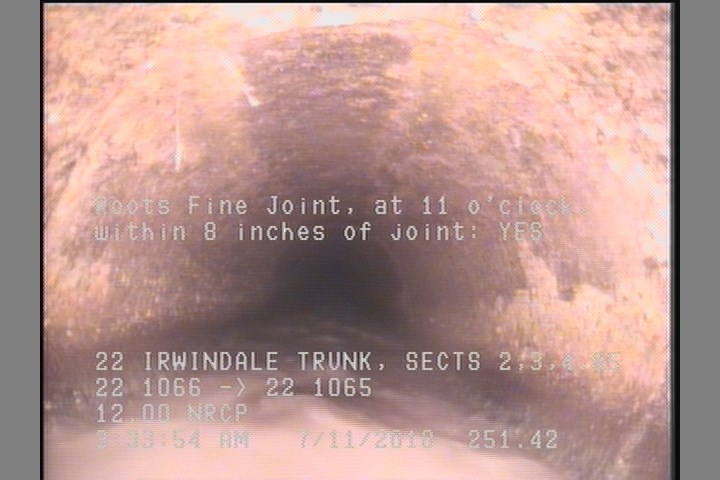

  • Roots Fine Joint, at 11 o'clock, within 8 inches of joint: YES

    251.4 ft. - Roots Fine Joint, at 11 o'clock, within 8 inches of joint: YES

All inspections of P17437Work order 711997

Observations (14)

DistanceCodeObservation
150.6RFJ—
0MWL—
3.3SSS—
303.3SSS—
3.3SAP—
303.3SAP—
223.1TF—
251.4RFJ—
0MWM—
303.3MGOCONNECTION AT MH 9 O'CLOCK
303.3AMH22 1065
221.7RFC—
227.1RFJ—
0AMH22 1066

Properties (4)

additional_info
SC359681
custom_field_two
3
customer
LACSD
datetime
2018-07-11T03:23:39-07:00
