Wastewater/Activity/PacpInspection/1.0Jul 11, 2018, 08:27 AM
22 1071_22 1070_11072018_014436.mp4
- Date
- 07/11/2018
- W/O
- 711997
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00812
- PipeID
- P17442
- Time
- 1:27 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5772
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_711997_TV22043_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1071
- Downstream MH
- 22 1070
- Dir. of Survey
- Downstream
- Length Surveyed
- 378.7 ft.
- Total Length
- 378.7 ft.
- Structural Index
- 3
- Structural Quick
- 3N2L
- Structural Rating
- 357
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 357
Observation photos (2)

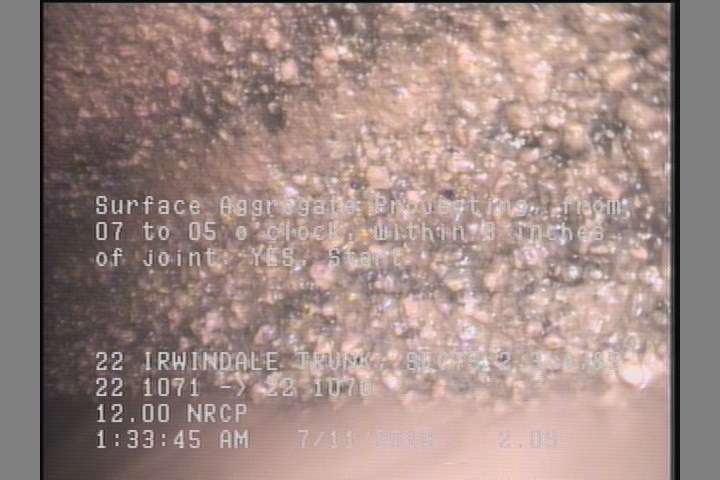

2.1 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

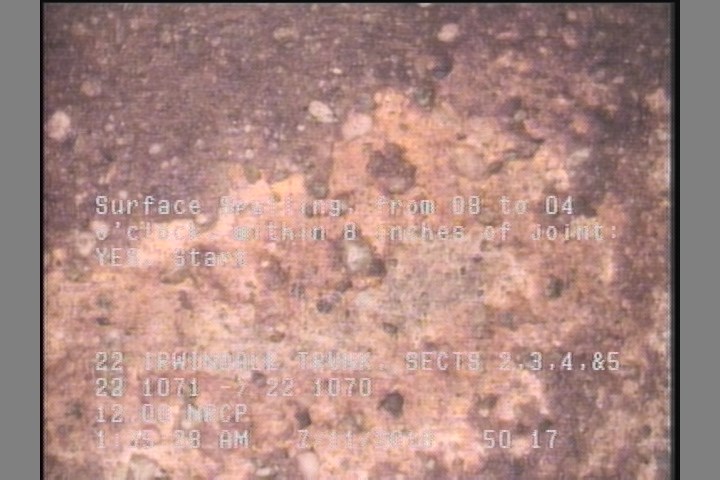

50.2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 378.7 | MGO | CAPPED LATERAL 3 O'CLOCK @ MH |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 378.7 | SSS | — |
| 378.7 | AMH | 22 1070 |
| 0 | MWM | — |
| 378.7 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 160.4 | TF | — |
| 378.7 | SAP | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 50.2 | SSS | — |
| 0 | AMH | 22 1071 |
Properties (4)
- additional_info
- SC359681
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-11T01:27:41-07:00
