Wastewater/Activity/PacpInspection/1.0Jul 16, 2018, 10:31 AM
22 1058_22 1057 _16072018_033905.mp4
- Date
- 07/16/2018
- W/O
- 711997
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00812
- PipeID
- P17429
- Time
- 3:31 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5775
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_711997_TV22043_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 1058
- Downstream MH
- 22 1057
- Dir. of Survey
- Downstream
- Length Surveyed
- 270.6 ft.
- Total Length
- 270.6 ft.
- Structural Index
- 3
- Structural Quick
- 3J2J
- Structural Rating
- 270
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 270
Observation photos (2)

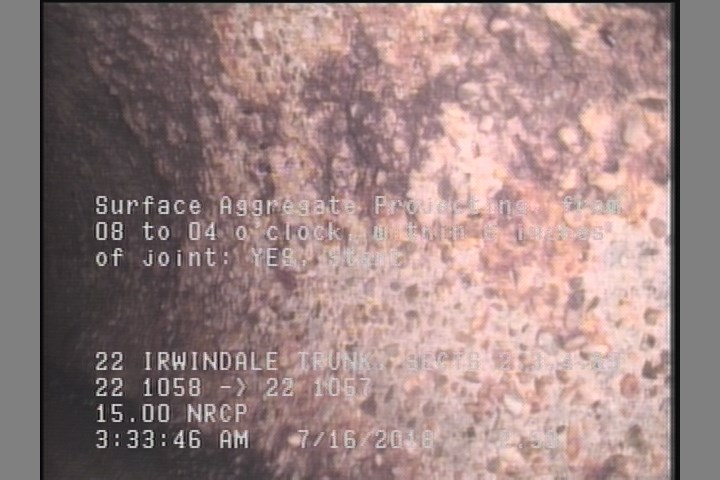

2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

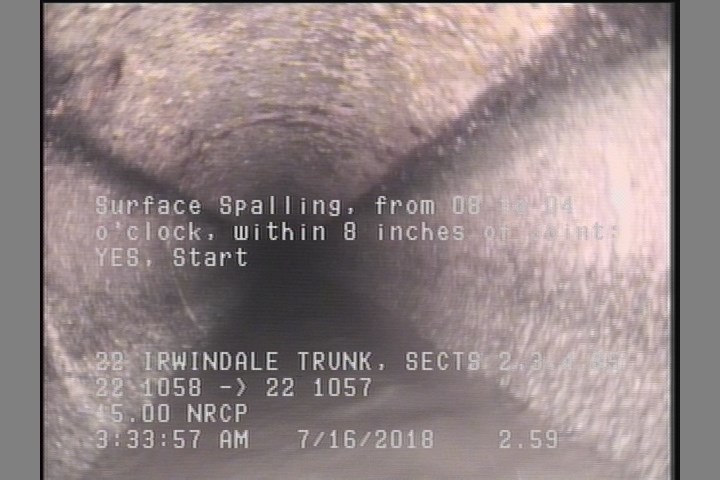

2.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 270.6 | AMH | 22 1057 |
| 2.6 | SAP | — |
| 2.6 | SSS | — |
| 0 | MWM | — |
| 270.5 | SAP | — |
| 0 | MWL | — |
| 0 | AMH | 22 1058 |
| 270.5 | SSS | — |
Properties (4)
- additional_info
- SC359685
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-16T03:31:52-07:00
