Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 16, 2018, 09:05 AM

  • 22 1063_22 1062 _16072018_021946.mp4

Date
07/16/2018
W/O
711997
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00812
PipeID
P17434
Time
2:05 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5775
Sewer Name
22 IRWINDALE TRUNK, SECTS 2,3,4,&5
City
IRWINDALE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
18
Purpose
Routine Assessment
Project
WO_711997_TV22043_JUL2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 1063
Downstream MH
22 1062
Dir. of Survey
Downstream
Length Surveyed
325.3 ft.
Total Length
325.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
4
O&M Quick
5722
O&M Rating
39
Overall Index
4
Overall Quick
—
Overall Rating
44
Pipe schematic from manhole 22 1063 to 22 1062
MH: 22 1063MH: 22 1062downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 22 10632.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"232.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"281.7 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start291.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish291.3 ft. DAGS - Deposits Attached Grease, 40 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start325.3 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK325.3 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish325.3 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK325.3 ft. AMH - Downstream Manhole, Survey Ends - 22 1062325.3 ft. DAGS - Deposits Attached Grease, 40 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish325.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

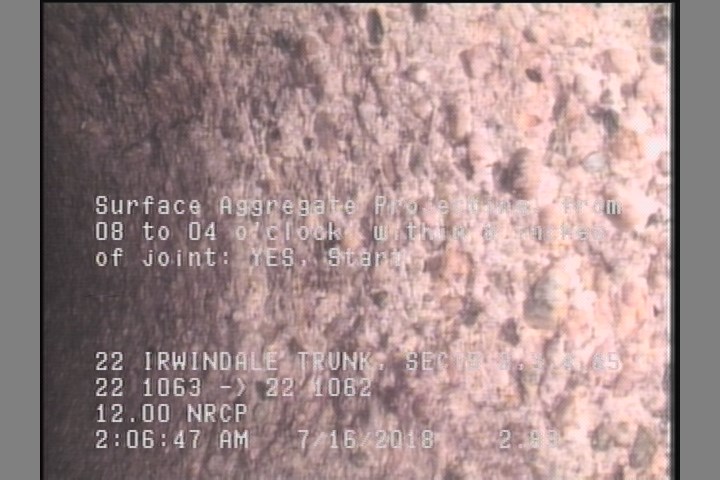

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

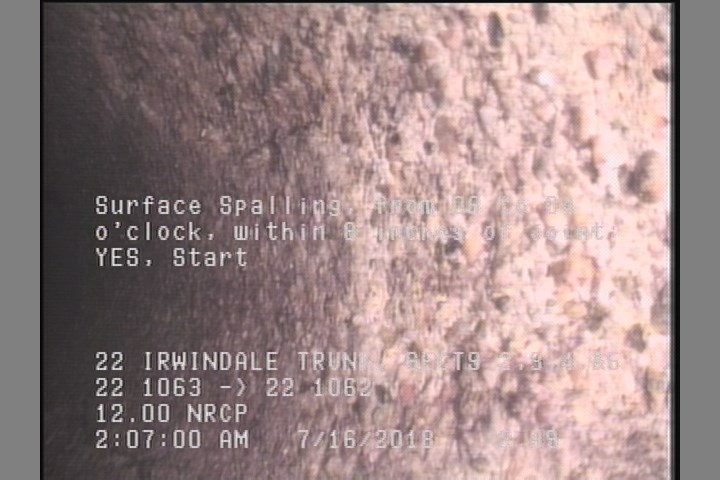

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

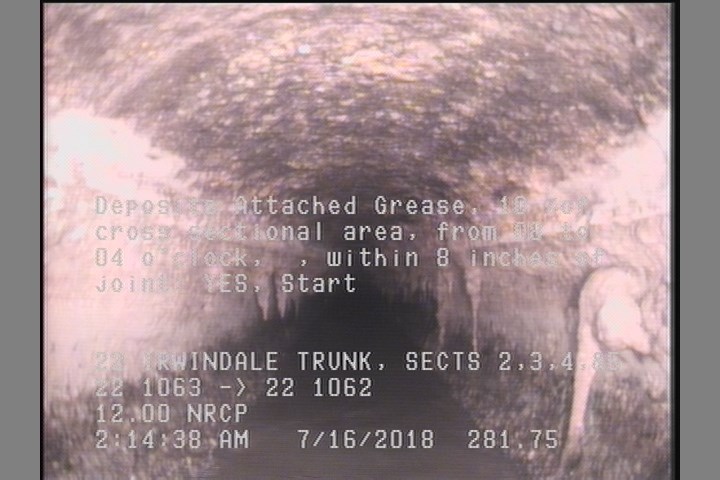

  • Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    281.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

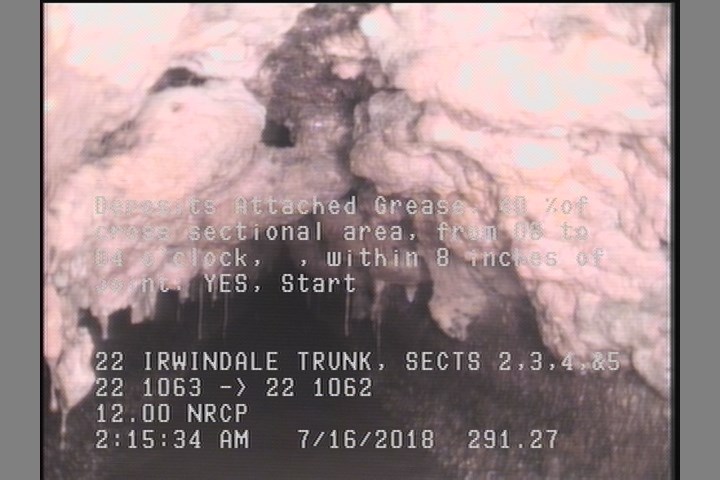

  • Deposits Attached Grease, 40 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    291.3 ft. - Deposits Attached Grease, 40 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

All inspections of P17434Work order 711997

Observations (18)

DistanceCodeObservation
0MWL—
0MWM—
2.9SAP—
291.2DAGS—
134.9TF—
325.3MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 9 O'CLOCK
325.3SAP—
50.7TF—
232.6TF—
325.3MGOCONNECTION AT MH 9 O'CLOCK
0AMH22 1063
291.3DAGS—
281.7DAGS—
325.3AMH22 1062
325.3DAGS—
325.3SSS—
2.9SSS—

Properties (4)

additional_info
SC359685
custom_field_two
2
customer
LACSD
datetime
2018-07-16T02:05:15-07:00
