Wastewater/Activity/PacpInspection/1.0Jul 16, 2018, 08:53 AM
22 1064_22 1063 _16072018_020451.mp4
- Date
- 07/16/2018
- W/O
- 711997
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00812
- PipeID
- P17435
- Time
- 1:53 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5775
- Sewer Name
- 22 IRWINDALE TRUNK, SECTS 2,3,4,&5
- City
- IRWINDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_711997_TV22043_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1064
- Downstream MH
- 22 1063
- Dir. of Survey
- Downstream
- Length Surveyed
- 290.8 ft.
- Total Length
- 290.8 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 290
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 292
Observation photos (3)

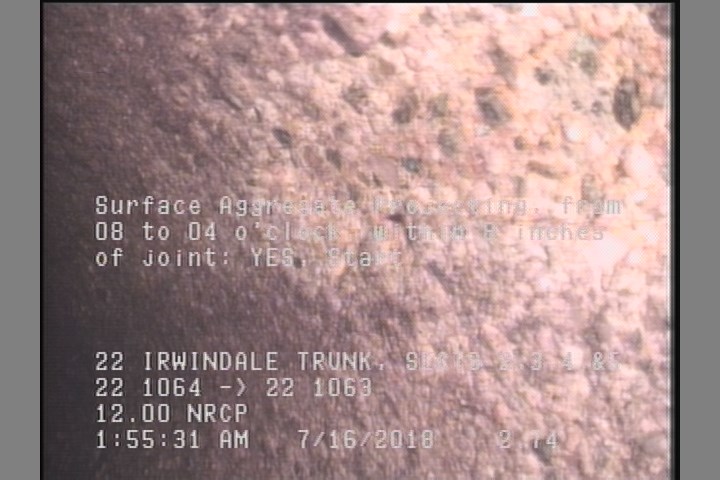

2.7 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

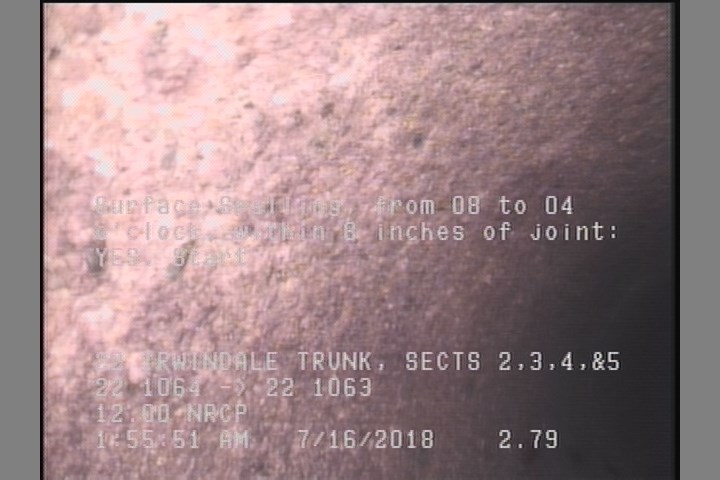

2.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

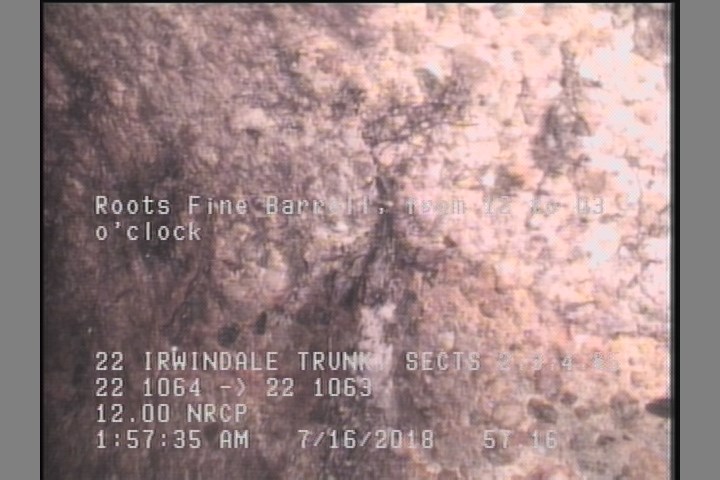

57.2 ft. - Roots Fine Barrell, from 12 to 03 o'clock
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 137 | TF | — |
| 0 | AMH | 22 1064 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 2.8 | SSS | — |
| 0 | MWM | — |
| 2.7 | SAP | — |
| 189.9 | TF | — |
| 290.8 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 290.8 | SSS | — |
| 290.8 | SAP | — |
| 57.2 | RFB | — |
| 290.8 | AMH | 22 1063 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359685
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-16T01:53:53-07:00
