Wastewater/Activity/PacpInspection/1.0Jul 17, 2018, 11:27 AM
08 0211_08 0006 _17072018_044342.mp4
- Date
- 07/17/2018
- W/O
- 711944
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00005
- PipeID
- P00081
- Time
- 4:27 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5869
- Sewer Name
- 08 EAST ROAD TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_711944_TV08113_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0211
- Downstream MH
- 08 0006
- Dir. of Survey
- Downstream
- Length Surveyed
- 364.7 ft.
- Total Length
- 364.7 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

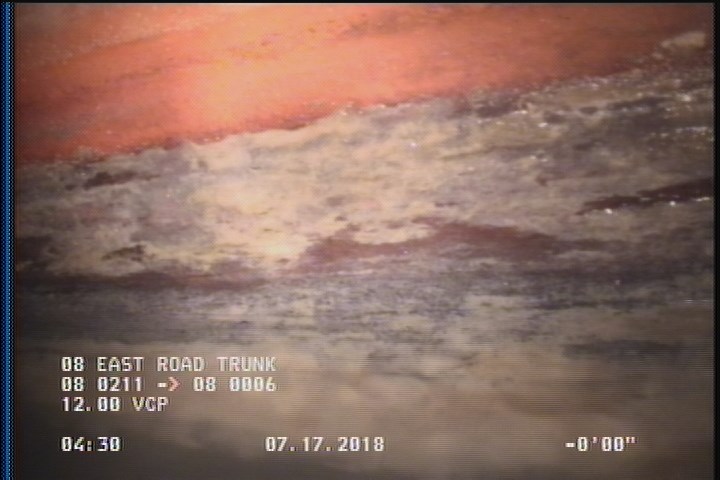

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

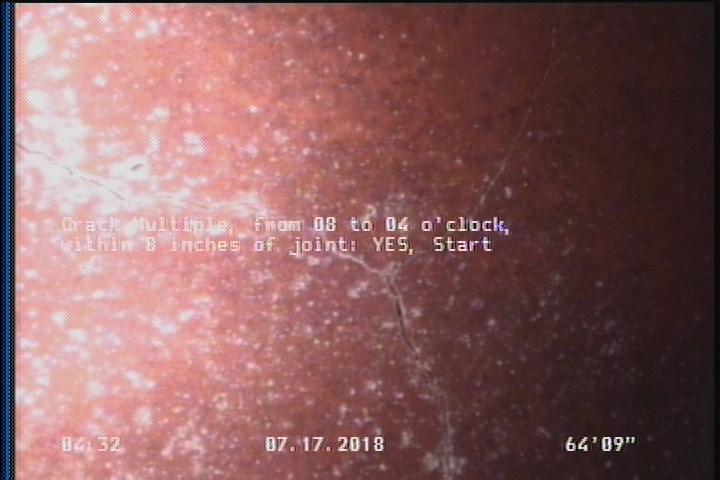

64.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

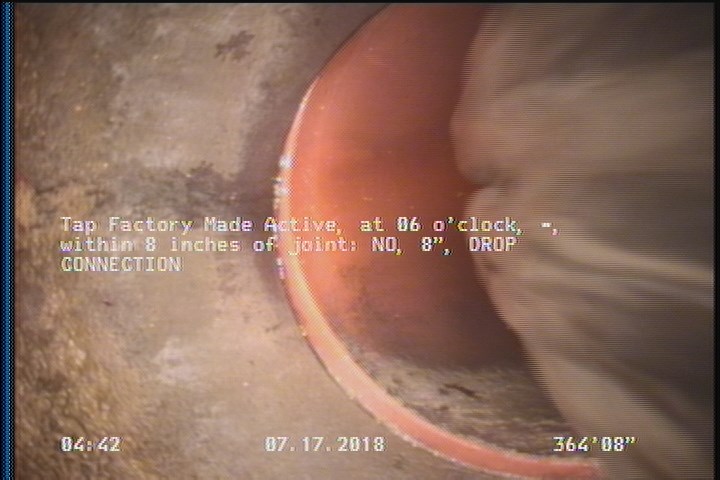

364.7 ft. - Tap Factory Made Active, at 06 o'clock, -, within 8 inches of joint: NO, 8" - DROP CONNECTION

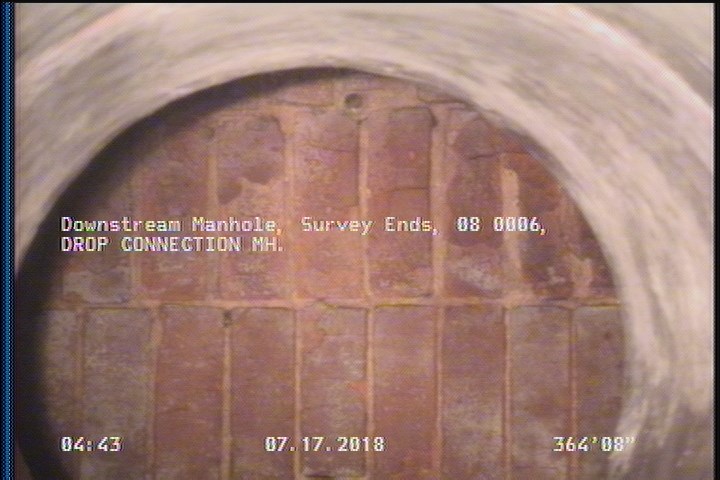

364.7 ft. - Downstream Manhole, Survey Ends - 08 0006, DROP CONNECTION MH.
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 0 | DAGS | — |
| 0 | AMH | 08 0211 |
| 0 | MWL | — |
| 64.8 | CM | — |
| 364.7 | TFA | DROP CONNECTION |
| 364.7 | CM | — |
| 364.7 | AMH | 08 0006, DROP CONNECTION MH. |
| 239 | TFA | — |
| 165.2 | TFC | — |
| 0 | MWM | — |
| 10.4 | TFA | — |
| 91.5 | TFC | — |
| 364.7 | DAGS | — |
Properties (4)
- additional_info
- SC359737
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-17T04:27:31-07:00
