Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2018, 07:37 PM

  • 18 0702_18 0701A_812018_124010.mp4

Date
08/01/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00706
PipeID
P26542
Time
12:37 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7773
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
SANTE FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
20180801DF_SO_WHITTIER_OUTFALL_TR_SECT_1_2_3_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
18 0702
Downstream MH
18 0701A
Dir. of Survey
Downstream
Length Surveyed
279 ft.
Total Length
279 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0702 to 18 0701A
MH: 18 0702MH: 18 0701Adownstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN0 ft. AMH - Upstream Manhole, Survey Begins - 12:38 PM0 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 80% MAG0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.8 ft. MGP - General Photograph7 ft. MGP - General Photograph34.6 ft. MGO - General Observation - PEELING AND FLAKING62.1 ft. MGP - General Photograph93.3 ft. MGP - General Photograph155.2 ft. MGP - General Photograph261.8 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"272.6 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 80% MAG272.6 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish272.6 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach278.5 ft. MGO - General Observation - ROACHES @ MH278.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active279 ft. AMH - Downstream Manhole, Survey Ends - 12:54 PM

Observation photos (7)

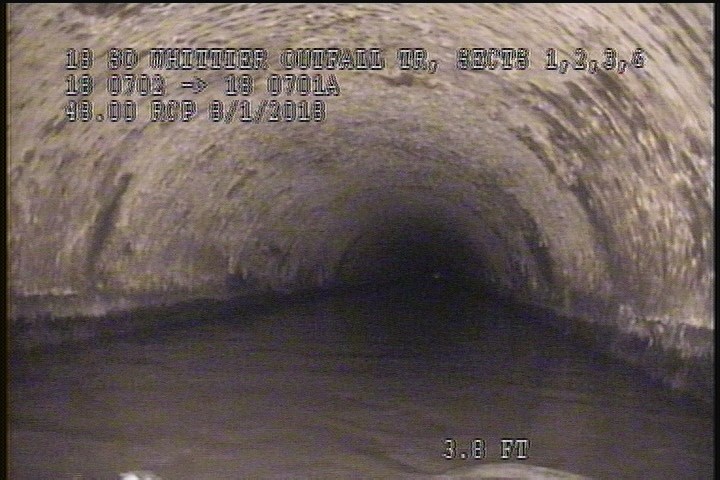

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

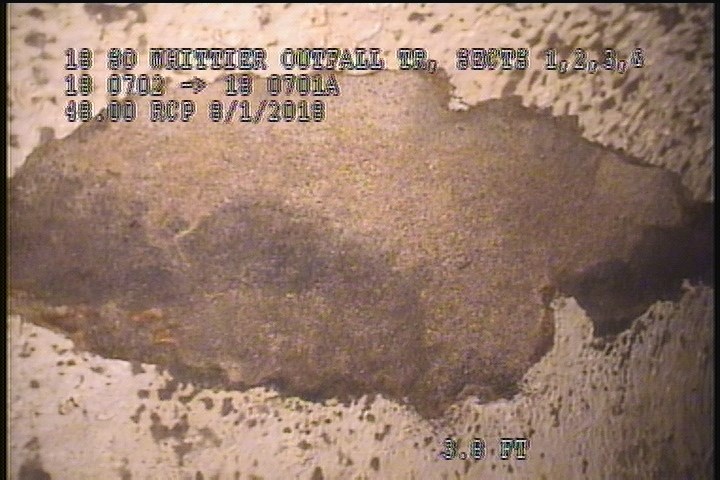

  • General Photograph

    3.8 ft. - General Photograph

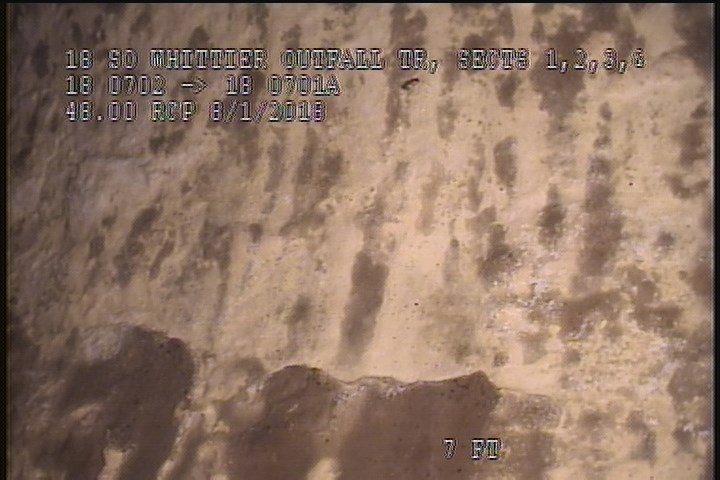

  • General Photograph

    7 ft. - General Photograph

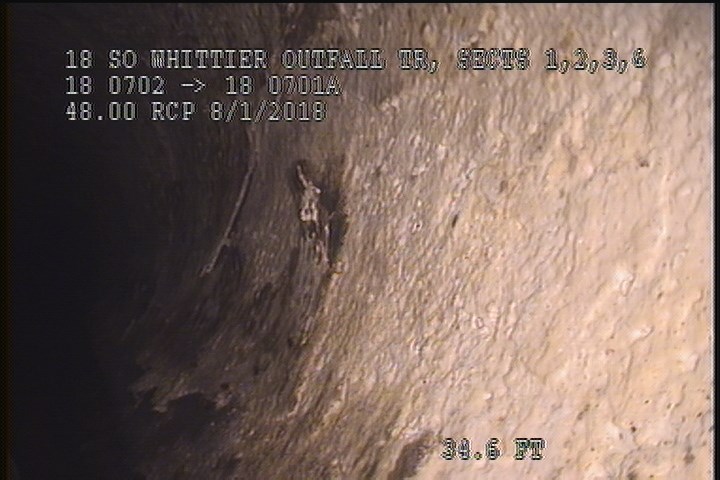

  • General Observation - PEELING AND FLAKING

    34.6 ft. - General Observation - PEELING AND FLAKING

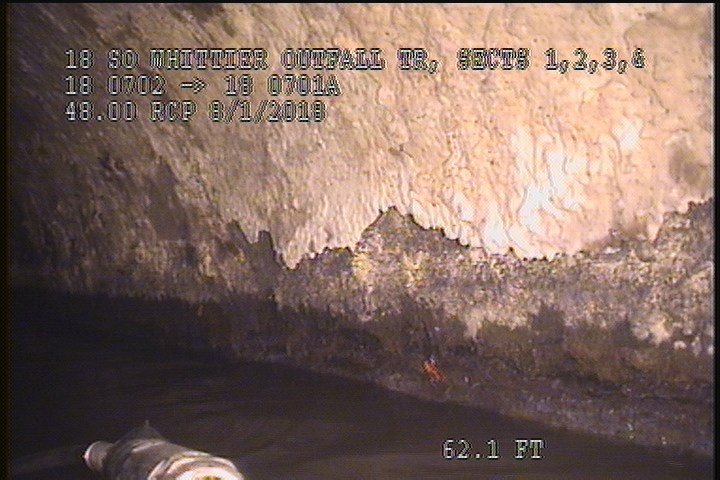

  • General Photograph

    62.1 ft. - General Photograph

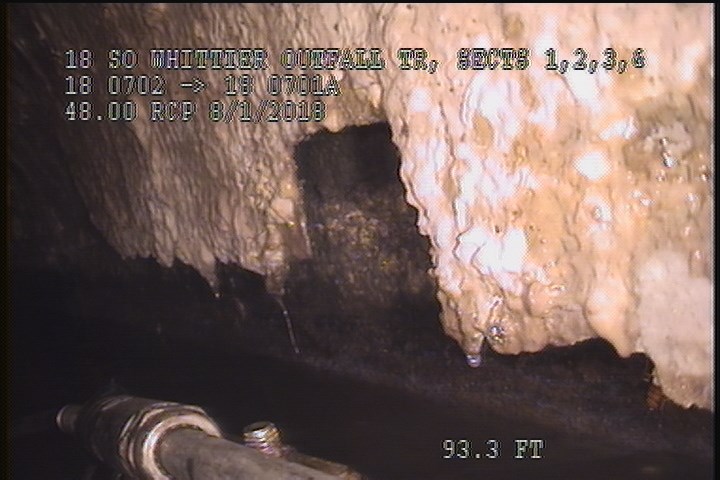

  • General Photograph

    93.3 ft. - General Photograph

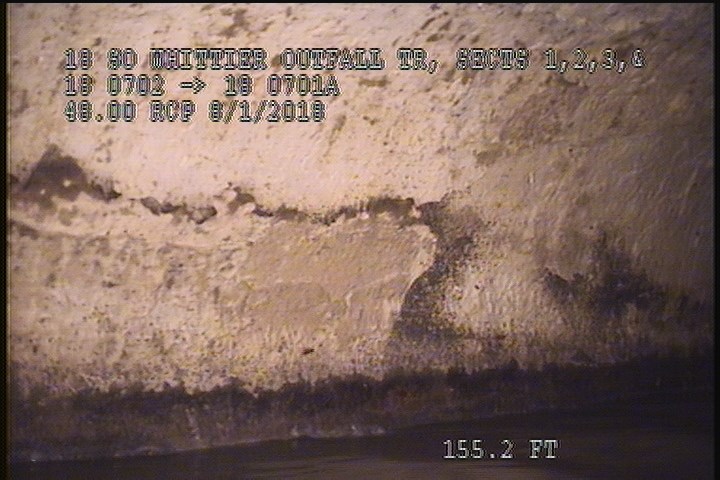

  • General Photograph

    155.2 ft. - General Photograph

All inspections of P26542Work order PENDING

Observations (20)

DistanceCodeObservation
93.3MGP—
261.8TFA—
279AMH12:54 PM
2SRV—
0MGOConn. @ Mh, 3 O' Clock. OPEN
278.5MGOROACHES @ MH
0AMH12:38 PM
7MGP—
0SZ80% MAG
0MWM—
155.2MGP—
272.6SZ80% MAG
272.6SRV—
278.5MGOConn. @ Mh, 9 O' Clock. Active
272.6MGOPeeling & Flaking Throughout The Reach
0MGOConn. @ Mh, 9 O' Clock. OPEN
62.1MGP—
34.6MGOPEELING AND FLAKING
3.8MGP—
0MWL—

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2018-08-01T12:37:44-07:00
