Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 1, 2018, 07:27 PM

  • 18 0702A_18 0702_812018_123038.mp4

Date
08/01/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00706
PipeID
P15553
Time
12:27 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7773
Sewer Name
18 SO WHITTIER OUTFALL TR, SECTS 1,2,3,&4
City
SANTE FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
30
Purpose
Routine Assessment
Project
20180801DF_SO_WHITTIER_OUTFALL_TR_SECT_1_2_3_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
48 in.
Upstream MH
18 0702A
Downstream MH
18 0702
Dir. of Survey
Downstream
Length Surveyed
87.2 ft.
Total Length
87.2 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
5
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 0702A to 18 0702
MH: 18 0702AMH: 18 0702downstream0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - ROACHES @ MH0 ft. AMH - Upstream Manhole, Survey Begins - 12:29 PM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MWM - Water Mark, 25 %of cross sectional area2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG2 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.1 ft. MGP - General Photograph82.9 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach82.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish82.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG87.2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN87.2 ft. MGO - General Observation - ROACHES @ MH87.2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN87.2 ft. AMH - Downstream Manhole, Survey Ends - 12:37 PM

Observation photos (2)

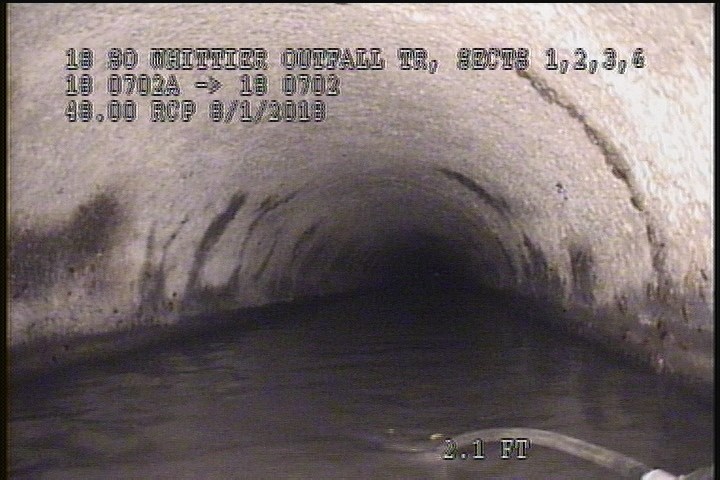

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

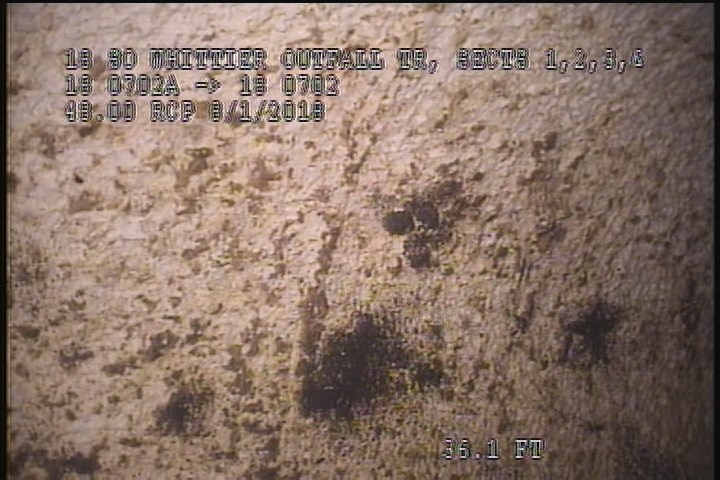

  • General Photograph

    36.1 ft. - General Photograph

All inspections of P15553Work order PENDING

Observations (16)

DistanceCodeObservation
0MGOConn. @ Mh, 9 O' Clock. Active
2SZ85% MAG
87.2MGOConn. @ Mh, 9 O' Clock. OPEN
87.2MGOROACHES @ MH
0MGOROACHES @ MH
82.9MGOPeeling & Flaking Throughout The Reach
0AMH12:29 PM
82.9SRV—
2SRV—
0MWL—
0MGOConn. @ Mh, 3 O' Clock. Active
87.2MGOConn. @ Mh, 3 O' Clock. OPEN
36.1MGP—
87.2AMH12:37 PM
82.9SZ85% MAG
0MWM—
