  • B 0069B_B 0069A_7272018_085351.mp4

Date
07/27/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00115
PipeID
P20285
Time
8:45 AM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7769
Sewer Name
B JOINT OUTFALL B - UNIT 9C
City
LONG BEACH
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
20180727SHO_JOINT_OUTFALL_B_UNIT_9C
Material
Reinforced Concrete Pipe
Shape
Circular
Height
84 in.
Upstream MH
B 0069B
Downstream MH
B 0069A
Dir. of Survey
Downstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
5
Structural Quick
5100
Structural Rating
5
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
5
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole B 0069B to B 0069A
MH: B 0069BMH: B 0069Adownstream0 ft. MWM - Water Mark, 85 %of cross sectional area0 ft. MWL - Water Level, 70 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - LOOKING AT THE DOWNLEG OF THE SIPHON2 ft. MSA - Survey Abandoned - VIEW OF THE DOWNLEG2 ft. SRC - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES - REBAR "PEELING" OFF

Observation photos (2)

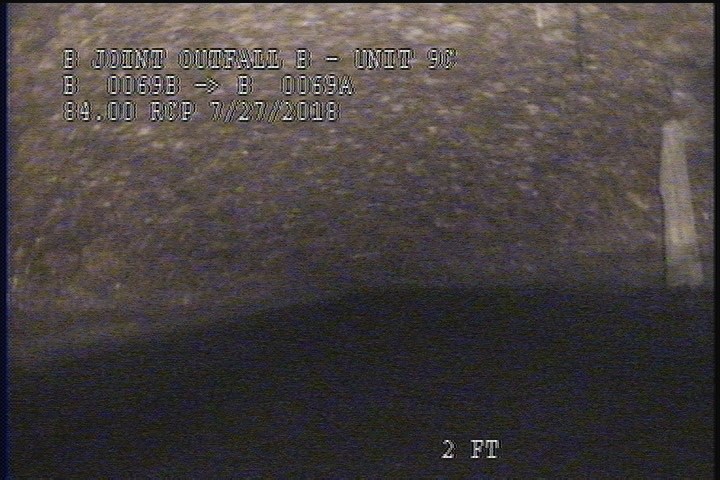

  • Survey Abandoned - VIEW OF THE DOWNLEG

    2 ft. - Survey Abandoned - VIEW OF THE DOWNLEG

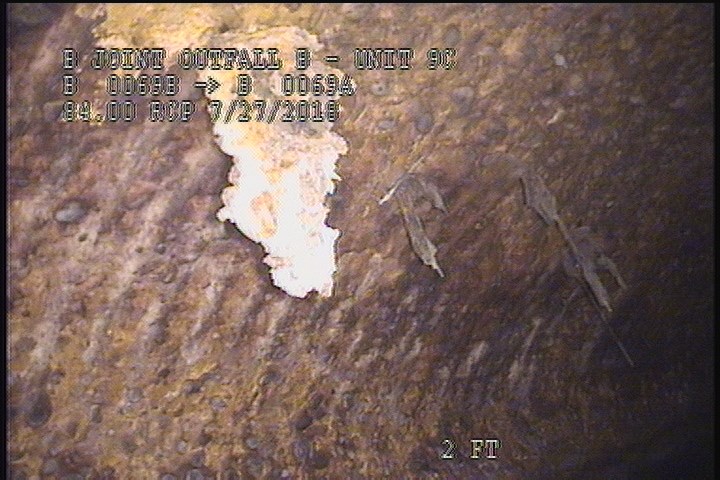

  • Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES - REBAR "PEELING" OFF

    2 ft. - Surface Reinforcement Corroded, from 09 to 03 o'clock, within 8 inches of joint: YES - REBAR "PEELING" OFF

All inspections of P20285Work order PENDING

Observations (5)

DistanceCodeObservation
0MWM—
2MSAVIEW OF THE DOWNLEG
0MWL—
0AMHLOOKING AT THE DOWNLEG OF THE SIPHON
2SRCREBAR "PEELING" OFF

Properties (5)

custom_field_three
REBAR "PEELING" OFF
custom_field_two
2
customer
LACSD
datetime
2018-07-27T08:45:52-07:00
year_laid
19920928
