Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2018, 08:58 AM

  • 21 1071_21 1070 _03012018_005836.mp4

Date
01/03/2018
W/O
679327
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00769
PipeID
P16196
Time
12:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5301
Sewer Name
21 GAREY AVENUE TRUNK
City
POMONA
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
03
Purpose
Routine Assessment
Project
WO_679327_TV21012_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
21 1070
Downstream MH
21 1071
Dir. of Survey
Upstream
Length Surveyed
398.6 ft.
Total Length
398.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3113
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 21 1070 to 21 1071
MH: 21 1070MH: 21 1071upstream0 ft. AMH - Upstream Manhole, Survey Ends - 21 107117.5 ft. RFJ - Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES41.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"50.2 ft. RFL - Roots Fine Lateral, at 02 o'clock50.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"78.1 ft. RMJ - Roots Medium Joint, from 04 to 09 o'clock, 10 %, within 8 inches of joint: YESR81.9 ft. RFJ - Roots Fine Joint, from 02 to 05 o'clock, within 8 inches of joint: YES102.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"154.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"171.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"202.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"302.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"355.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"398.7 ft. MWL - Water Level, 5 %of cross sectional area398.7 ft. AMH - Downstream Manhole, Survey Begins - 21 1170398.7 ft. MWM - Water Mark, 15 %of cross sectional area

Observation photos (3)

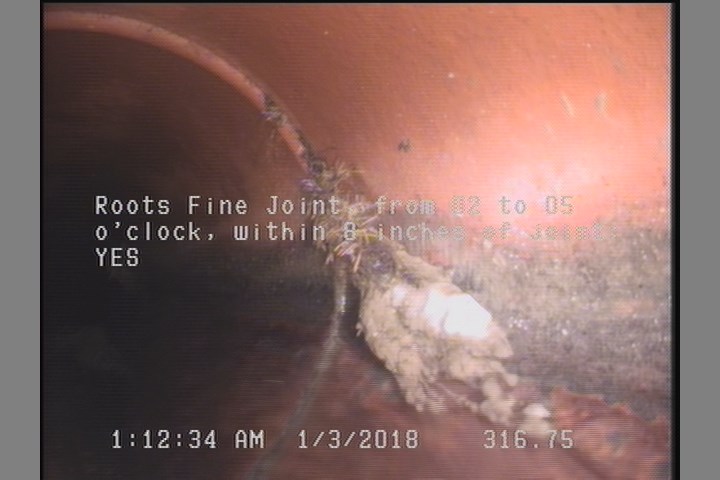

  • Roots Fine Joint, from 02 to 05 o'clock, within 8 inches of joint: YES

    316.8 ft. - Roots Fine Joint, from 02 to 05 o'clock, within 8 inches of joint: YES

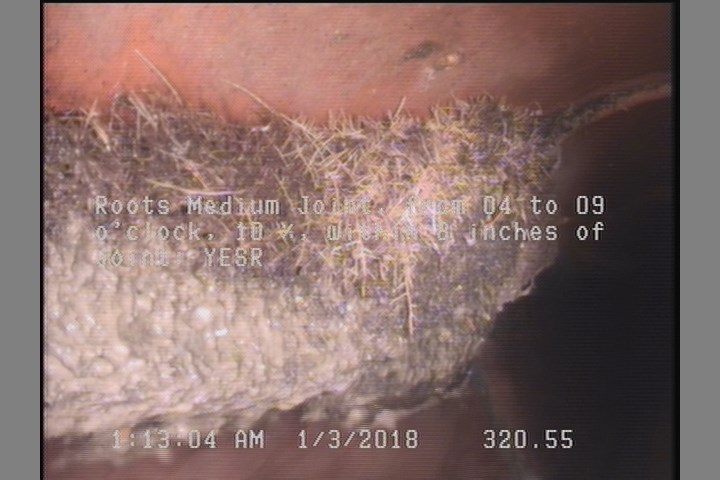

  • Roots Medium Joint, from 04 to 09 o'clock, 10 %, within 8 inches of joint: YESR

    320.6 ft. - Roots Medium Joint, from 04 to 09 o'clock, 10 %, within 8 inches of joint: YESR

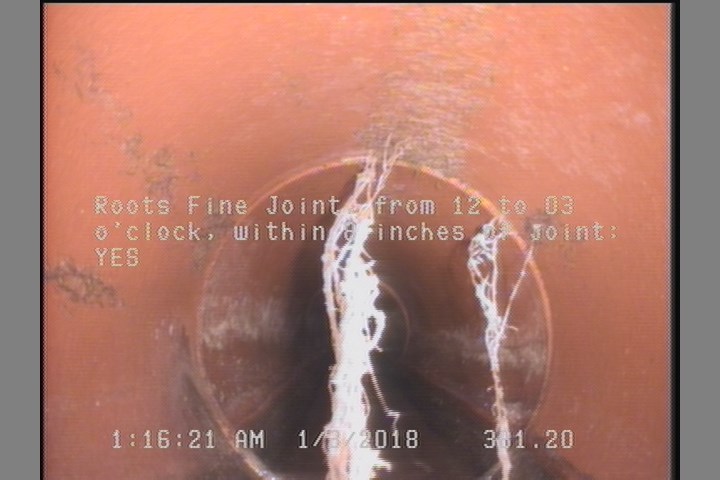

  • Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES

    381.2 ft. - Roots Fine Joint, from 12 to 03 o'clock, within 8 inches of joint: YES

All inspections of P16196Work order 679327

Observations (17)

DistanceCodeObservation
0MWL—
398.7AMH21 1071
348.5RFL—
296.4TF—
196.2TFC—
95.8TFC—
43.6TFC—
244.1TFC—
316.8RFJ—
143.9TF—
0AMH21 1170
348.5TF—
356.8TFC—
381.2RFJ—
227.6TF—
0MWM—
320.6RMJ—

Properties (4)

additional_info
SC346775
custom_field_two
4
customer
LACSD
datetime
2018-01-03T00:58:07-08:00
