Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 6, 2017, 05:59 AM

  • 02 1660_02 1659_05072017_231104.mp4

Date
07/05/2017
W/O
613355
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00289
PipeID
P18816
Time
10:59 PM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3980-SC342143
Sewer Name
02 MONTEREY PARK EXTENSION TRUNK
City
MONTEREY PARK
Loc. details
Parking Lot
Location Code
G
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
09
Purpose
Routine Assessment
Project
WO_613355_TV02105_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1659
Downstream MH
02 1660
Dir. of Survey
Upstream
Length Surveyed
189 ft.
Total Length
189 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 02 1659 to 02 1660
MH: 02 1659MH: 02 1660upstream0 ft. AMH - Downstream Manhole, Survey Ends - 02 16593.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish38 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"57.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"93.4 ft. TBC - Tap Break-In Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"114.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"136.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6"179.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"182.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start189 ft. MWL - Water Level, 15 %of cross sectional area189 ft. MWM - Water Mark, 20 %of cross sectional area189 ft. AMH - Upstream Manhole, Survey Begins - 02 1660

Observation photos (1)

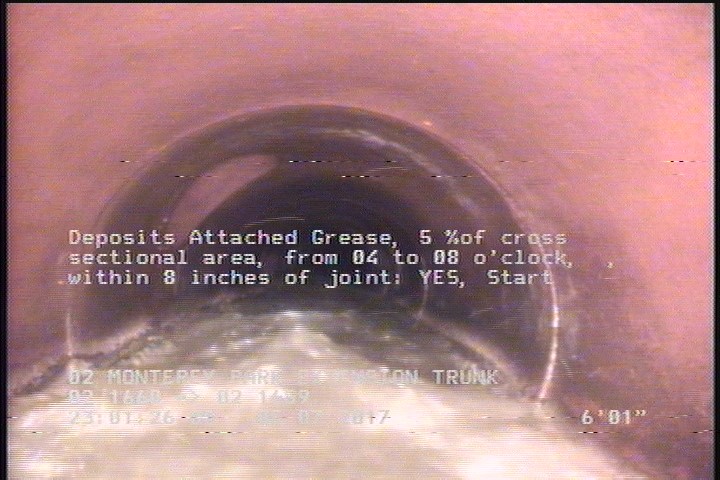

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P18816Work order 613355

Observations (12)

DistanceCodeObservation
95.6TBC—
185.5DAGS—
0MWL—
74.6TFC—
151TF—
9.7TFC—
0MWM—
189AMH02 1659
52.1TB—
0AMH02 1660
131.9TFC—
6.1DAGS—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-07-05T22:59:10-07:00
