Wastewater/Activity/PacpInspection/1.0Jun 29, 2017, 08:55 AM
02 1687_02 1686_29062017_030526.mp4
- Date
- 06/29/2017
- W/O
- 613355
- Weather
- Dry
- Operator/Surveyor
- M.MARTINRZ
- Sewer ID
- Z00289
- PipeID
- P18844
- Time
- 1:55 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3977-SC342140
- Sewer Name
- 02 MONTEREY PARK EXTENSION TRUNK
- City
- MONTEREY PARK
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_613355_TV02105_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 1687
- Downstream MH
- 02 1686
- Dir. of Survey
- Downstream
- Length Surveyed
- 139 ft.
- Total Length
- 139 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 422D
- O&M Rating
- 62
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 62
Observation photos (2)

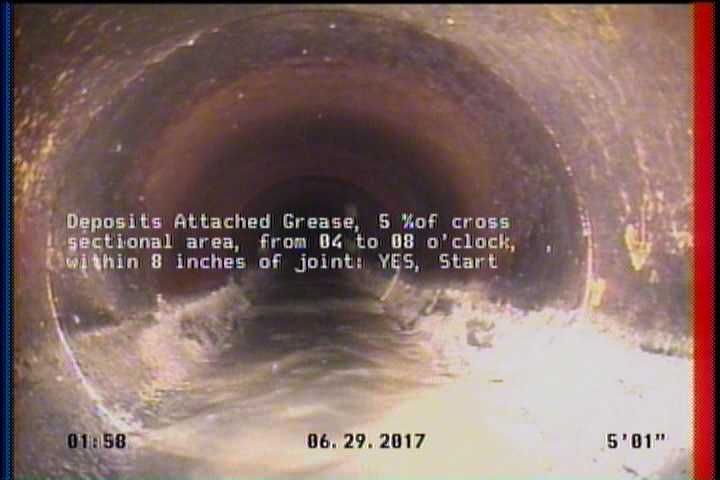

5.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

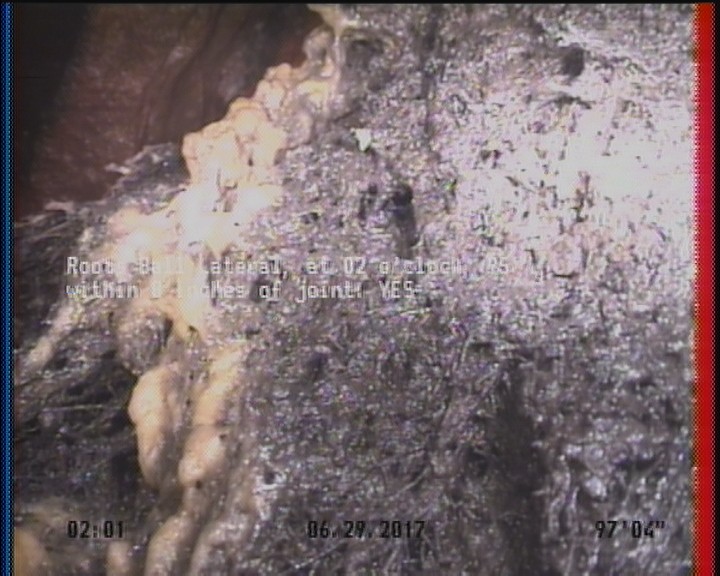

97.3 ft. - Roots Ball Lateral, at 02 o'clock, 95 %, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 139 | AMH | 02 1686 |
| 97.3 | RTC | — |
| 97.3 | RBL | — |
| 5.1 | TB | — |
| 137.5 | DAGS | — |
| 0 | AMH | 02 1687 |
| 97.3 | TB | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 5.1 | DAGS | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-29T01:55:51-07:00
