  • B 0728_B 0727 _10072018_231314.mp4

Date
07/10/2018
W/O
712477
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00111
PipeID
P09192
Time
11:01 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5770
Sewer Name
B JOINT OUTFALL B - UNIT 8H
City
DUARTE
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
02
Purpose
Routine Assessment
Project
WO_712477_TV22165_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
B 0728
Downstream MH
B 0727
Dir. of Survey
Downstream
Length Surveyed
288.7 ft.
Total Length
288.7 ft.
Structural Index
3
Structural Quick
443I
Structural Rating
172
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
173
Pipe schematic from manhole B 0728 to B 0727
MH: B 0728MH: B 0727downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - B 07280 ft. MGO - General Observation - CAPPED LATERAL 3 O'CLOCK @ MH0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area6.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start48.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES95.5 ft. FM - Fracture Multiple, from 05 to 08 o'clock, within 8 inches of joint: YES226.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"254 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES260.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start260.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish276.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish288.7 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK288.7 ft. AMH - Downstream Manhole, Survey Ends - B 0727

Observation photos (4)

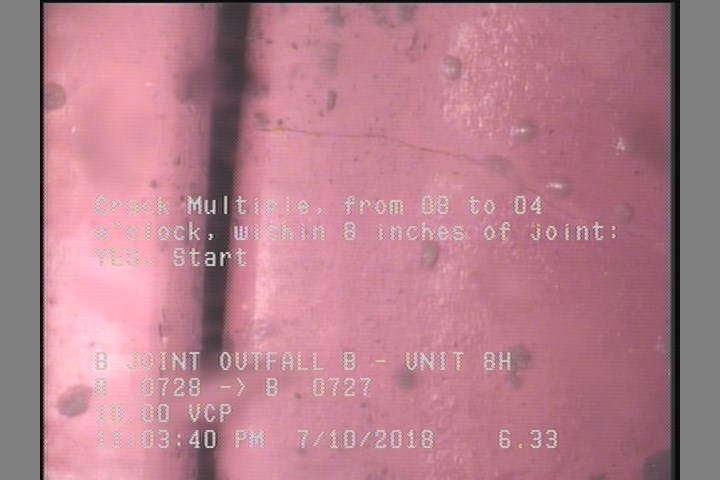

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

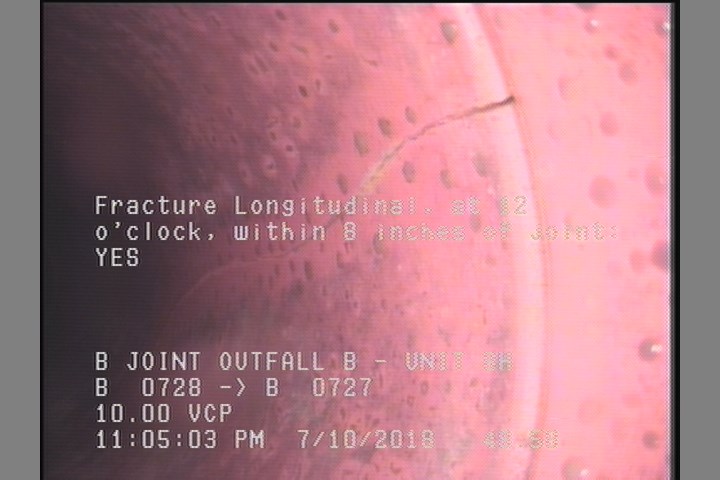

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    48.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

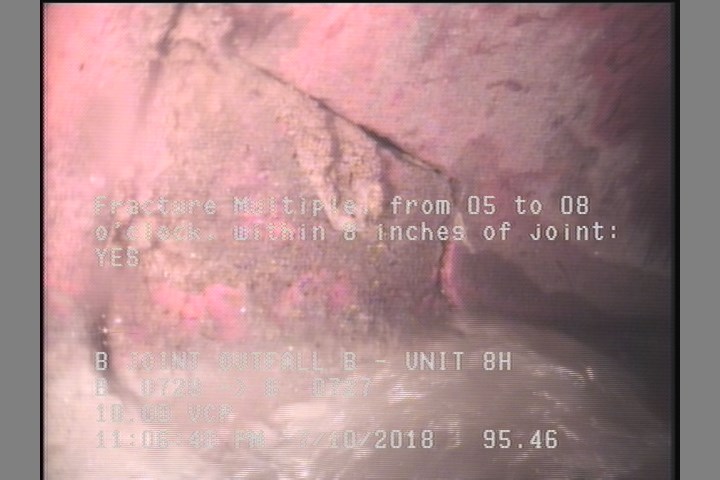

  • Fracture Multiple, from 05 to 08 o'clock, within 8 inches of joint: YES

    95.5 ft. - Fracture Multiple, from 05 to 08 o'clock, within 8 inches of joint: YES

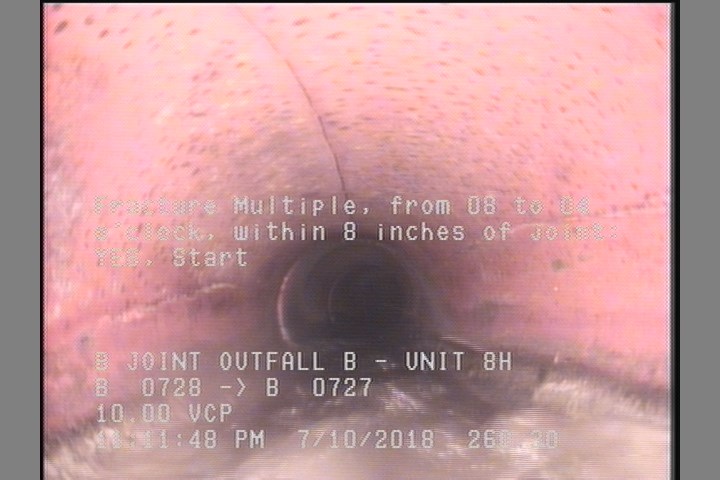

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    260.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P09192Work order 712477

Observations (15)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK
276.1FM—
95.5FM—
6.3CM—
254RFJ—
0AMHB 0728
0MGOCAPPED LATERAL 3 O'CLOCK @ MH
226.1TFC—
0MWL—
48.6FL—
260.2FM—
0MWM—
288.7MGOCONNECTION AT MH 3 O'CLOCK
260.2CM—
288.7AMHB 0727

Properties (4)

additional_info
SC359679
custom_field_two
3
customer
LACSD
datetime
2018-07-10T23:01:39-07:00
