Wastewater/Activity/PacpInspection/1.0Jul 10, 2018, 05:41 AM
H 0375_H 0342_09072018_231951.mp4
- Date
- 07/09/2018
- W/O
- 712466
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00177
- PipeID
- P10804
- Time
- 10:41 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5768
- Sewer Name
- H JOINT OUTFALL H - UNIT 5A
- City
- PICO RIVERA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 06
- Purpose
- Routine Assessment
- Project
- WO_712466_TV15225_JUL2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 66 in.
- Width
- 66 in.
- Upstream MH
- H 0375
- Downstream MH
- H 0342
- Dir. of Survey
- Downstream
- Length Surveyed
- 964.3 ft.
- Total Length
- 964.3 ft.
- Structural Index
- 3
- Structural Quick
- 513e
- Structural Rating
- 575
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 575
Observation photos (4)

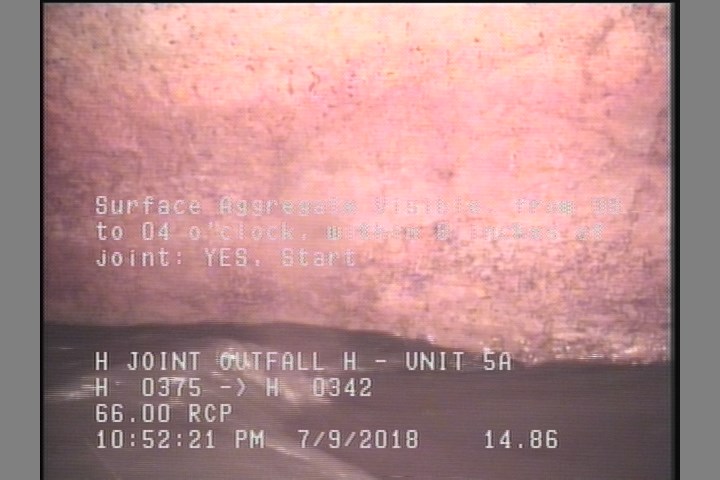

14.9 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

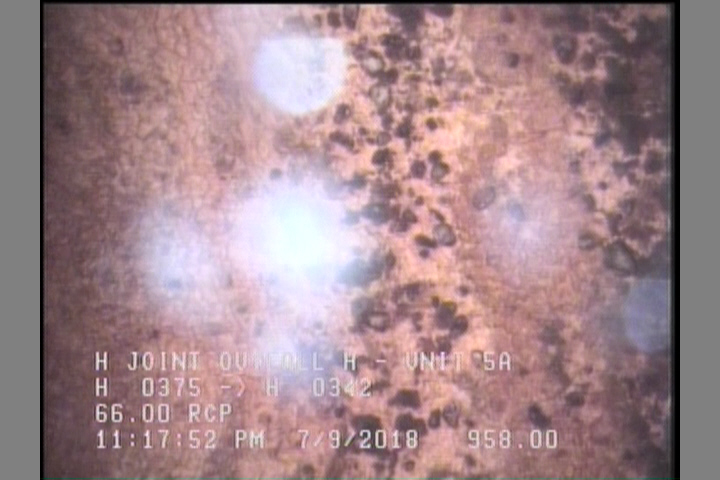

958 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

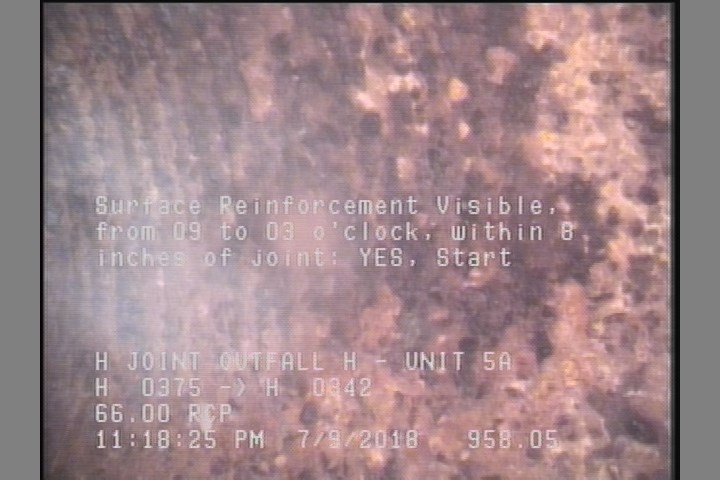

958.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

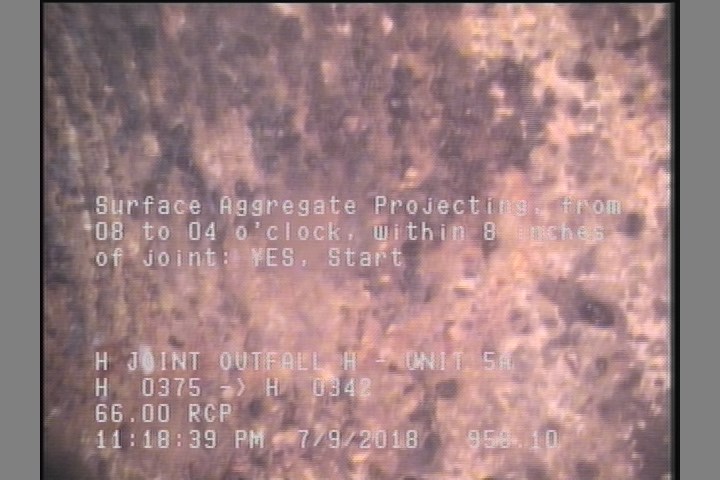

958.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 14.9 | SAV | — |
| 964.3 | AMH | H 0342 |
| 964.3 | SRV | — |
| 919.2 | TF | — |
| 958 | SAV | — |
| 4.3 | MGO | MAG COAT |
| 0 | MWL | — |
| 964.3 | SAP | — |
| 958.1 | SRV | — |
| 958.1 | SAP | — |
| 0 | AMH | H 0375 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC359677
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-09T22:41:27-07:00
- year_laid
- 38626
