Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 05:45 PM
16 0002_B 1099_7252018_105142.mp4
- Date
- 07/25/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z01124
- PipeID
- P13725
- Time
- 10:45 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7767
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- 20180725SHO_JOINT_OUTFALL_B_UNIT_6G
- Material
- NRCP
- Shape
- Circular
- Height
- 36 in.
- Upstream MH
- 16 0002
- Downstream MH
- B 1099
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

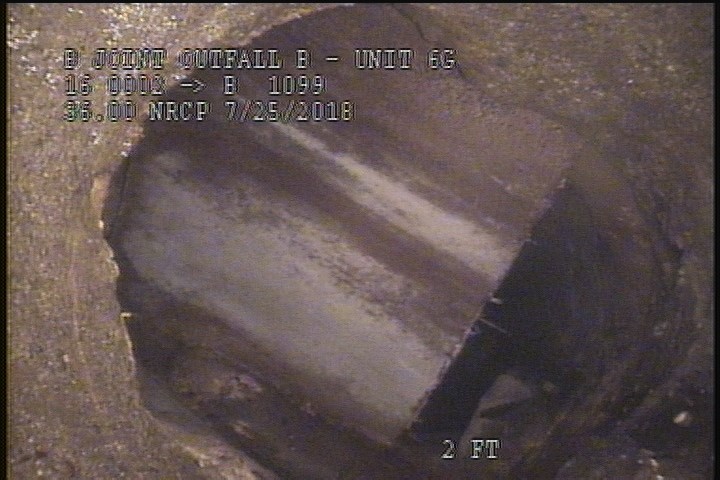

2 ft. - Downstream Manhole, Survey Ends - LOOKING @ THE D/S MH

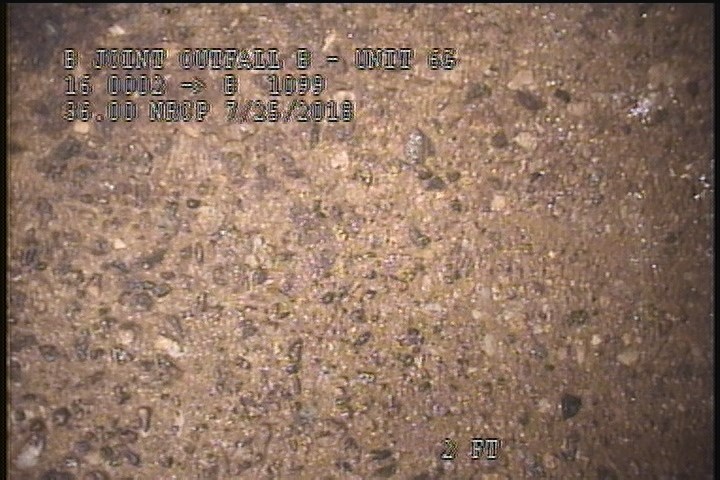

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | DRY LINE |
| 2 | AMH | LOOKING @ THE D/S MH |
| 2 | SAV | — |
| 2 | VC | — |
| 0 | AMH | MH 0002 |
Properties (4)
- custom_field_three
- VISIBLE AGGREGATE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-25T10:45:07-07:00
