Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 09:41 AM

  • Section#3_G 0156_G 0155__7232018__ I0037.mp4

Date
07/23/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00837
Time
2:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0038
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180723MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0156
Downstream MH
G 0155
Dir. of Survey
Downstream
Length Surveyed
48.9 ft.
Total Length
48.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2900
O&M Rating
18
Overall Index
2
Overall Quick
—
Overall Rating
18
Pipe schematic from manhole G 0156 to G 0155
MH: G 0156MH: G 0155downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:00AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft.2 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - MAG COAT 98% START 8:00 TO 4:002 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT16.6 ft. MGO - General Observation - MAG COAT 100% STARET48.4 ft. MGO - General Observation - MAG COAT 100% FINISH48.4 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish48.4 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT48.4 ft. MGO - General Observation - MH CONN ACTIVE 9:0048.9 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM

Observation photos (4)

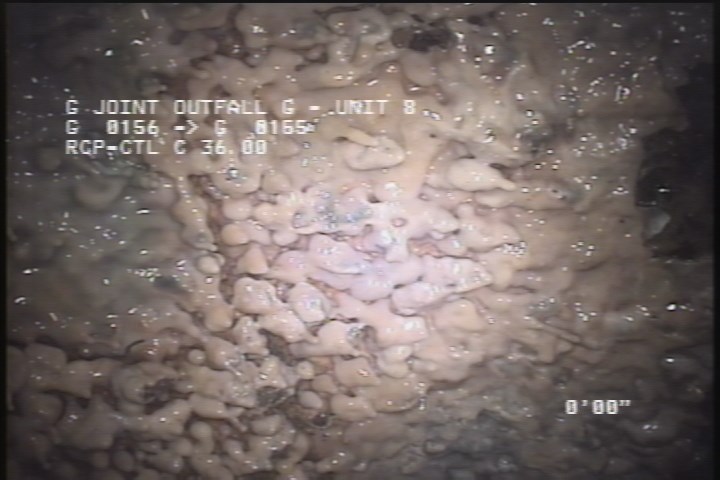

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

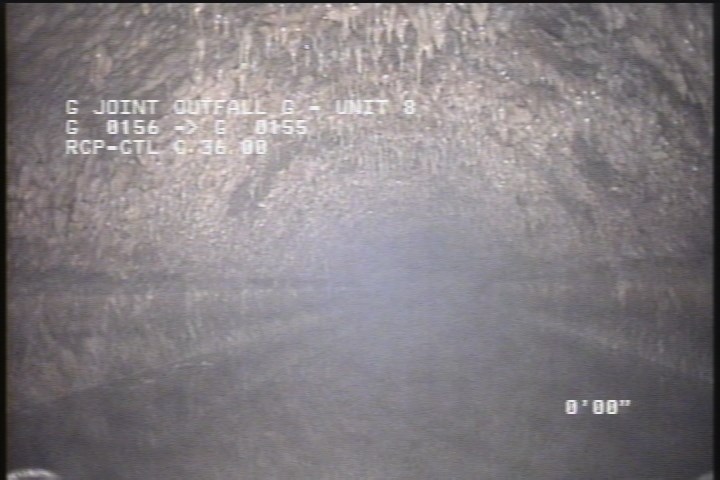

  • General Observation - MAG COAT 98% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 98% START 8:00 TO 4:00

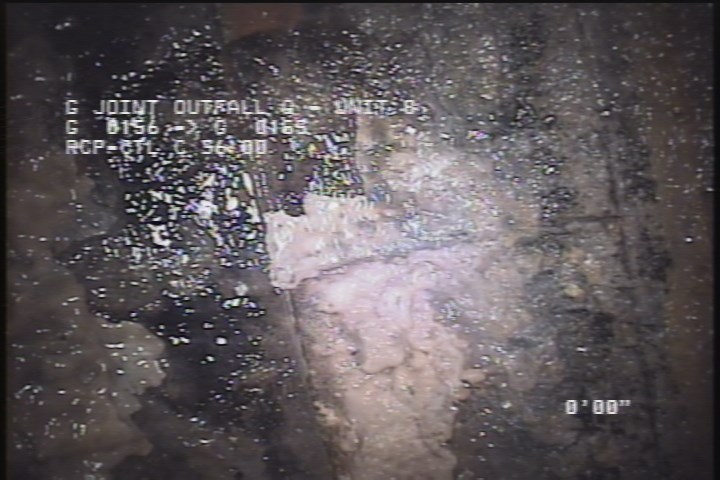

  • General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

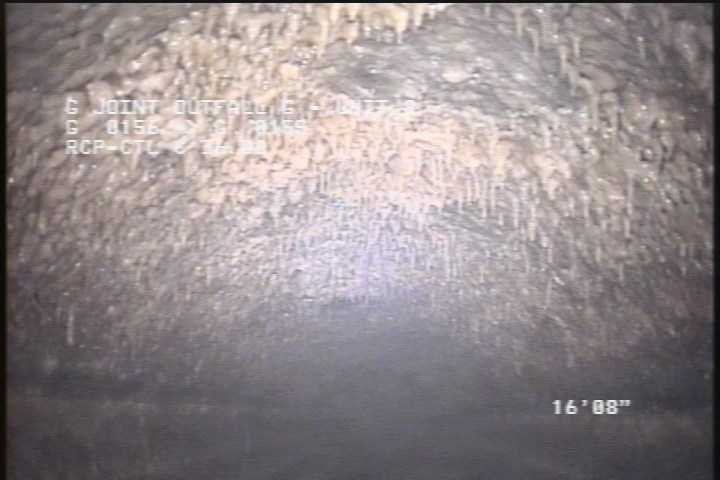

  • General Observation - MAG COAT 100% STARET

    16.6 ft. - General Observation - MAG COAT 100% STARET

All inspections of P00837Work order 0711987

Observations (13)

DistanceCodeObservation
0AMH4:00AM
2DAGS—
2MGOMAG COAT 98% START 8:00 TO 4:00
0MWM—
16.6MGOMAG COAT 100% STARET
0MWL—
48.4MGOMAG COAT 100% FINISH
48.4DAGS—
0——
48.9AMH4:15AM
48.4MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
2MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
48.4MGOMH CONN ACTIVE 9:00

Properties (4)

custom_field_three
TILES 100% IN PLACE UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-23T02:41:56-07:00
