Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 02:06 PM

  • 05 1196_05 1195_7242018_070953.mp4

Date
07/24/2018
W/O
0717904
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00514
PipeID
P06436
Time
7:06 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7765
Sewer Name
05 ROSECRANS AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20180723DF_ROSECRANS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
7.480000019073486 in.
Upstream MH
05 1196
Downstream MH
05 1195
Dir. of Survey
Downstream
Length Surveyed
152.6 ft.
Total Length
152.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1196 to 05 1195
MH: 05 1196MH: 05 1195downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. UNKNOWN0 ft. MGO - General Observation - ROACHES @ MH0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 7:07 AM2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% LINER2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.1 ft. MGP - General Photograph64.1 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 60% GREASE/LATERAL121.8 ft. MGP - General Photograph126.9 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 50% GREASE/LATERAL146.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish146.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% LINER147.3 ft. MGO - General Observation - SHELF @ 3 O'CLOCK148.3 ft. MGO - General Observation - SHELF @ 9 O'CLOCK152.6 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. UNKNOWN152.6 ft. AMH - Downstream Manhole, Survey Ends - 7:31 AM

Observation photos (7)

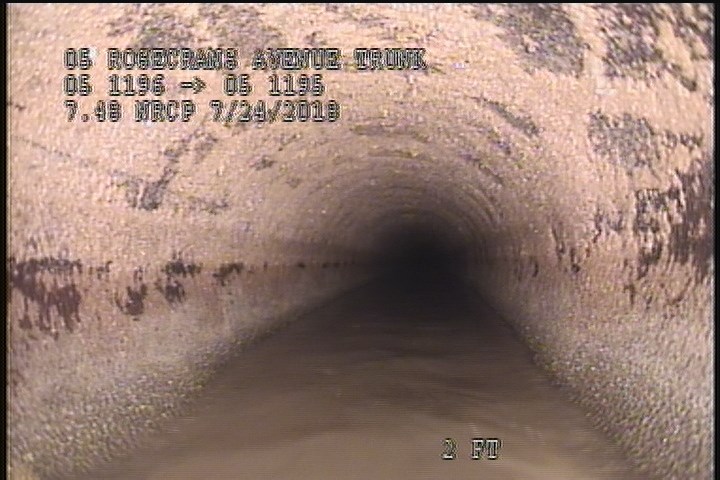

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% LINER

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% LINER

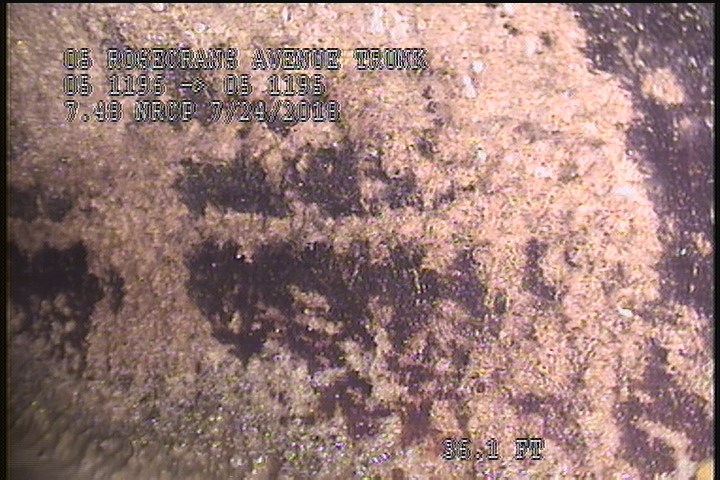

  • General Photograph

    36.1 ft. - General Photograph

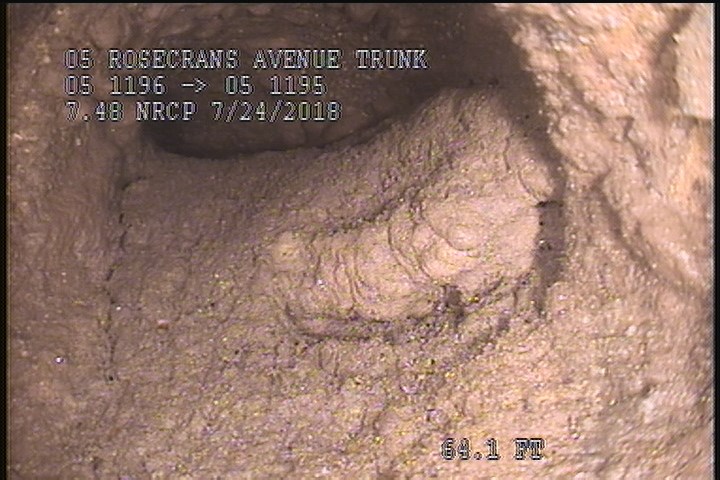

  • Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 60% GREASE/LATERAL

    64.1 ft. - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 60% GREASE/LATERAL

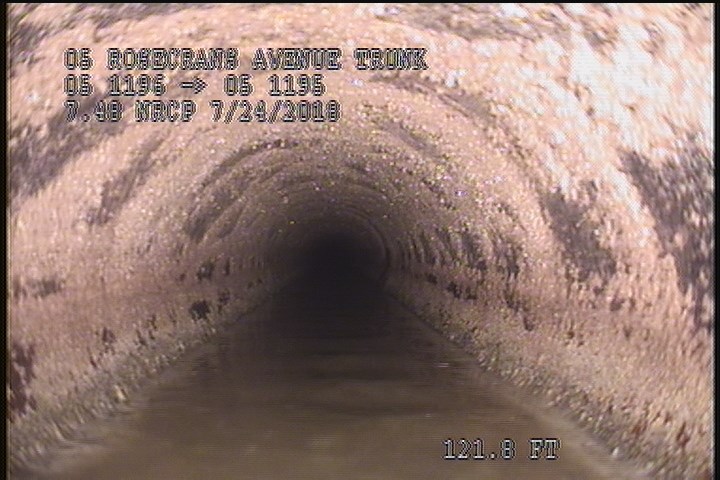

  • General Photograph

    121.8 ft. - General Photograph

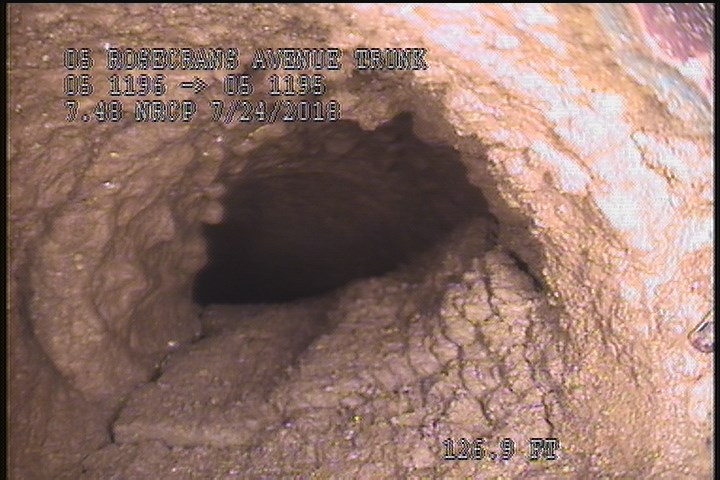

  • Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 50% GREASE/LATERAL

    126.9 ft. - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - 50% GREASE/LATERAL

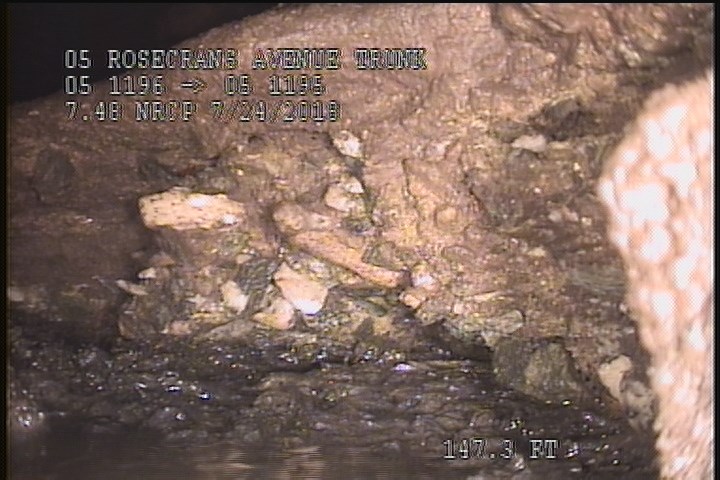

  • General Observation - SHELF @ 3 O'CLOCK

    147.3 ft. - General Observation - SHELF @ 3 O'CLOCK

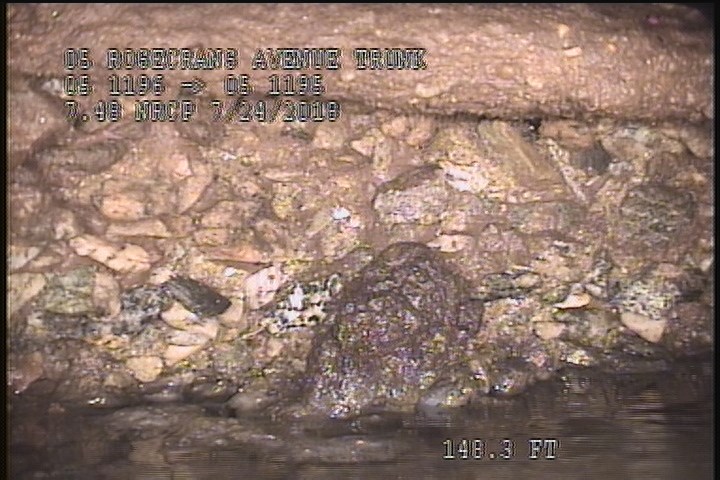

  • General Observation - SHELF @ 9 O'CLOCK

    148.3 ft. - General Observation - SHELF @ 9 O'CLOCK

All inspections of P06436Work order 0717904

Observations (17)

DistanceCodeObservation
0MWM—
121.8MGP—
148.3MGOSHELF @ 9 O'CLOCK
152.6MGOConn. @ Mh, 3 O' Clock. UNKNOWN
146.5SSS—
126.9TFD50% GREASE/LATERAL
2SZ75% LINER
152.6AMH7:31 AM
0MGOConn. @ Mh, 3 O' Clock. UNKNOWN
147.3MGOSHELF @ 3 O'CLOCK
64.1TFD60% GREASE/LATERAL
146.5SZ75% LINER
36.1MGP—
0MGOROACHES @ MH
0MWL—
2SSS—
0AMH7:07 AM

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-24T07:06:58-07:00
