Wastewater/Activity/PacpInspection/1.0Jul 24, 2018, 03:42 PM
05 1195_05 1194_7242018_085122.mp4
- Date
- 07/24/2018
- W/O
- 0717904
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00514
- PipeID
- P06435
- Time
- 8:42 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7765
- Sewer Name
- 05 ROSECRANS AVENUE TRUNK
- City
- HAWTHORNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20180723DF_ROSECRANS_AVENUE_TRUNK
- Material
- NRCP
- Shape
- Circular
- Height
- 7.480000019073486 in.
- Upstream MH
- 05 1194
- Downstream MH
- 05 1195
- Dir. of Survey
- Upstream
- Length Surveyed
- 158 ft.
- Total Length
- 158 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (6)

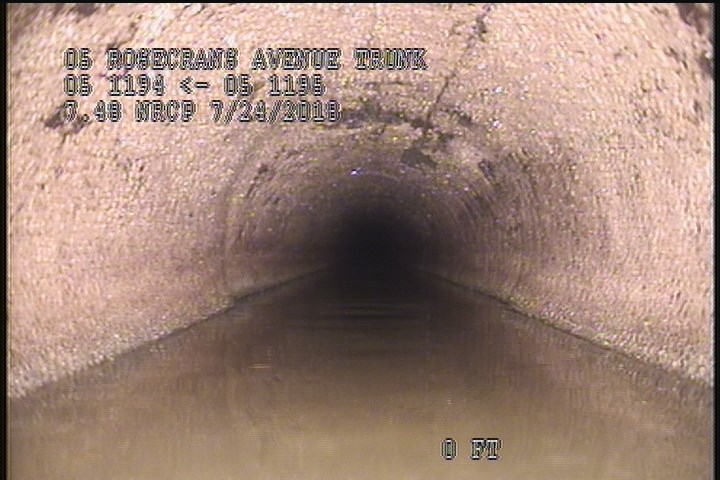

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

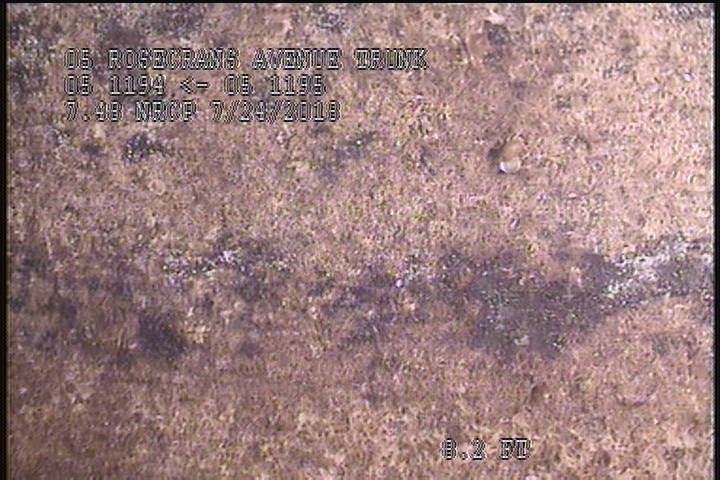

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% LINER

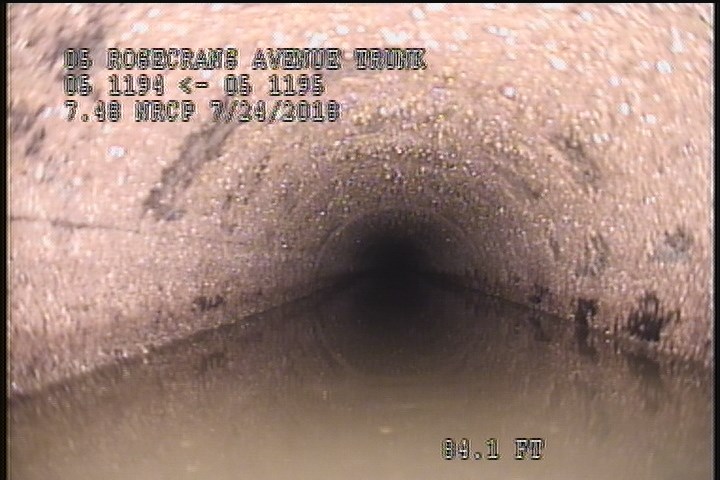

84.1 ft. - General Photograph

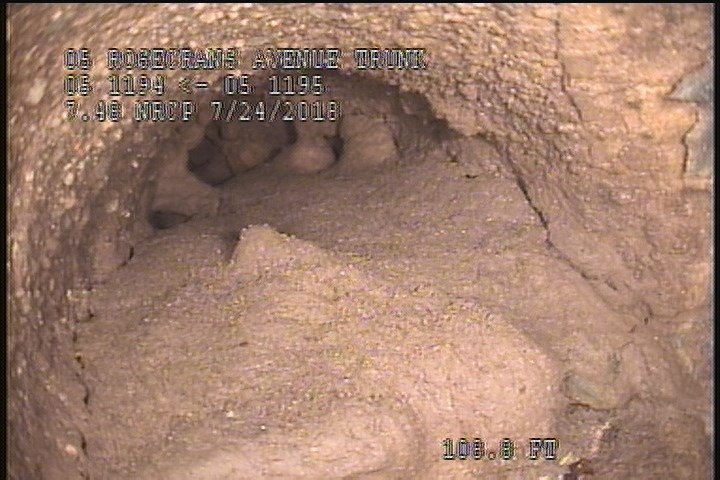

108.8 ft. - Tap Factory Made Defective, at 09 o'clock, -, within 8 inches of joint: YES, 4" - 95% GREASE/LATERAL

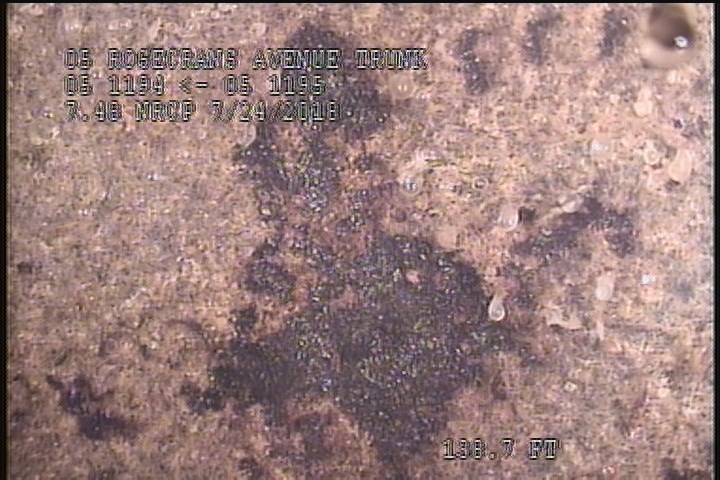

138.7 ft. - General Photograph

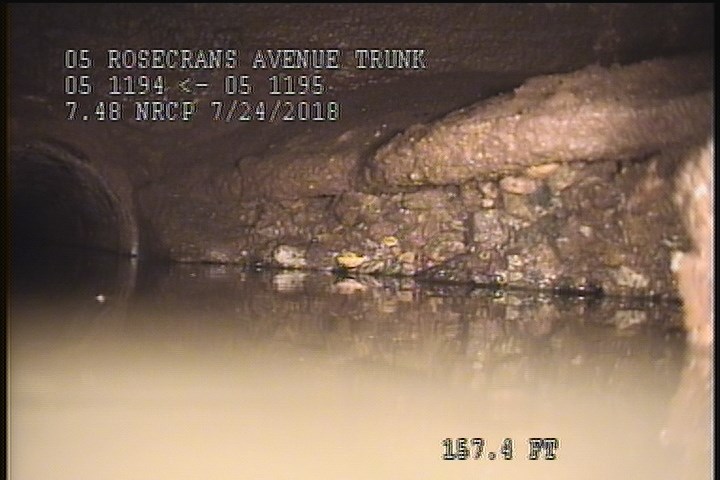

157.4 ft. - General Photograph - SHELF/AGGREGATE
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 156 | SZ | 75% LINER |
| 156 | SSS | — |
| 0 | AMH | 8:44 AM |
| 0 | MWM | — |
| 2 | SSS | — |
| 108.8 | TFD | 95% GREASE/LATERAL |
| 138.7 | MGP | — |
| 2 | SZ | 75% LINER |
| 84.1 | MGP | — |
| 158 | MGO | Grease Throughout The Reach (5%) |
| 157.4 | MGP | SHELF/AGGREGATE |
| 158 | AMH | 9:11 AM |
| 157.4 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 38.4 | TF | Open |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-24T08:42:52-07:00
