Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 05:55 PM

  • 05 1200_05 1199_7232018_105800.mp4

Date
07/23/2018
W/O
0717904
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00514
PipeID
P06440
Time
10:55 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7764
Sewer Name
05 ROSECRANS AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20180723DF_ROSECRANS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
7.480000019073486 in.
Upstream MH
05 1200
Downstream MH
05 1199
Dir. of Survey
Downstream
Length Surveyed
281.9 ft.
Total Length
281.9 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1200 to 05 1199
MH: 05 1200MH: 05 1199downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 10:56 AM0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% LINER37.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"94.6 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/60% GREASE/LATERAL102.4 ft. MGP - General Photograph142.6 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"193.2 ft. TFD - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/65% GREASE/LATERAL228.2 ft. MGP - General Photograph243.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"278.5 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% LINER278.5 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish281.8 ft. MGO - General Observation - Grease Throughout The Reach (5%)281.9 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. SNUB281.9 ft. AMH - Downstream Manhole, Survey Ends - 11:26 AM

Observation photos (6)

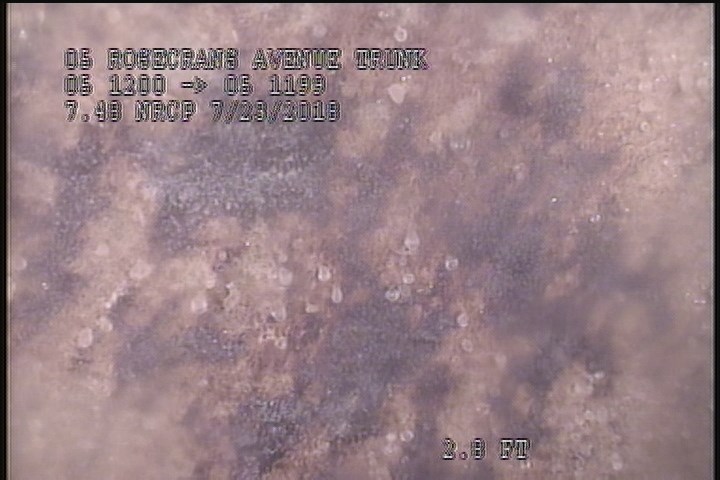

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

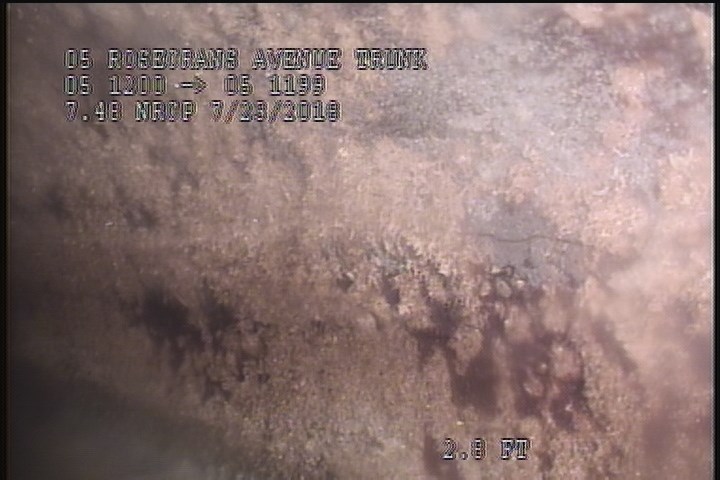

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% LINER

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 70% LINER

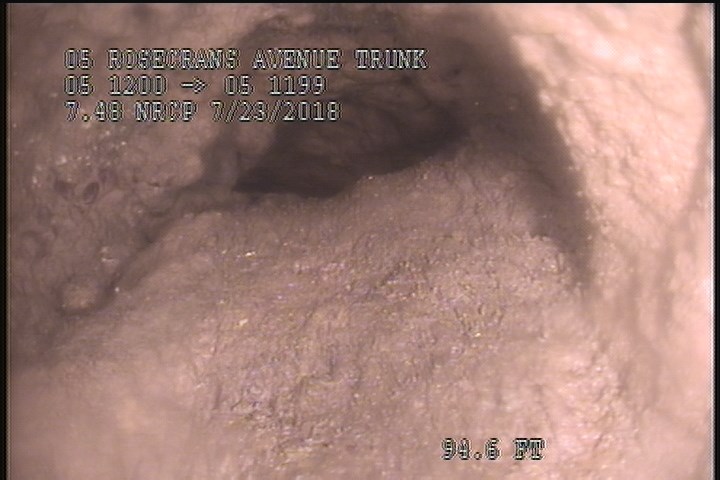

  • Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/60% GREASE/LATERAL

    94.6 ft. - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/60% GREASE/LATERAL

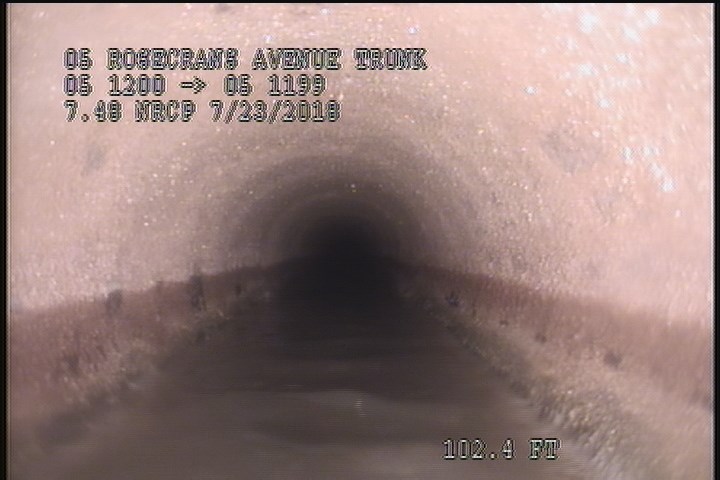

  • General Photograph

    102.4 ft. - General Photograph

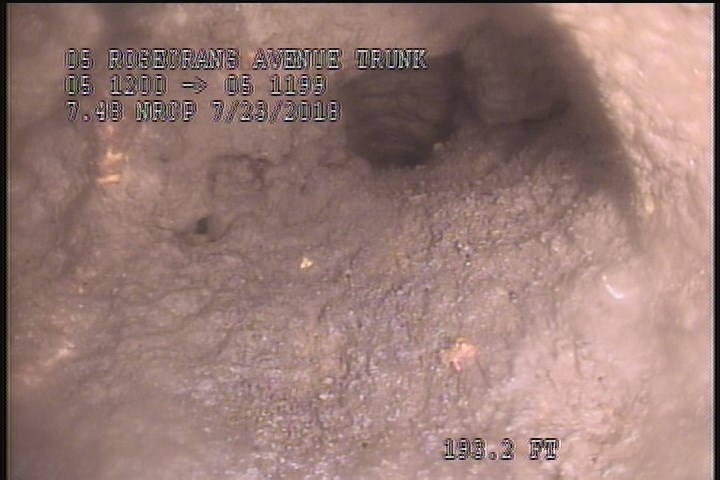

  • Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/65% GREASE/LATERAL

    193.2 ft. - Tap Factory Made Defective, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/65% GREASE/LATERAL

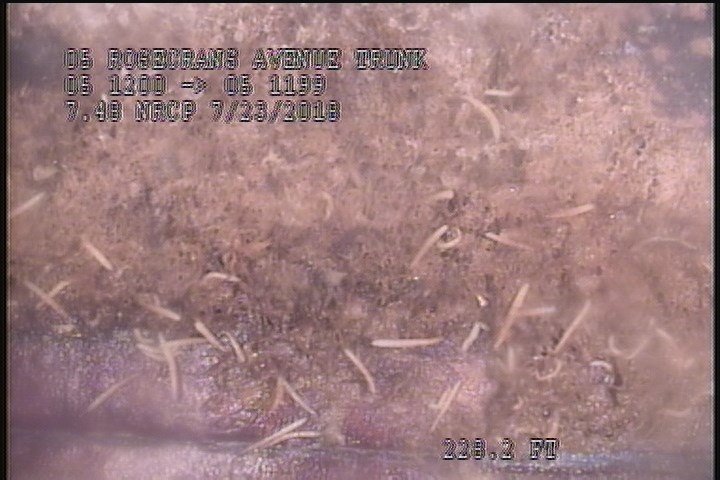

  • General Photograph

    228.2 ft. - General Photograph

All inspections of P06440Work order 0717904

Observations (17)

DistanceCodeObservation
281.9MGOConn. @ Mh, 3 O' Clock. SNUB
0MWM—
0AMH10:56 AM
278.5SZ70% LINER
278.5SSS—
102.4MGP—
37.7TFA—
281.8MGOGrease Throughout The Reach (5%)
243.7TFA—
94.6TFDOpen/60% GREASE/LATERAL
142.6TFA—
281.9AMH11:26 AM
2SSS—
0MWL—
2SZ70% LINER
228.2MGP—
193.2TFDOpen/65% GREASE/LATERAL

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-07-23T10:55:32-07:00
