Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 23, 2018, 03:28 PM

  • 05 1202_05 1201_7232018_092452.mp4

Date
07/23/2018
W/O
0717904
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00514
PipeID
P06442
Time
8:28 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7764
Sewer Name
05 ROSECRANS AVENUE TRUNK
City
HAWTHORNE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
16
Purpose
Routine Assessment
Project
20180723DF_ROSECRANS_AVENUE_TRUNK
Material
NRCP
Shape
Circular
Height
7.480000019073486 in.
Upstream MH
05 1201
Downstream MH
05 1202
Dir. of Survey
Upstream
Length Surveyed
276.2 ft.
Total Length
276.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 05 1201 to 05 1202
MH: 05 1201MH: 05 1202upstream0 ft. AMH - Upstream Manhole, Survey Ends - 9:53 AM0 ft. MGO - General Observation - Grease Throughout The Reach (5%)1.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 90% MAG11 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open42.2 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open89.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open143.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open206.8 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open244.5 ft. MGP - General Photograph - LINER MATERIAL/TAPE/GASKET245.5 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open274.2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG276.1 ft. MWM - Water Mark, 25 %of cross sectional area276.1 ft. MWL - Water Level, 20 %of cross sectional area276.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active276.2 ft. AMH - Downstream Manhole, Survey Begins - 8:32 AM

Observation photos (3)

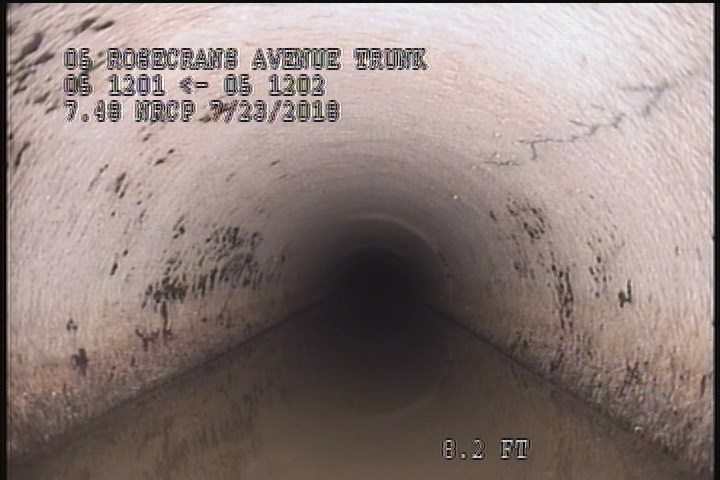

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 90% MAG

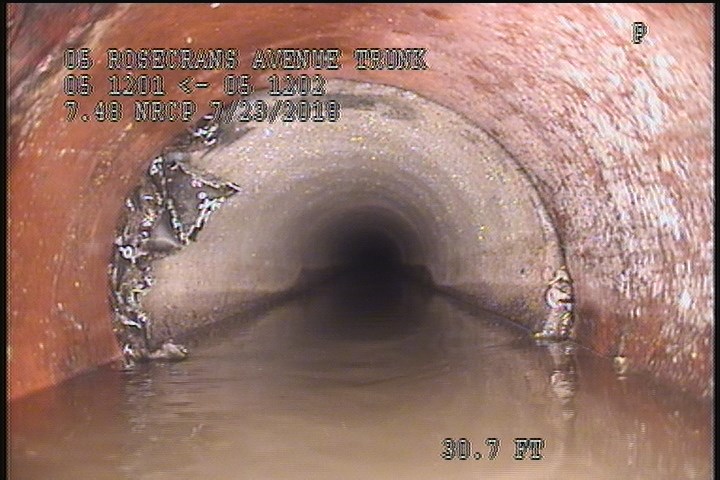

  • Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open

    30.7 ft. - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open

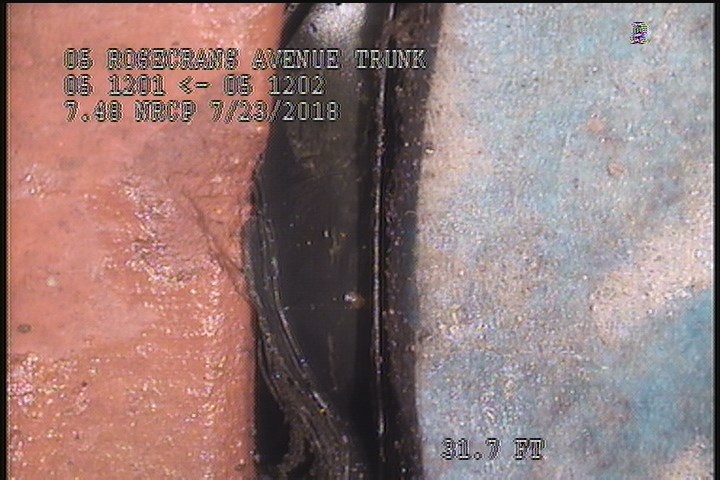

  • General Photograph - LINER MATERIAL/TAPE/GASKET

    31.7 ft. - General Photograph - LINER MATERIAL/TAPE/GASKET

All inspections of P06442Work order 0717904

Observations (15)

DistanceCodeObservation
276.2AMH9:53 AM
265.2TFOpen
0.1MWM—
276.2MGOGrease Throughout The Reach (5%)
30.7TFOpen
31.7MGPLINER MATERIAL/TAPE/GASKET
132.9TFOpen
234TFOpen
186.4TFOpen
275.1SZ90% MAG
69.4TFOpen
0.1MWL—
0AMH8:32 AM
2SZ90% MAG
0.1MGOConn. @ Mh, 9 O' Clock. Active

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2018-07-23T08:28:35-07:00
lining
CIPP
year_laid
20050531
