Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 19, 2018, 09:13 AM

  • G 0156_G 0155_7192018_040616.mp4

Date
07/19/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00837
Time
2:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0936
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Capital Improvement Program Assesment
Project
20180719MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0156
Downstream MH
G 0155
Dir. of Survey
Downstream
Length Surveyed
47.9 ft.
Total Length
47.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole G 0156 to G 0155
MH: G 0156MH: G 0155downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM2 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT2 ft. MGO - General Observation - MAG COAT 99% START 8:00 TO 4:008 ft. MGO - General Observation - MAG COAT 99% START47.5 ft. MGO - General Observation - TILES 100% IN PLACE UNGER MAG & GREASE COAT47.5 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish47.5 ft. MGO - General Observation - MAG COAT 99% FINISH47.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active47.9 ft. AMH - Downstream Manhole, Survey Ends - 4:35AM

Observation photos (3)

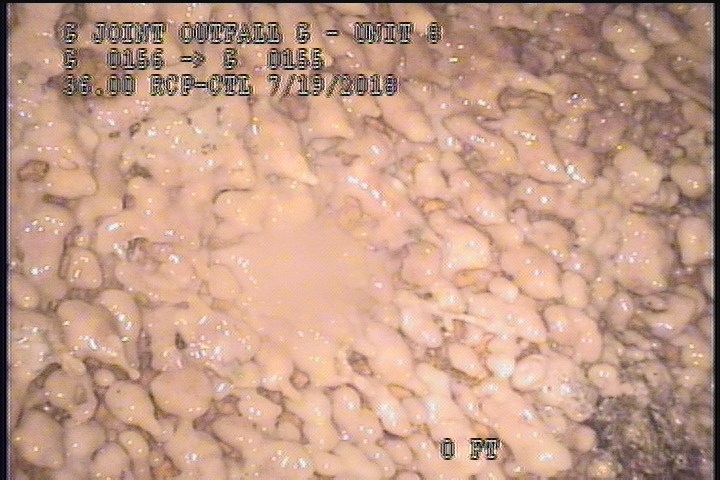

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

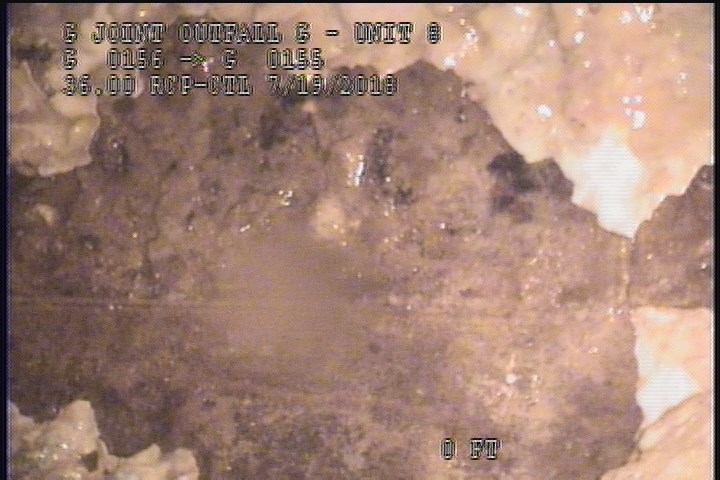

  • General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG & GREASE COAT

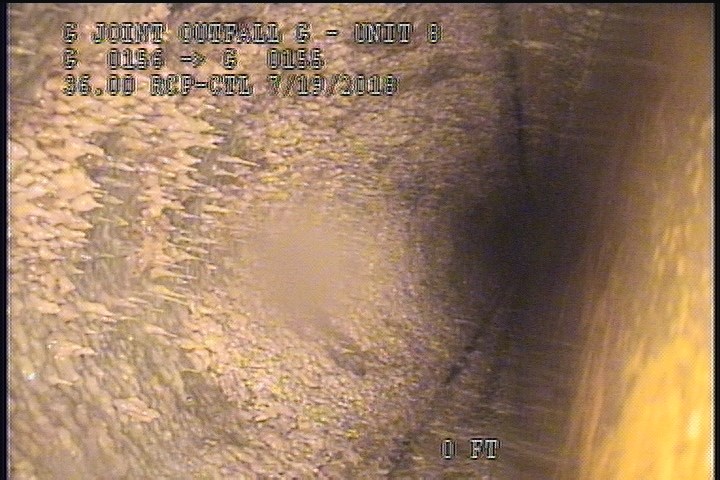

  • General Observation - MAG COAT 99% START

    8 ft. - General Observation - MAG COAT 99% START

All inspections of P00837Work order 0711987

Observations (12)

DistanceCodeObservation
0MWL—
0MWM—
47.5MGOTILES 100% IN PLACE UNGER MAG & GREASE COAT
47.5DAGS—
47.5MGOMAG COAT 99% FINISH
0AMH4:15AM
2DAGS—
8MGOMAG COAT 99% START
47.5MGOConn. @ Mh, 9 O' Clock. Active
47.9AMH4:35AM
2MGOTILES 100% IN PLACE UNDER MAG & GREASE COAT
2MGOMAG COAT 99% START 8:00 TO 4:00

Properties (4)

custom_field_three
TILES 100% UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-19T02:13:57-07:00
