Wastewater/Activity/PacpInspection/1.0Jun 25, 2018, 09:49 AM
B 0368_B 0367 _25062018_025929.mp4
- Date
- 06/25/2018
- W/O
- 712401
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00091
- PipeID
- P08880
- Time
- 2:49 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5704
- Sewer Name
- B JOINT OUTFALL B - UNIT 5A
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_712401_TV15051_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0368
- Downstream MH
- B 0367
- Dir. of Survey
- Downstream
- Length Surveyed
- 243.9 ft.
- Total Length
- 243.9 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)
2.6 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

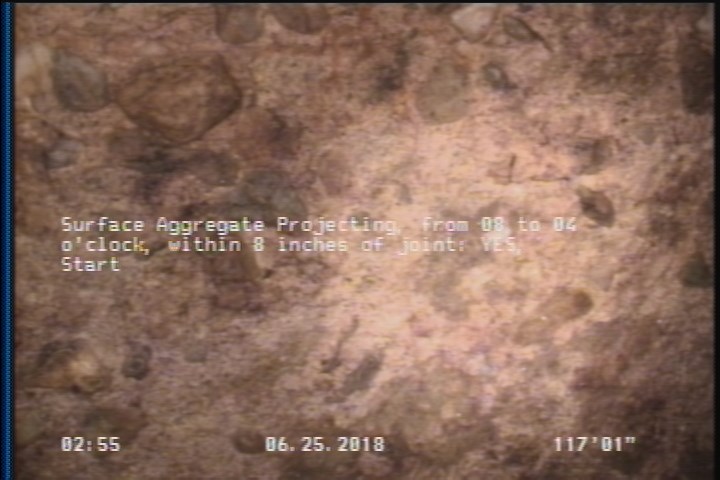

117.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | CAPPED CONNECTION AT 3 O' CLOCK AT MH |
| 243.9 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 0 | MWL | — |
| 243.9 | SSS | — |
| 2.6 | SAV | — |
| 243.9 | AMH | B 0367 |
| 117.1 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | B 0368 |
| 2.6 | SSS | — |
| 108.6 | TF | — |
| 243.9 | SAP | — |
| 117.1 | SAV | — |
| 0 | MGO | CAPPED CONNECTION AT 9 O' CLOCK AT |
Properties (4)
- additional_info
- SC359662
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-25T02:49:58-07:00
