Wastewater/Activity/PacpInspection/1.0Jun 26, 2018, 08:18 AM
B 0356_B 0355 _26062018_013039.mp4
- Date
- 06/26/2018
- W/O
- 712401
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00091
- PipeID
- P08868
- Time
- 1:18 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5705
- Sewer Name
- B JOINT OUTFALL B - UNIT 5A
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_712401_TV15051_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0356
- Downstream MH
- B 0355
- Dir. of Survey
- Downstream
- Length Surveyed
- 311.9 ft.
- Total Length
- 311.9 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 310
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 310
Observation photos (2)

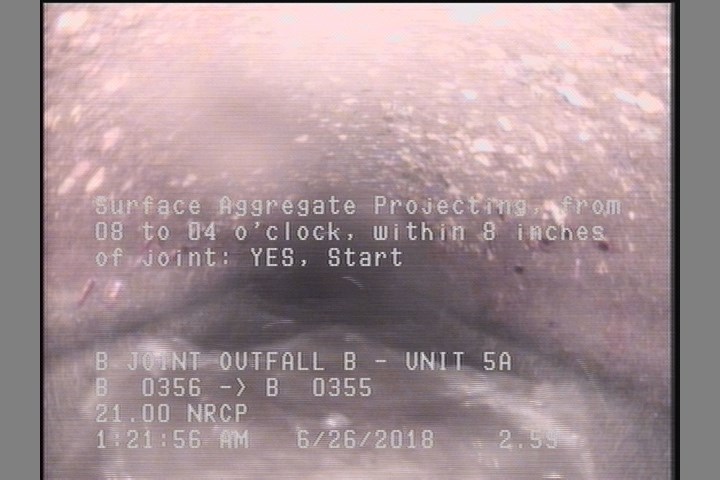

2.6 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 311.9 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 0 | AMH | B 0356 |
| 0 | MWL | — |
| 311.9 | SSS | — |
| 2.6 | SSS | — |
| 311.9 | AMH | B 0355 |
| 311.9 | SAP | — |
| 2.6 | SAP | — |
| 311.9 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
Properties (4)
- additional_info
- SC359663
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-26T01:18:10-07:00
