Wastewater/Activity/PacpInspection/1.0Jun 26, 2018, 06:03 AM
B 0362_B 0361 _25062018_231343.mp4
- Date
- 06/25/2018
- W/O
- 712401
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00091
- PipeID
- P08874
- Time
- 11:03 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5705
- Sewer Name
- B JOINT OUTFALL B - UNIT 5A
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_712401_TV15051_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0362
- Downstream MH
- B 0361
- Dir. of Survey
- Downstream
- Length Surveyed
- 254.9 ft.
- Total Length
- 254.9 ft.
- Structural Index
- 3
- Structural Quick
- 3I2I
- Structural Rating
- 250
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 250
Observation photos (2)

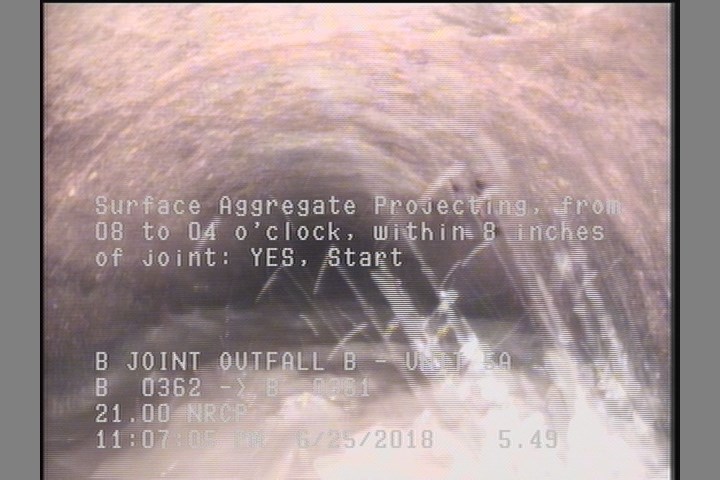

5.5 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

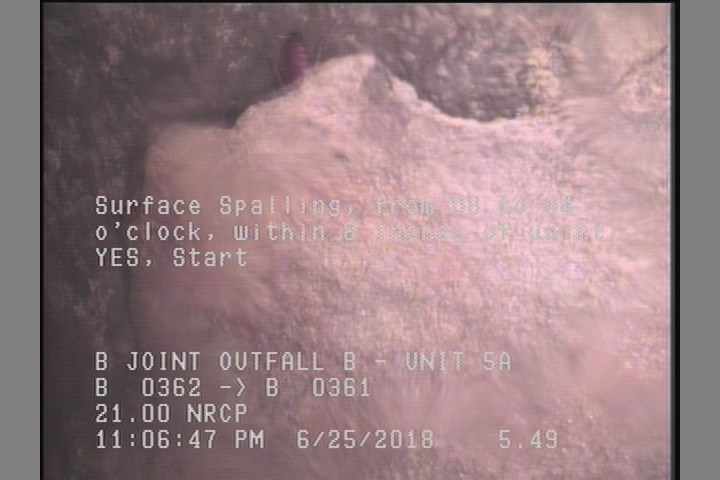

5.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 254.9 | AMH | B 0361 |
| 5.5 | SAP | — |
| 0 | AMH | B 0362 |
| 0 | MGO | CAPPED LATERAL 9 O'CLOCK @ MH |
| 0 | MWM | — |
| 254.9 | SAP | — |
| 254.9 | SSS | — |
| 5.5 | SSS | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359663
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-25T23:03:23-07:00
