Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 08:55 AM
B 0355_B 0354 _27062018_021243.mp4
- Date
- 06/27/2018
- W/O
- 712401
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00091
- PipeID
- P08867
- Time
- 1:55 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5757
- Sewer Name
- B JOINT OUTFALL B - UNIT 5A
- City
- TEMPLE CITY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 15
- Purpose
- Routine Assessment
- Project
- WO_712401_TV15051_JUL2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Square
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- B 0355
- Downstream MH
- B 0354
- Dir. of Survey
- Downstream
- Length Surveyed
- 377 ft.
- Total Length
- 377 ft.
- Structural Index
- 3
- Structural Quick
- 3N21
- Structural Rating
- 227
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 227
Observation photos (3)

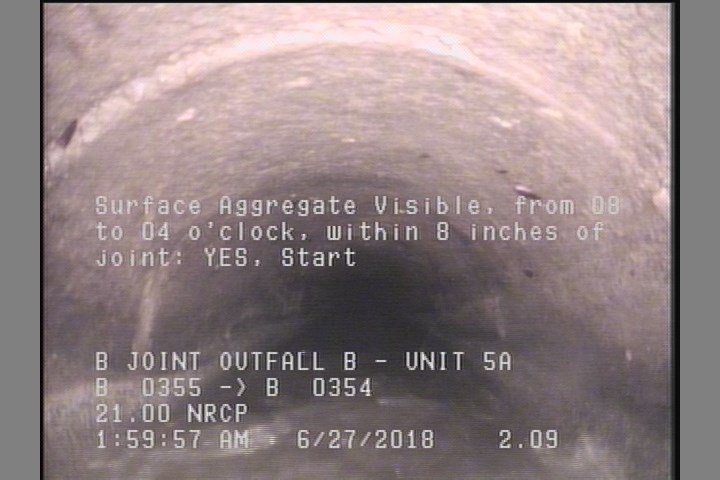

2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
6.3 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2.1 | SAV | — |
| 59.2 | TF | — |
| 6.3 | SAP | — |
| 377 | SSS | — |
| 2.1 | SSS | — |
| 0 | AMH | B 0355 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 112.8 | TF | — |
| 377 | AMH | B 0354 |
| 377 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 377 | SAP | — |
| 6.2 | SAV | — |
| 377 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359666
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-27T01:55:41-07:00
