Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 06:12 AM
32 0060_32 0059 _26062018_232612.mp4
- Date
- 06/26/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19824
- Time
- 11:12 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5752
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0060
- Downstream MH
- 32 0059
- Dir. of Survey
- Downstream
- Length Surveyed
- 278.4 ft.
- Total Length
- 278.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 112
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 114
Observation photos (3)

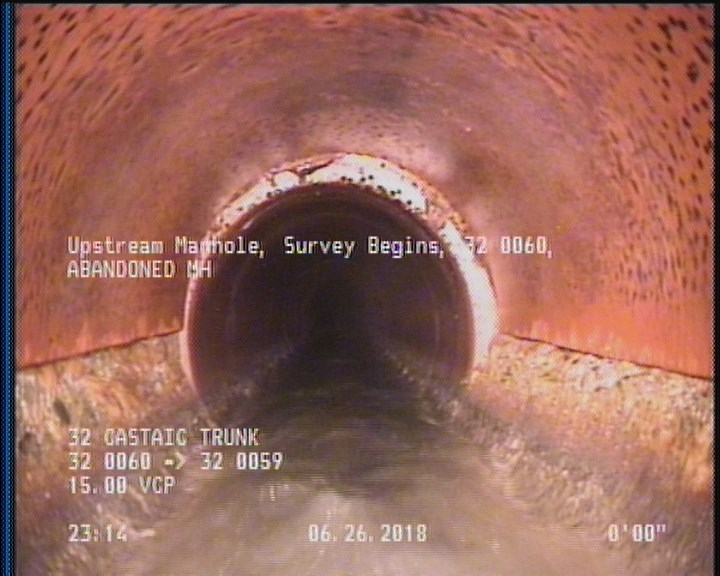

0 ft. - Upstream Manhole, Survey Begins - 32 0060, ABANDONED MH

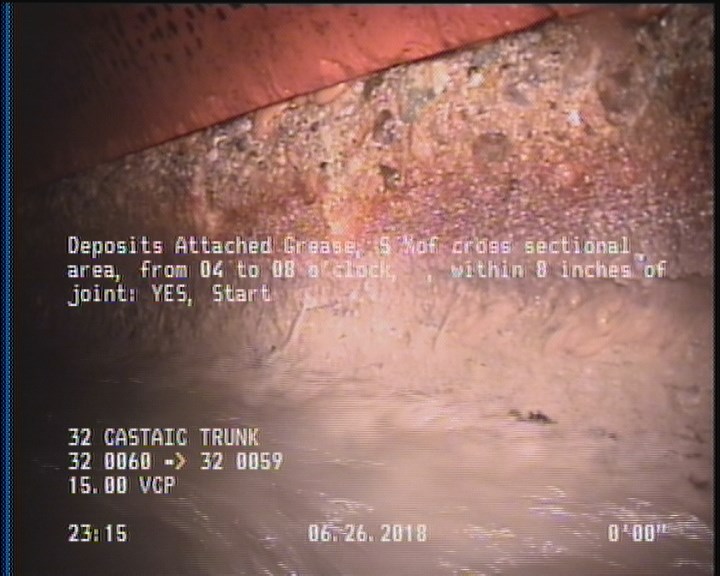

0 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

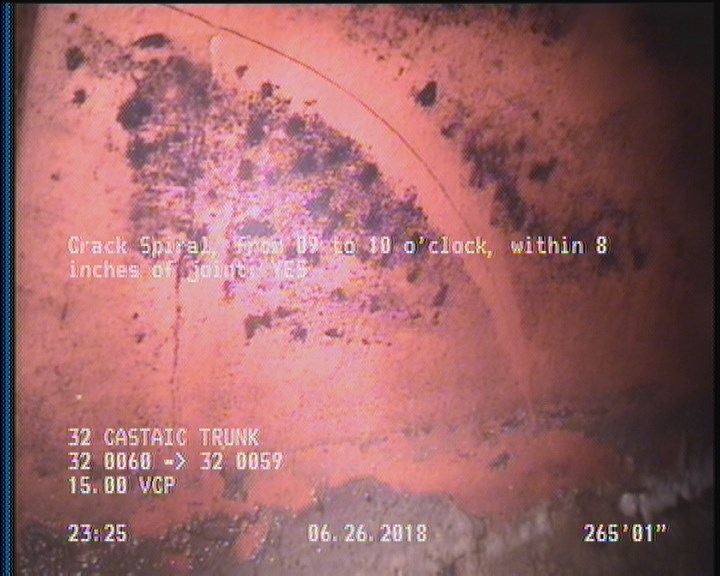

265.1 ft. - Crack Spiral, from 09 to 10 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | AMH | 32 0060, ABANDONED MH |
| 0 | DAGS | — |
| 278.4 | DAGS | — |
| 265.1 | CS | — |
| 0 | MWM | — |
| 278.4 | AMH | 32 0059 |
Properties (5)
- additional_info
- SC359718
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-26T23:12:47-07:00
- year_laid
- 27282
