Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 05:53 AM
32 0047_32 0046 _27062018_231117.mp4
- Date
- 06/27/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19811
- Time
- 10:53 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5753
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0047
- Downstream MH
- 32 0046
- Dir. of Survey
- Downstream
- Length Surveyed
- 387.6 ft.
- Total Length
- 387.6 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 154
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 160
Observation photos (3)

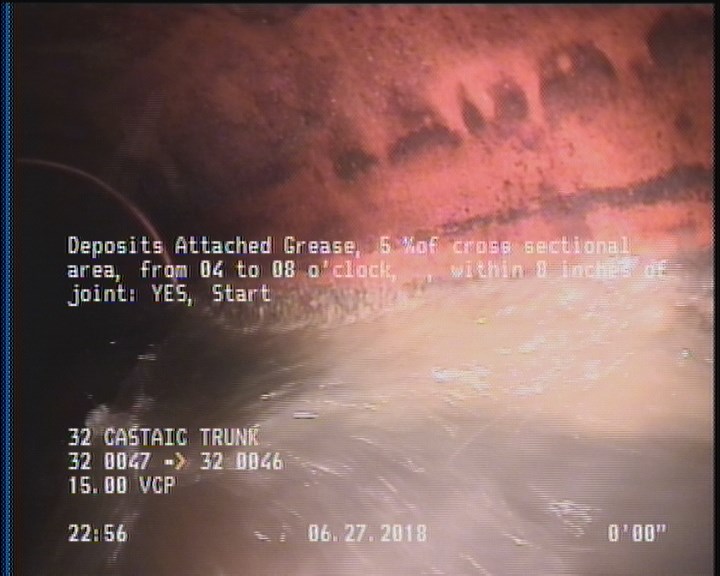

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

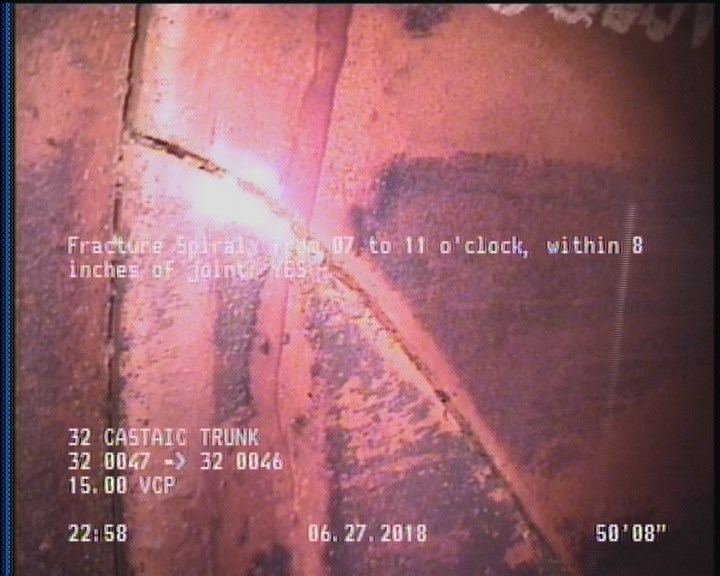

50.6 ft. - Fracture Spiral, from 07 to 11 o'clock, within 8 inches of joint: YES

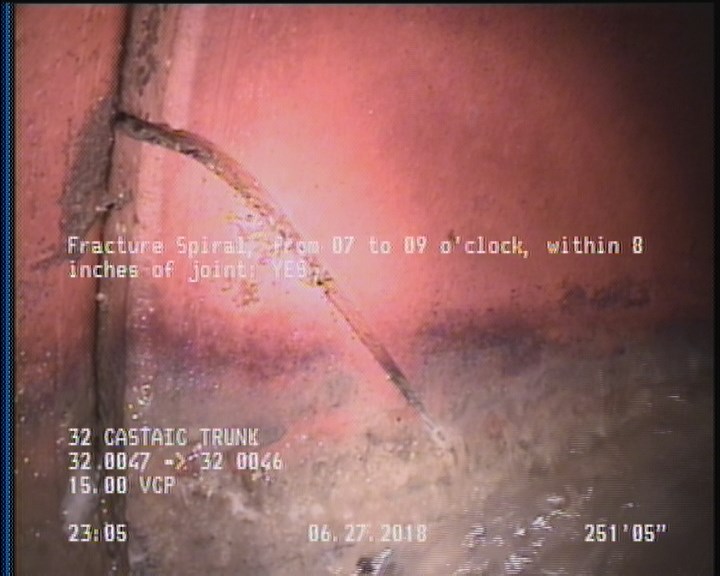

251.4 ft. - Fracture Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 251.4 | FS | — |
| 385.8 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 32 0047 |
| 2 | DAGS | — |
| 50.6 | FS | — |
| 387.6 | AMH | 32 0046 |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359719
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-27T22:53:11-07:00
- year_laid
- 27282
