Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 06:46 AM
32 0046_32 0045 _28062018_000546.mp4
- Date
- 06/27/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19810
- Time
- 11:46 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5753
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0046
- Downstream MH
- 32 0045
- Dir. of Survey
- Downstream
- Length Surveyed
- 380.5 ft.
- Total Length
- 380.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 152
Observation photos (1)

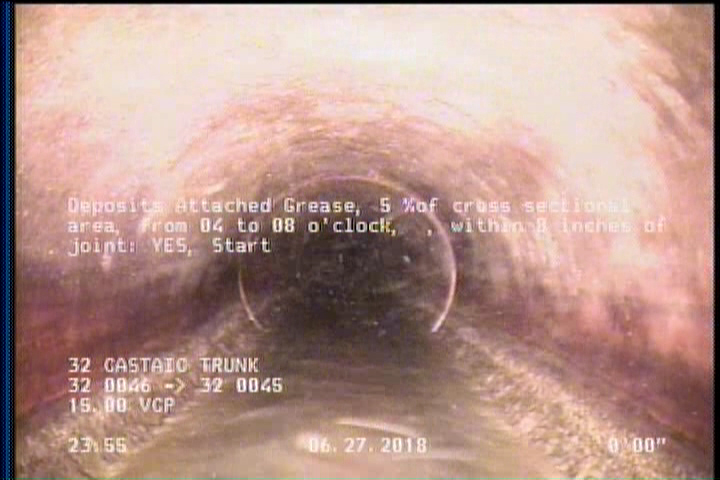

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 32 0046 |
| 0 | MWM | — |
| 380.5 | AMH | 32 0045 |
| 2 | DAGS | — |
| 379.8 | DAGS | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359719
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-27T23:46:06-07:00
- year_laid
- 27282
