Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 10:00 AM
32 0042_32 0041A _28062018_031732.mp4
- Date
- 06/28/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P24257
- Time
- 3:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5753
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0042
- Downstream MH
- 32 0041A
- Dir. of Survey
- Downstream
- Length Surveyed
- 304.7 ft.
- Total Length
- 304.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2K00
- O&M Rating
- 120
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 120
Observation photos (1)

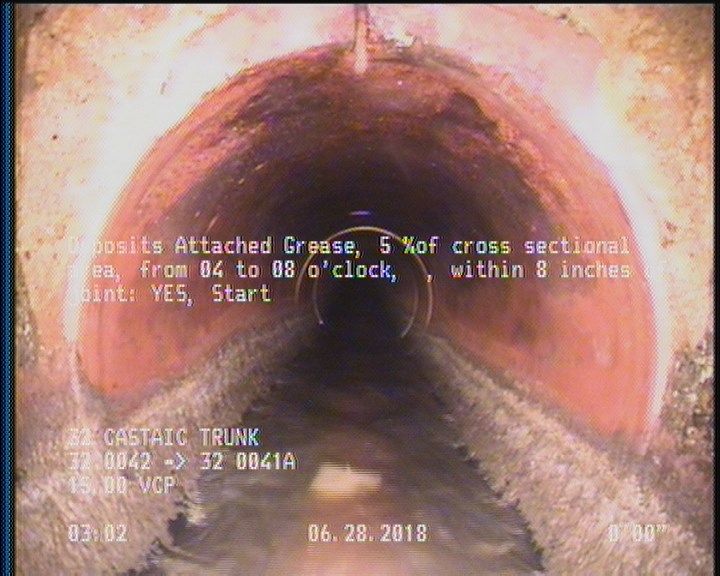

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 304.7 | AMH | 32 0041A |
| 302.2 | DAGS | — |
| 304.6 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 32 0042 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359719
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-28T03:00:28-07:00
