Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2018, 10:22 AM

  • 32 0068_32 0067 _26062018_033445.mp4

Date
06/26/2018
W/O
712244
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00886
PipeID
P19832
Time
3:22 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5750
Sewer Name
32 CASTAIC TRUNK
City
CASTAIC
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
01
Purpose
Routine Assessment
Project
WO_712244_TV32012_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
32 0067
Downstream MH
32 0068
Dir. of Survey
Upstream
Length Surveyed
345.2 ft.
Total Length
345.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
2
Overall Quick
—
Overall Rating
136
Pipe schematic from manhole 32 0067 to 32 0068
MH: 32 0067MH: 32 0068upstream0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Ends - 32 00681.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish137.4 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"139.3 ft. TBA - Tap Break-In Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"343.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start345.2 ft. AMH - Downstream Manhole, Survey Begins - 32 0067345.2 ft. MWL - Water Level, 15 %of cross sectional area345.2 ft. MWM - Water Mark, 25 %of cross sectional area

Observation photos (1)

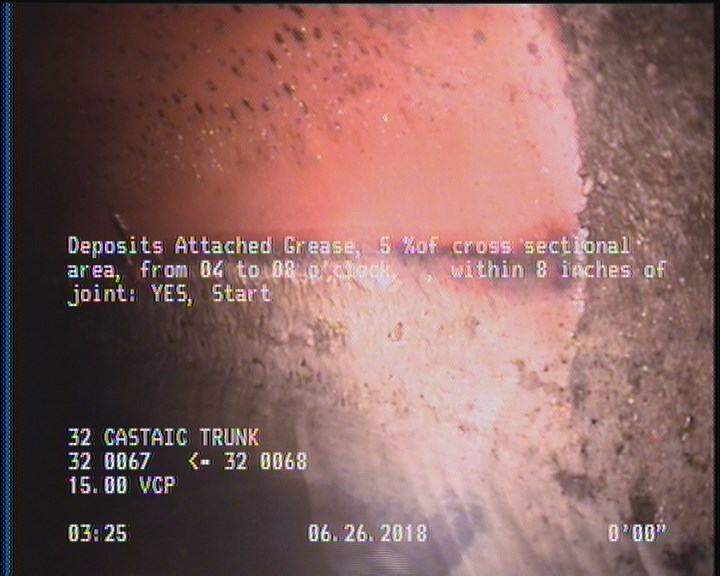

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P19832Work order 712244

Observations (9)

DistanceCodeObservation
0AMH32 0067
345.2MGOCOCKROACHES IN MANHOLE
343.4DAGS—
205.9TBA—
2DAGS—
345.2AMH32 0068
0MWL—
207.8TBA—
0MWM—

Properties (5)

additional_info
SC359716
custom_field_two
4
customer
LACSD
datetime
2018-06-26T03:22:46-07:00
year_laid
27282
