Wastewater/Activity/PacpInspection/1.0Jul 3, 2018, 09:00 AM
32 0018_32 0017 _03072018_021450.mp4
- Date
- 07/03/2018
- W/O
- 712244
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00886
- PipeID
- P19782
- Time
- 2:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5857
- Sewer Name
- 32 CASTAIC TRUNK
- City
- CASTAIC
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_712244_TV32012_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 32 0017
- Downstream MH
- 32 0018
- Dir. of Survey
- Upstream
- Length Surveyed
- 197.8 ft.
- Total Length
- 197.8 ft.
- Structural Index
- 3
- Structural Quick
- 3822
- Structural Rating
- 28
- O&M Index
- 2
- O&M Quick
- 412G
- O&M Rating
- 82
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 110
Observation photos (4)

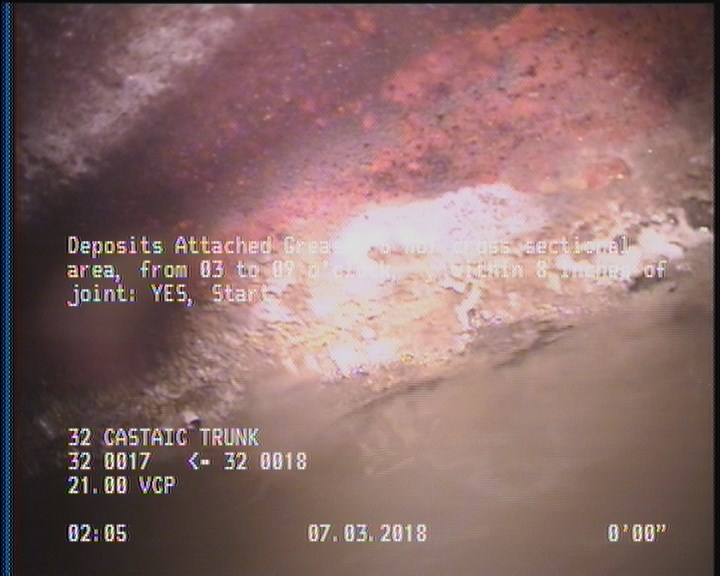

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

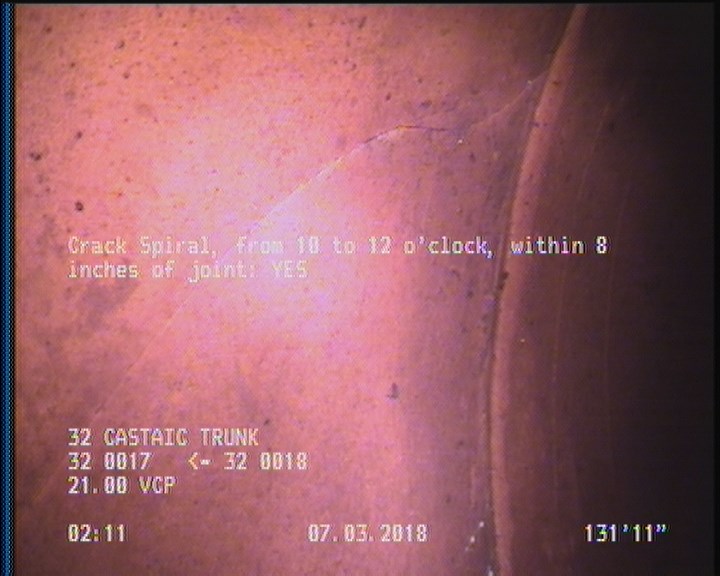

131.9 ft. - Crack Spiral, from 10 to 12 o'clock, within 8 inches of joint: YES

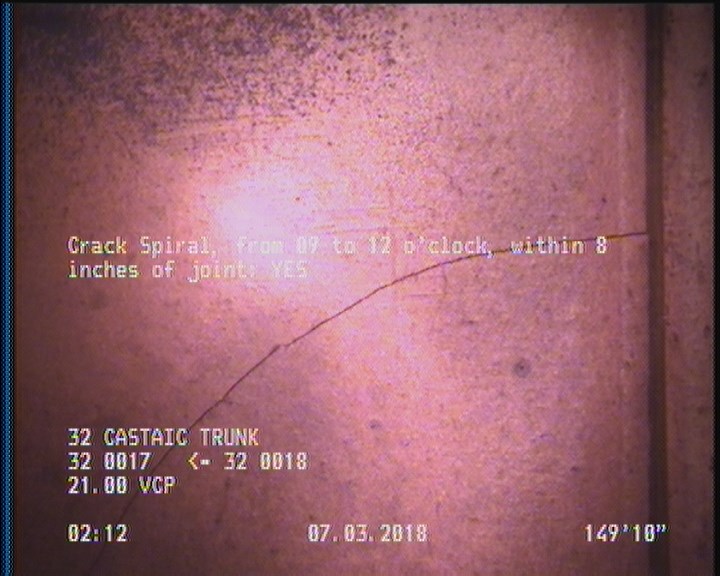

149.8 ft. - Crack Spiral, from 09 to 12 o'clock, within 8 inches of joint: YES

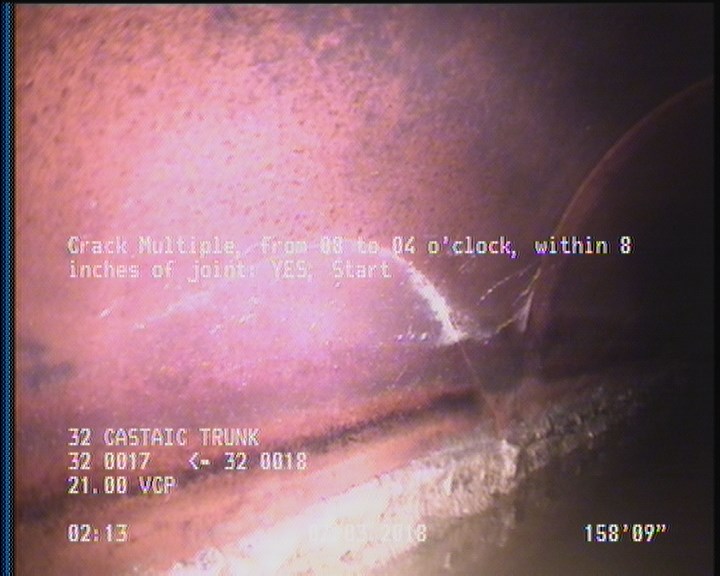

158.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 197.8 | DAGS | — |
| 131.9 | CS | — |
| 197.8 | CM | — |
| 149.8 | CS | — |
| 197.8 | AMH | 32 0018 |
| 0 | MWM | — |
| 0 | AMH | 32 0017 |
| 0 | MWL | — |
| 158.8 | CM | — |
| 2 | DAGS | — |
Properties (4)
- additional_info
- SC359724
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-07-03T02:00:43-07:00
