Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 06:34 AM

  • 18 0930_18 0929 _28062018_001810.mp4

Date
06/27/2018
W/O
711900
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00700
PipeID
P14778
Time
11:34 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5758
Sewer Name
18 SCOTT AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_711900_TV18047_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
18 0930
Downstream MH
18 0929
Dir. of Survey
Downstream
Length Surveyed
343.8 ft.
Total Length
343.8 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
201
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
206
Pipe schematic from manhole 18 0930 to 18 0929
MH: 18 0930MH: 18 0929downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 09300 ft. MGO - General Observation - CAPPED LATERAL 9 O'CLOCK @ MH0 ft. MWL - Water Level, 15 %of cross sectional area8.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start21.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"46.2 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES73.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6", 6"75.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"121.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"171.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"177.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"228 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"232.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"275.2 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"277.9 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES279.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"283 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"324.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"330.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"334.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"335.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"342.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish343.8 ft. AMH - Downstream Manhole, Survey Ends - 18 0929 ZOOMED IN

Observation photos (3)

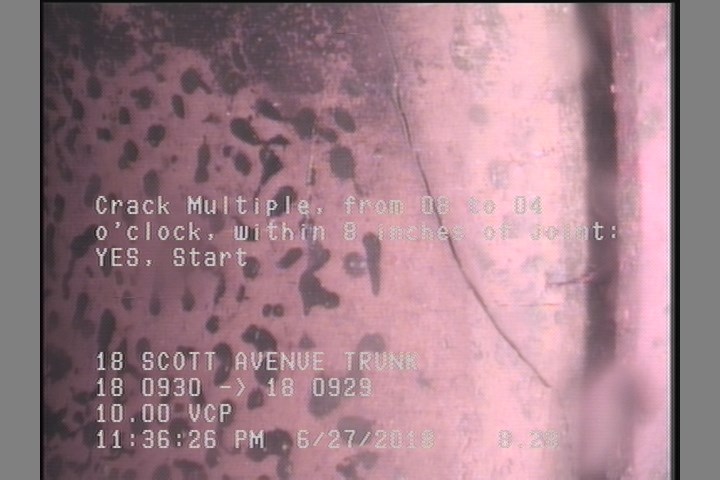

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    8.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

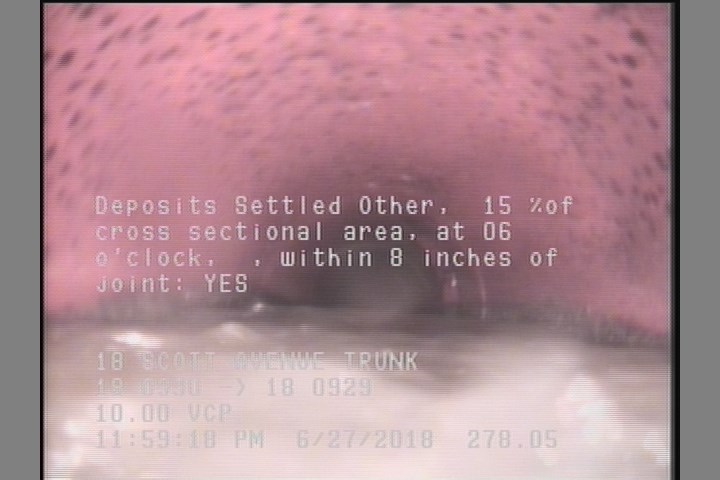

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

    277.9 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

  • Downstream Manhole, Survey Ends - 18 0929 ZOOMED IN

    343.8 ft. - Downstream Manhole, Survey Ends - 18 0929 ZOOMED IN

All inspections of P14778Work order 711900

Observations (27)

DistanceCodeObservation
343.8AMH18 0929 ZOOMED IN
283TB—
177.8TFC—
223.6TF—
0MWM—
21.6TF—
121.1TF—
0AMH18 0930
228TFC—
275.2TB—
46.2DSZ—
279.9TFC—
232.1TB—
75.1TF—
8.3CM—
335.7TB—
334.5TB—
324.3TFC—
330.3TFC—
171.3TF—
73.2TF—
126.1TF—
277.9DSZ—
0MGOCAPPED LATERAL 9 O'CLOCK @ MH
342.2CM—
27.1TFC—
0MWL—

Properties (4)

additional_info
SC359667
custom_field_two
3
customer
LACSD
datetime
