Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 07:55 AM

  • 18 0938_18 0937 _28062018_010139.mp4

Date
06/28/2018
W/O
711900
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00700
PipeID
P14786
Time
12:55 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5758
Sewer Name
18 SCOTT AVENUE TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_711900_TV18047_JUL2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
18 0938
Downstream MH
18 0937
Dir. of Survey
Downstream
Length Surveyed
53.8 ft.
Total Length
53.8 ft.
Structural Index
3
Structural Quick
3900
Structural Rating
27
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
29
Pipe schematic from manhole 18 0938 to 18 0937
MH: 18 0938MH: 18 0937downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 09380 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0.1 ft. MWM - Water Mark, 25 %of cross sectional area6.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start46.5 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES53.8 ft. AMH - Downstream Manhole, Survey Ends - 18 093753.8 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK53.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish53.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

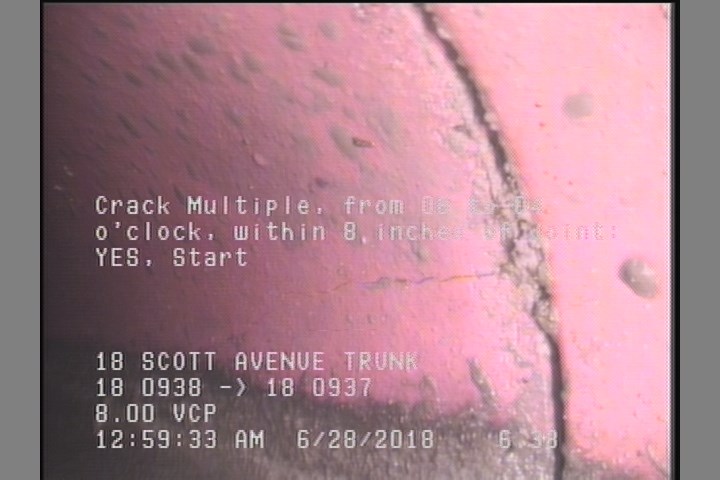

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

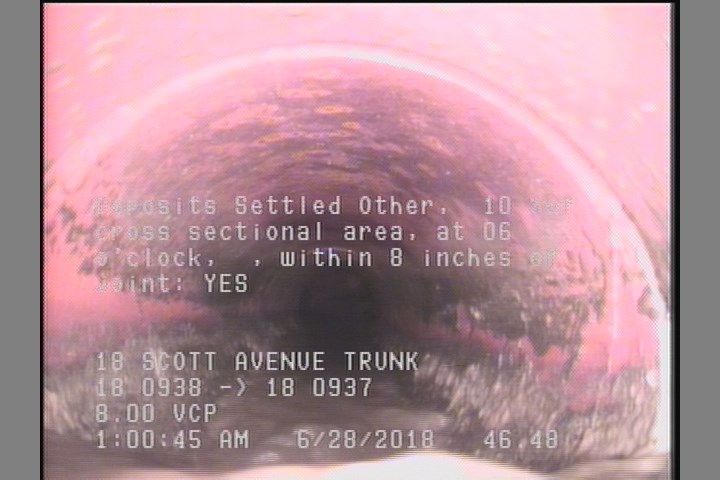

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

    46.5 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

All inspections of P14786Work order 711900

Observations (11)

DistanceCodeObservation
0AMH18 0938
0.1MWM—
0MWL—
0MGOCONNECTION AT MH 3 O'CLOCK
53.8AMH18 0937
53.8MGOCONNECTION AT MH 9 O'CLOCK
53.8CM—
6.4CM—
46.5DSZ—
0MGOCONNECTION AT MH 9 O'CLOCK
53.8MGOCONNECTION AT MH 3 O'CLOCK

Properties (4)

additional_info
SC359667
custom_field_two
3
customer
LACSD
datetime
2018-06-28T00:55:57-07:00
