Wastewater/Activity/PacpInspection/1.0Jun 25, 2018, 08:00 AM
02 0672_02 0671_25062018_011108.mp4
- Date
- 06/25/2018
- W/O
- 706681
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00311
- PipeID
- P03226
- Time
- 1:00 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5746
- Sewer Name
- 02 WOODRUFF AVENUE TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_706681_TV02337_JUN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 02 0672
- Downstream MH
- 02 0671
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.7 ft.
- Total Length
- 8.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

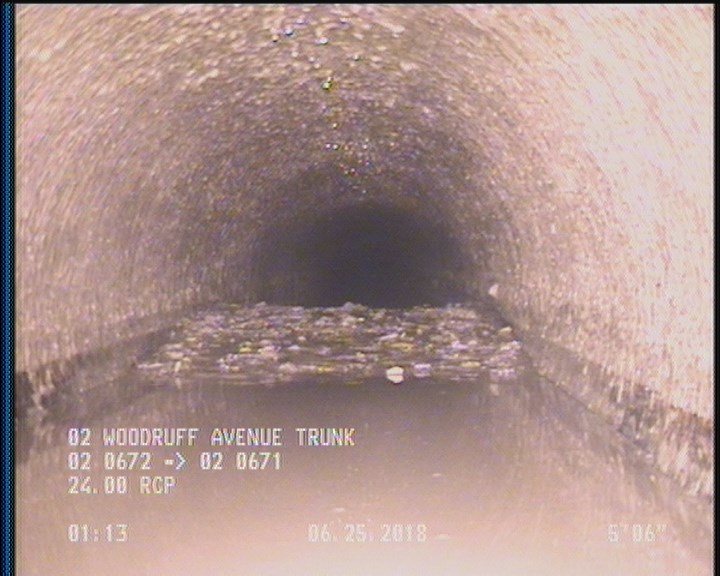

8.7 ft. - Survey Abandoned - DUE TO MAG COATING/SLUDGE

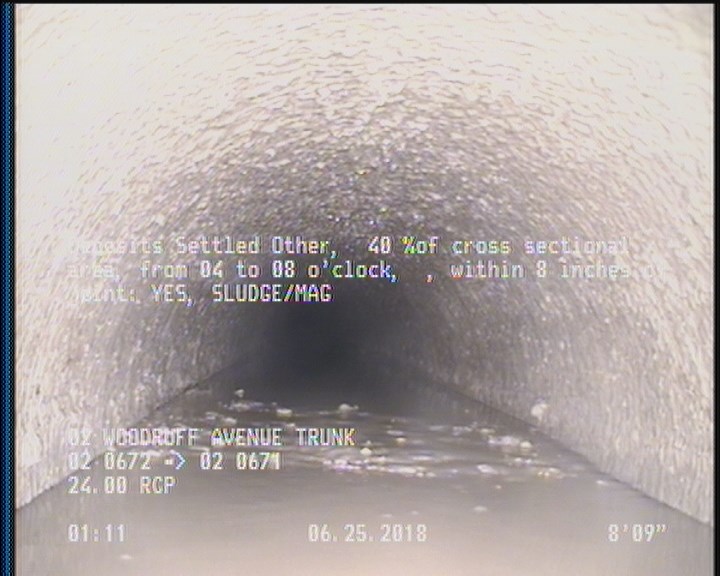

8.7 ft. - Deposits Settled Other, 40 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE/MAG
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MAG COATING THROUGHOUT 90% |
| 8.7 | MSA | DUE TO MAG COATING/SLUDGE |
| 0 | AMH | 02 0672 |
| 8.7 | DSZ | SLUDGE/MAG |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359712
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-06-25T01:00:32-07:00
