Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 18, 2018, 10:29 AM

  • Section#3_G 0163_G 0162__7182018__I0035.mp4

Date
07/18/2018
W/O
0711987
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z01180
PipeID
P00844
Time
3:29 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0035
Sewer Name
G JOINT OUTFALL G - UNIT 8
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Capital Improvement Program Assesment
Project
20180718MDM_JOINT_OUTFALL_G_UNIT_8
Material
RCP-CTL
Shape
Circular
Height
36 in.
Upstream MH
G 0163
Downstream MH
G 0162
Dir. of Survey
Downstream
Length Surveyed
435.7 ft.
Total Length
435.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2P00
O&M Rating
174
Overall Index
2
Overall Quick
—
Overall Rating
174
Pipe schematic from manhole G 0163 to G 0162
MH: G 0163MH: G 0162downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:15AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. MGO - General Observation - TILES 100% IN PLACE UNDER MAG COAT2 ft. MGO - General Observation - MAG COAT 98% START 8:00 TO 4:0021.9 ft. MGO - General Observation - MAG COAT 100%176.1 ft. MGO - General Observation - 100% MAG COAT435.1 ft. DAGS - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish435.1 ft. MGO - General Observation - TILES 100% UNDER MAG & GREASE COAT435.1 ft. MGO - General Observation - MAG COAT 100% FINISH435.7 ft. AMH - Downstream Manhole, Survey Ends - 5:40AM

Observation photos (5)

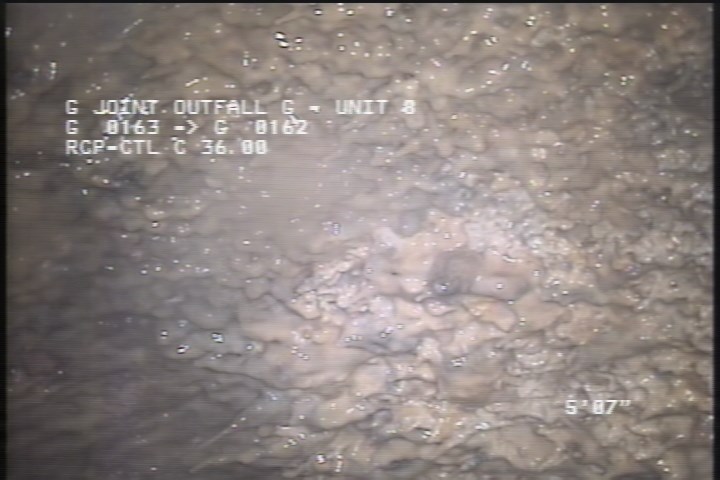

  • Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 2 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

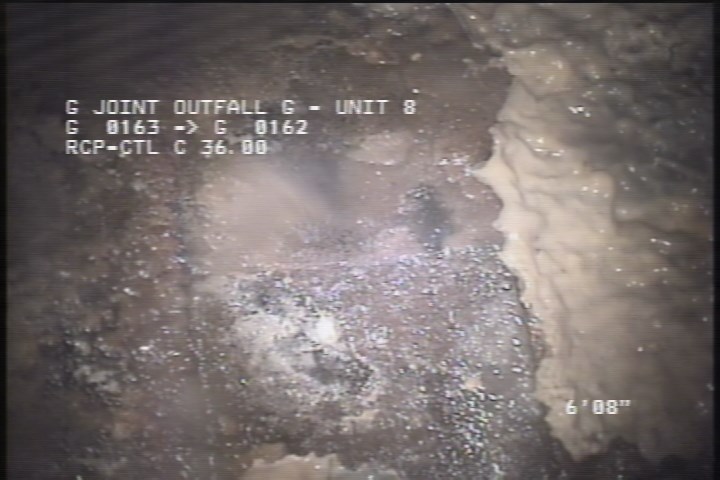

  • General Observation - TILES 100% IN PLACE UNDER MAG COAT

    2 ft. - General Observation - TILES 100% IN PLACE UNDER MAG COAT

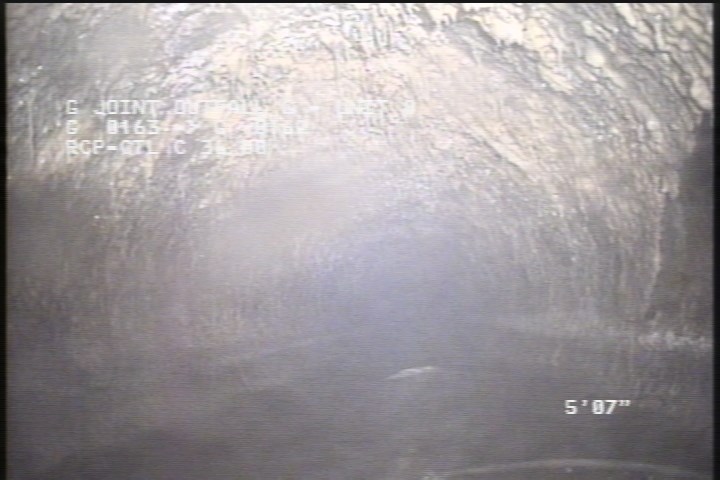

  • General Observation - MAG COAT 98% START 8:00 TO 4:00

    2 ft. - General Observation - MAG COAT 98% START 8:00 TO 4:00

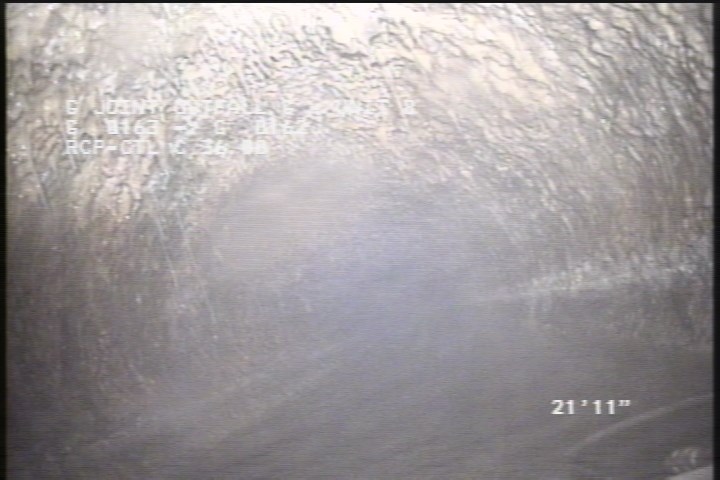

  • General Observation - MAG COAT 100%

    21.9 ft. - General Observation - MAG COAT 100%

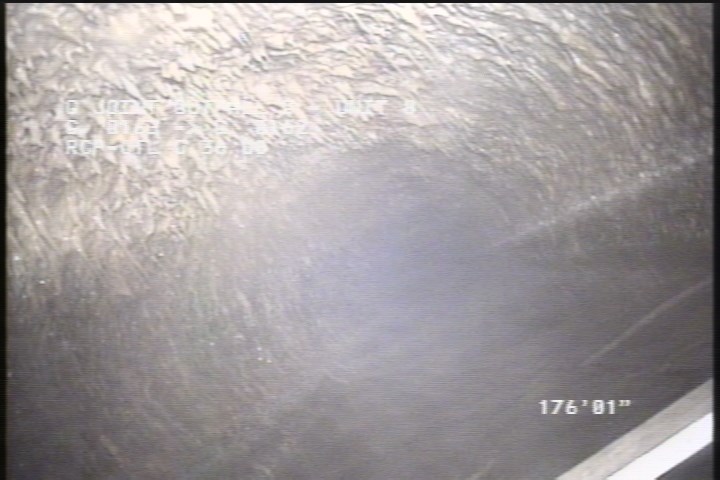

  • General Observation - 100% MAG COAT

    176.1 ft. - General Observation - 100% MAG COAT

All inspections of P00844Work order 0711987

Observations (13)

DistanceCodeObservation
435.1DAGS—
435.1MGOTILES 100% UNDER MAG & GREASE COAT
176.1MGO100% MAG COAT
21.9MGOMAG COAT 100%
2DAGS—
2MGOTILES 100% IN PLACE UNDER MAG COAT
435.1MGOMAG COAT 100% FINISH
2MGOMAG COAT 98% START 8:00 TO 4:00
0AMH5:15AM
435.7AMH5:40AM
0MWM—
0MGOMH CONN 9:00 ACTIVE
0MWL—

Properties (4)

custom_field_three
TILES 100% UNDER MAG & GREASE COAT
custom_field_two
3
customer
LACSD
datetime
2018-07-18T03:29:10-07:00
