Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 17, 2018, 08:20 AM

  • 08 0337_08 0336_7172018_013006.mp4

Date
07/17/2018
W/O
0717420
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00003
PipeID
P18913
Time
1:20 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0935
Sewer Name
08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
14
Purpose
Maintenance Related
Project
20180717MDM_DAVISION_CITY_TRUNK_SECTS_1_2_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
08 0336
Downstream MH
08 0337
Dir. of Survey
Upstream
Length Surveyed
9 ft.
Total Length
9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 08 0336 to 08 0337
MH: 08 0336MH: 08 0337upstream0 ft. MGO - General Observation - NORTHEST STOP LOG GROOVE BOTTOM1 ft. MGO - General Observation - NORTHWEST GROOVE BROKEN TOP2 ft. MGO - General Observation - NORTHWEST GROOVE BROKEN3 ft. MGO - General Observation - CENTER DIVIDER NORTH GROOVE4 ft. MGO - General Observation - CENTER DIVIDER SOUTH GROOVE5 ft. MGO - General Observation - STOP LOG GROOVE EAST ON CENTER DIVIDER6 ft. MGO - General Observation - SOUTHWEST GROOVE7 ft. MGO - General Observation - SOUTHWEST GRROVE8 ft. MGO - General Observation - STOP LOG GROOVES SOUTHSIDE9 ft. MWM - Water Mark, 20 %of cross sectional area9 ft. AMH - Downstream Manhole, Survey Begins - 1:30AM9 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (9)

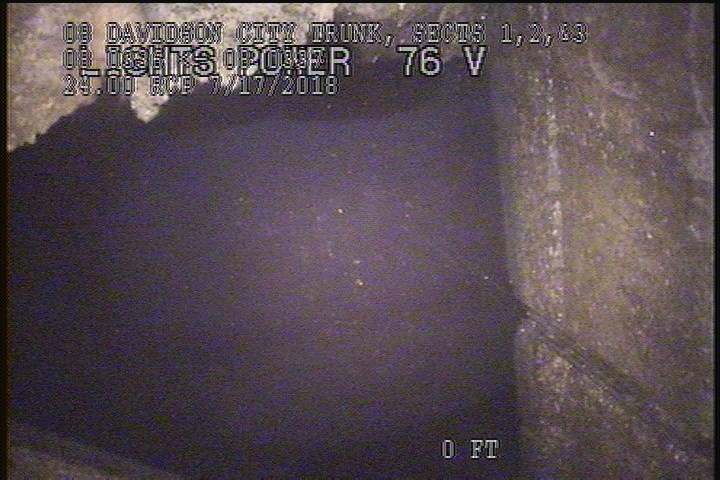

  • General Observation - STOP LOG GROOVES SOUTHSIDE

    1 ft. - General Observation - STOP LOG GROOVES SOUTHSIDE

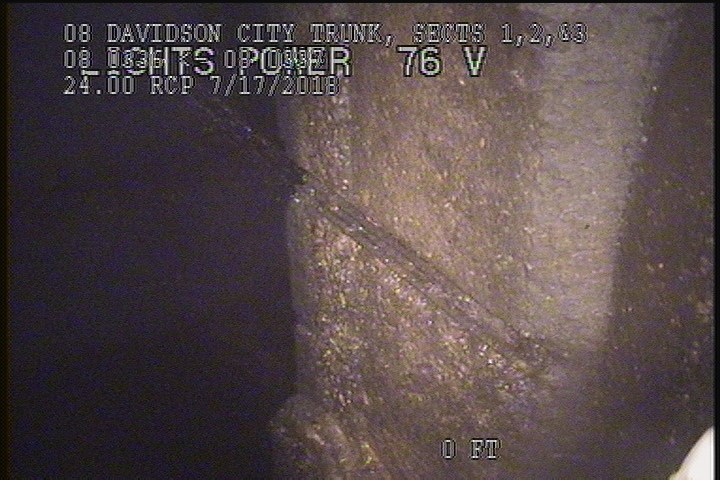

  • General Observation - SOUTHWEST GRROVE

    2 ft. - General Observation - SOUTHWEST GRROVE

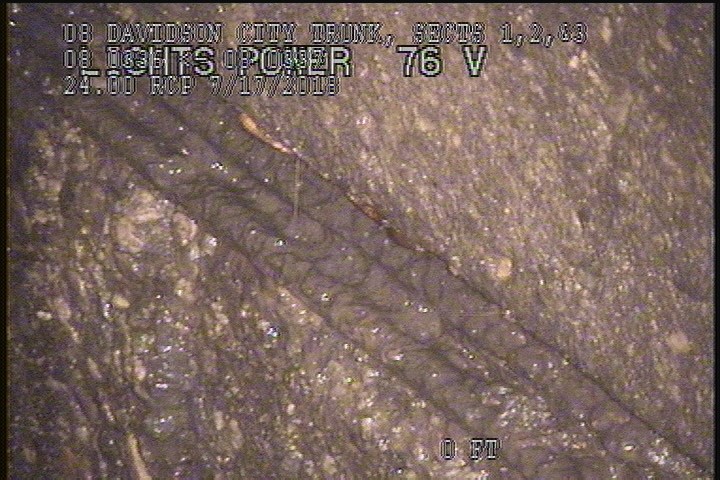

  • General Observation - SOUTHWEST GROOVE

    3 ft. - General Observation - SOUTHWEST GROOVE

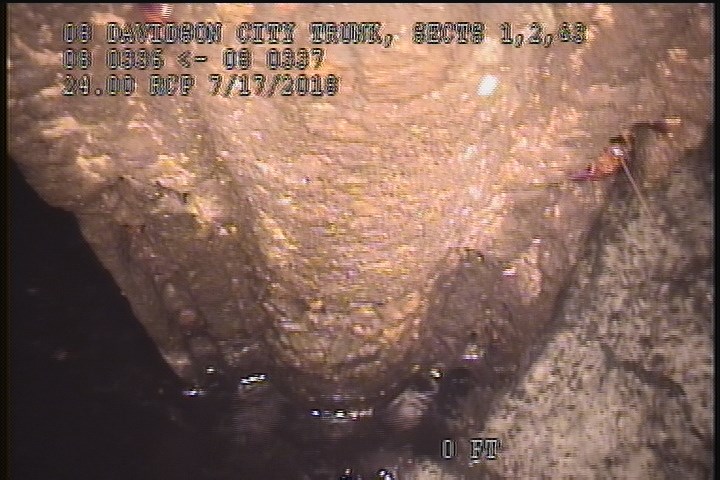

  • General Observation - STOP LOG GROOVE EAST ON CENTER DIVIDER

    4 ft. - General Observation - STOP LOG GROOVE EAST ON CENTER DIVIDER

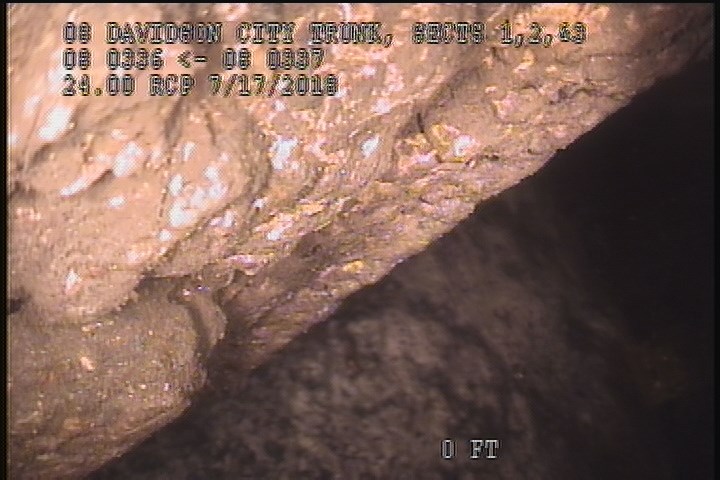

  • General Observation - CENTER DIVIDER SOUTH GROOVE

    5 ft. - General Observation - CENTER DIVIDER SOUTH GROOVE

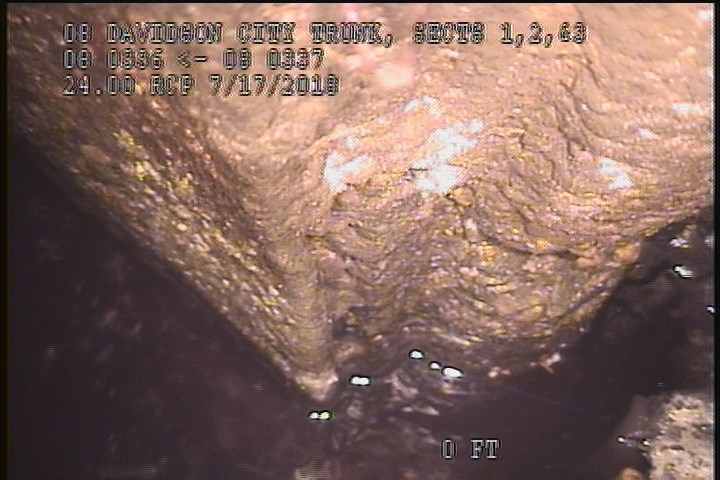

  • General Observation - CENTER DIVIDER NORTH GROOVE

    6 ft. - General Observation - CENTER DIVIDER NORTH GROOVE

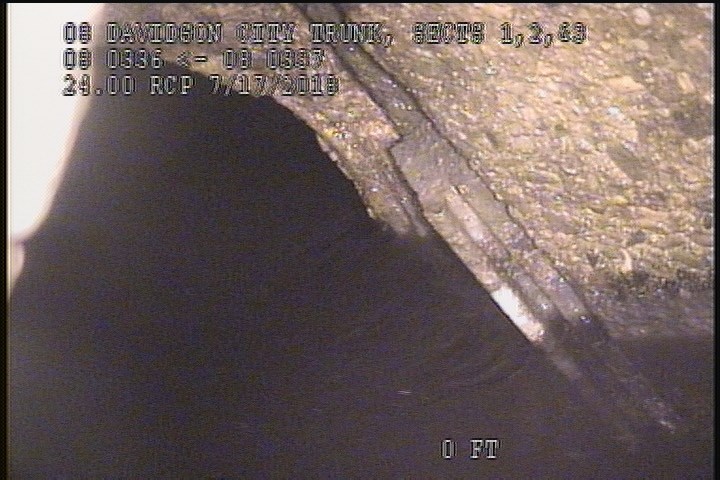

  • General Observation - NORTHWEST GROOVE BROKEN

    7 ft. - General Observation - NORTHWEST GROOVE BROKEN

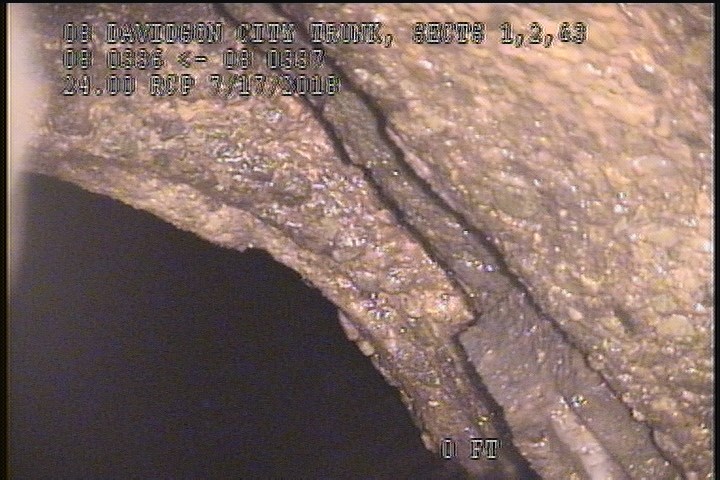

  • General Observation - NORTHWEST GROOVE BROKEN TOP

    8 ft. - General Observation - NORTHWEST GROOVE BROKEN TOP

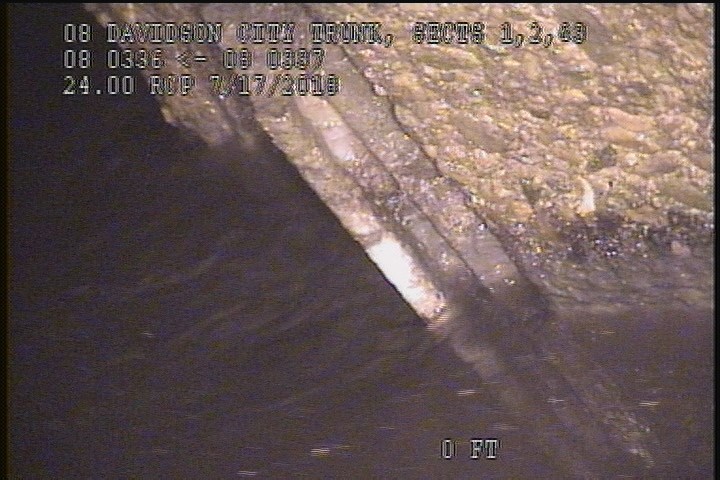

  • General Observation - NORTHEST STOP LOG GROOVE BOTTOM

    9 ft. - General Observation - NORTHEST STOP LOG GROOVE BOTTOM

All inspections of P18913Work order 0717420

Observations (12)

DistanceCodeObservation
6MGOCENTER DIVIDER NORTH GROOVE
5MGOCENTER DIVIDER SOUTH GROOVE
0MWM—
0AMH1:30AM
2MGOSOUTHWEST GRROVE
0MWL—
4MGOSTOP LOG GROOVE EAST ON CENTER DIVIDER
1MGOSTOP LOG GROOVES SOUTHSIDE
3MGOSOUTHWEST GROOVE
9MGONORTHEST STOP LOG GROOVE BOTTOM
8MGONORTHWEST GROOVE BROKEN TOP
7MGONORTHWEST GROOVE BROKEN

Properties (3)

additional_info
UPLEG DOWNSTREAM SIPHON-NOTCHES & STOP LOGS ONLY
customer
LACSD
datetime
2018-07-17T01:20:21-07:00
