Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 17, 2018, 07:41 AM

  • 08 0337_08 0336_7172018_005457.mp4

Date
07/17/2018
W/O
0717420
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00003
PipeID
P18913
Time
12:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0935
Sewer Name
08 DAVIDSON CITY TRUNK, SECTS 1,2,&3
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
14
Purpose
Maintenance Related
Project
20180717MDM_DAVISION_CITY_TRUNK_SECTS_1_2_3
Material
Reinforced Concrete Pipe
Shape
Circular
Height
24 in.
Upstream MH
08 0337
Downstream MH
08 0336
Dir. of Survey
Downstream
Length Surveyed
8 ft.
Total Length
8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 08 0337 to 08 0336
MH: 08 0337MH: 08 0336downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 12:50AM1 ft. MGO - General Observation - STOP LOG IN PLACE SOUTHSIDE2 ft. MGO - General Observation - STOP LOG GROOVES WEST SIDE3 ft. MGO - General Observation - WESTSIDE GROOVES MIDDLE DIVIDER4 ft. MGO - General Observation - EASTSIDE GROOVES5 ft. MGO - General Observation - NORTHEAST STOP LOG GROOVE6 ft. MGO - General Observation - WESTSIDE INSIDE GROOVE MIDDLE DIVIDER7 ft. MGO - General Observation - NORTHEAST GROOVE8 ft. MGO - General Observation - EAST GROOVE

Observation photos (8)

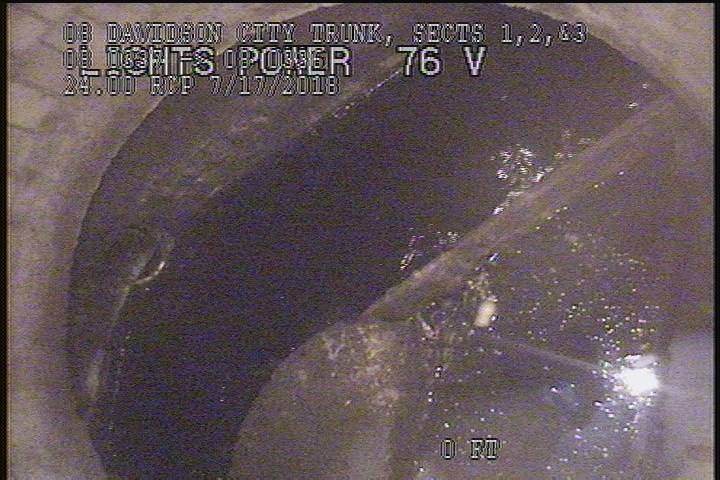

  • General Observation - STOP LOG IN PLACE SOUTHSIDE

    1 ft. - General Observation - STOP LOG IN PLACE SOUTHSIDE

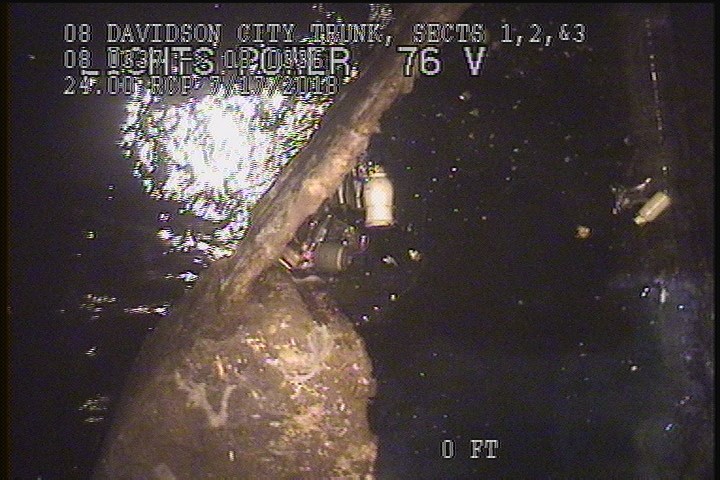

  • General Observation - STOP LOG GROOVES WEST SIDE

    2 ft. - General Observation - STOP LOG GROOVES WEST SIDE

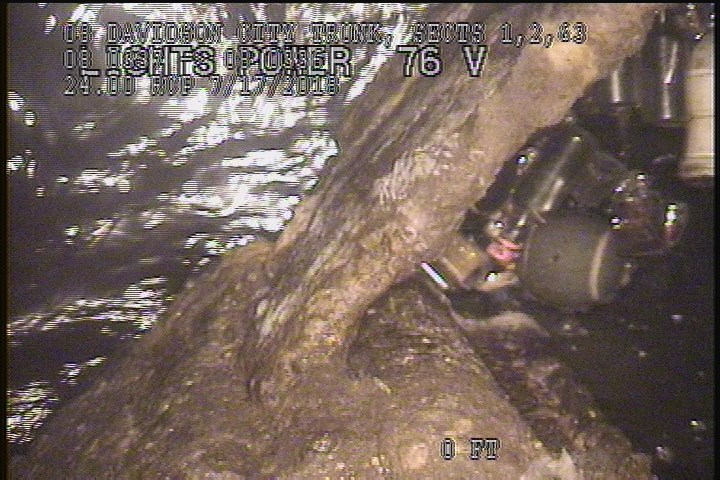

  • General Observation - WESTSIDE GROOVES MIDDLE DIVIDER

    3 ft. - General Observation - WESTSIDE GROOVES MIDDLE DIVIDER

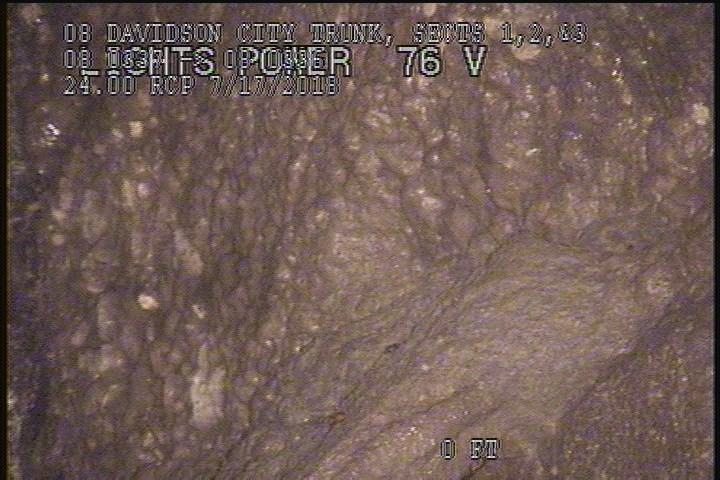

  • General Observation - EASTSIDE GROOVES

    4 ft. - General Observation - EASTSIDE GROOVES

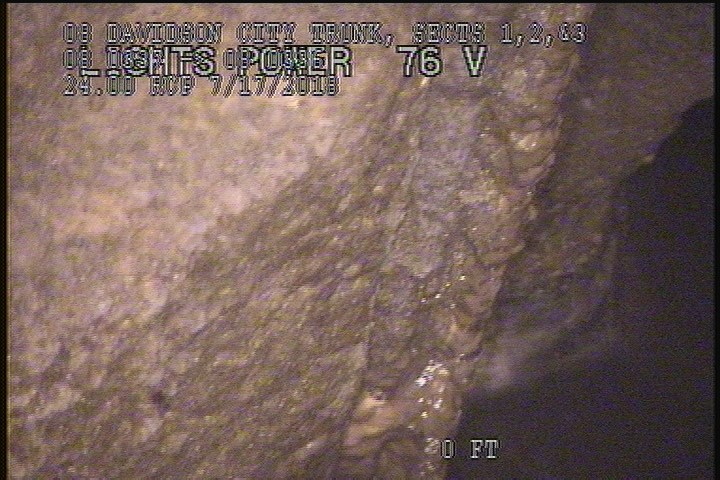

  • General Observation - NORTHEAST STOP LOG GROOVE

    5 ft. - General Observation - NORTHEAST STOP LOG GROOVE

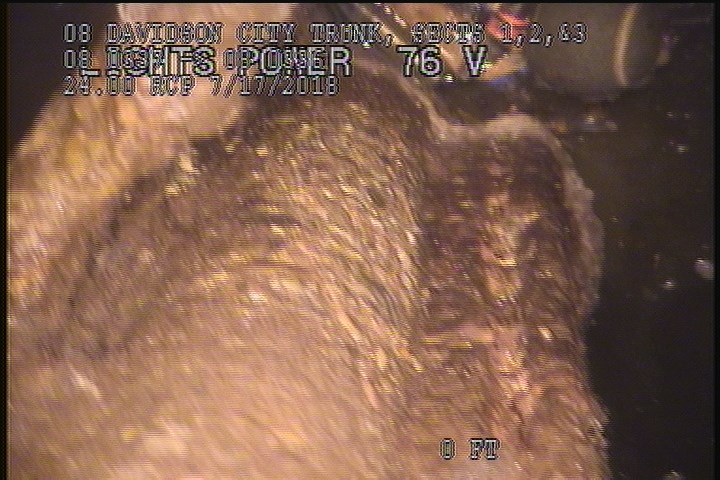

  • General Observation - WESTSIDE INSIDE GROOVE MIDDLE DIVIDER

    6 ft. - General Observation - WESTSIDE INSIDE GROOVE MIDDLE DIVIDER

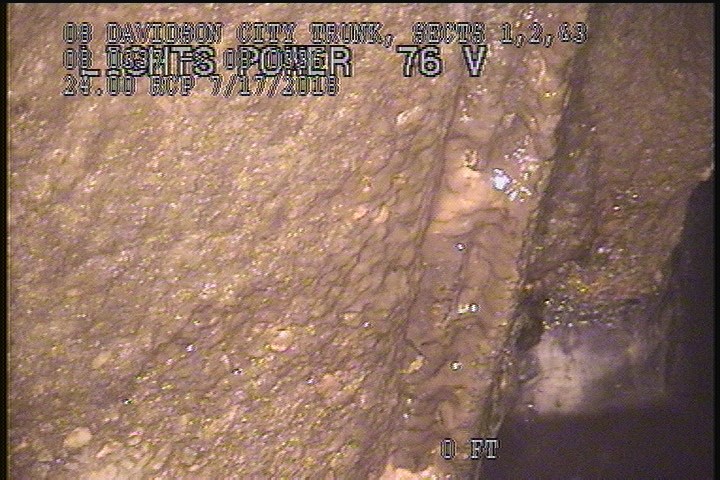

  • General Observation - NORTHEAST GROOVE

    7 ft. - General Observation - NORTHEAST GROOVE

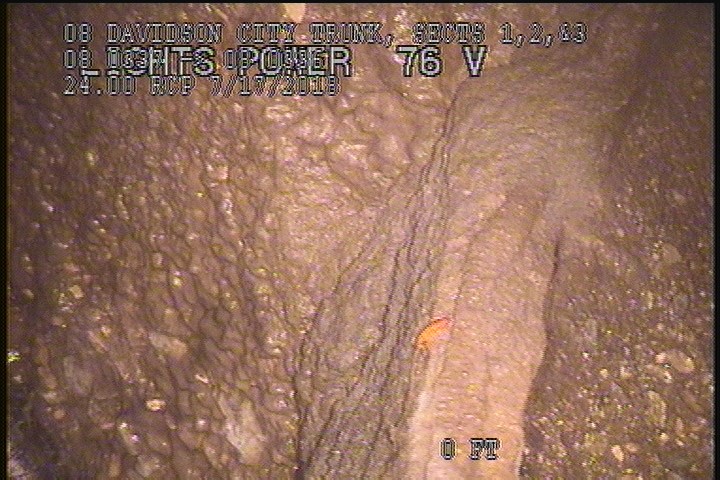

  • General Observation - EAST GROOVE

    8 ft. - General Observation - EAST GROOVE

All inspections of P18913Work order 0717420

Observations (11)

DistanceCodeObservation
0MWL—
3MGOWESTSIDE GROOVES MIDDLE DIVIDER
0MWM—
5MGONORTHEAST STOP LOG GROOVE
8MGOEAST GROOVE
1MGOSTOP LOG IN PLACE SOUTHSIDE
2MGOSTOP LOG GROOVES WEST SIDE
7MGONORTHEAST GROOVE
4MGOEASTSIDE GROOVES
0AMH12:50AM
6MGOWESTSIDE INSIDE GROOVE MIDDLE DIVIDER

Properties (3)

additional_info
DOWNLEG UPSTREAM SIPHON -NOTCHES & STOPLOGS ONLY
customer
LACSD
datetime
2018-07-17T00:41:41-07:00
