Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 10:48 AM
02 1546A_02 1546_27062018_035628.mp4
- Date
- 06/27/2018
- W/O
- 712111
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00230
- PipeID
- P03978
- Time
- 3:48 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5204
- Sewer Name
- 02 ARIZONA AVENUE TRUNK, SECTION 1
- City
- EAST LOS ANGELES
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_712111_TV02006_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1546A
- Downstream MH
- 02 1546
- Dir. of Survey
- Downstream
- Length Surveyed
- 136.7 ft.
- Total Length
- 136.7 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

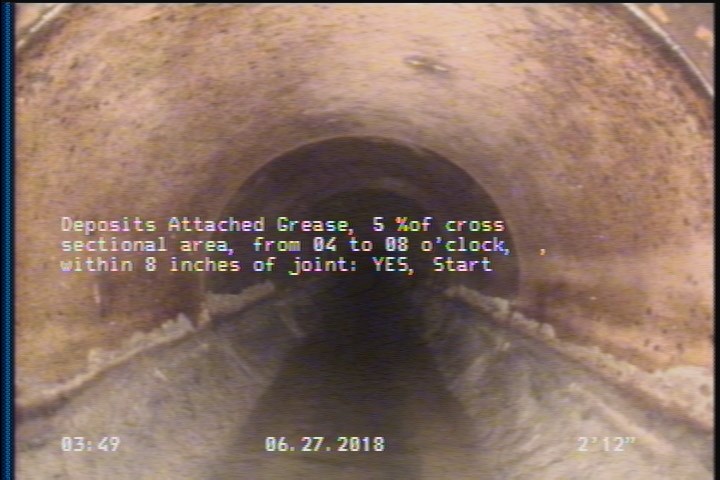

3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

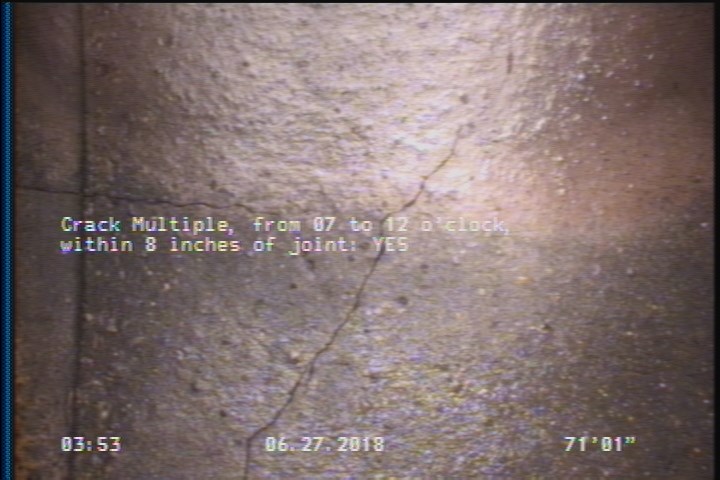

71.1 ft. - Crack Multiple, from 07 to 12 o'clock, within 8 inches of joint: YES

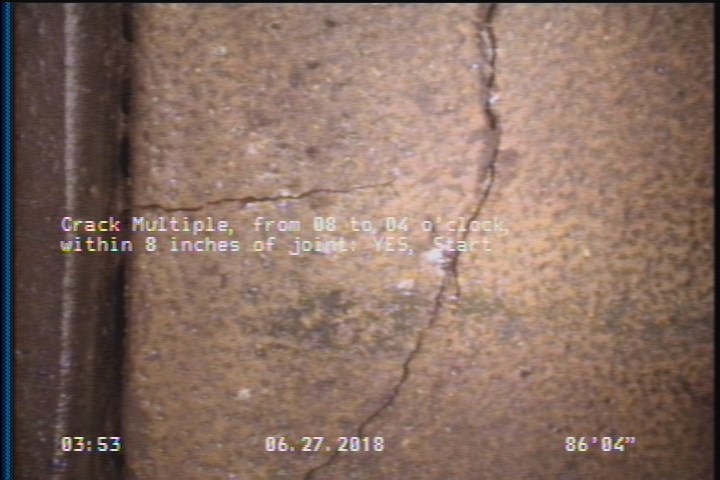

86.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 134.6 | DAGS | — |
| 71.1 | CM | — |
| 0 | MWL | — |
| 23.9 | TFC | — |
| 134.6 | CM | — |
| 0 | AMH | 02 1546A |
| 104.2 | TB | — |
| 46.9 | TFC | — |
| 98.2 | TBA | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 86.3 | CM | — |
| 49.4 | TFC | — |
| 136.7 | AMH | 02 1546 |
| 3 | DAGS | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC359529
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-27T03:48:13-07:00
