Wastewater/Activity/PacpInspection/1.0Jun 27, 2018, 11:05 AM
02 1545B_02 1545A_27062018_040929.mp4
- Date
- 06/27/2018
- W/O
- 712111
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00230
- PipeID
- P03976
- Time
- 4:05 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5204
- Sewer Name
- 02 ARIZONA AVENUE TRUNK, SECTION 1
- City
- EAST LOS ANGELES
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_712111_TV02006_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1545B
- Downstream MH
- 02 1545A
- Dir. of Survey
- Downstream
- Length Surveyed
- 31.8 ft.
- Total Length
- 31.8 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

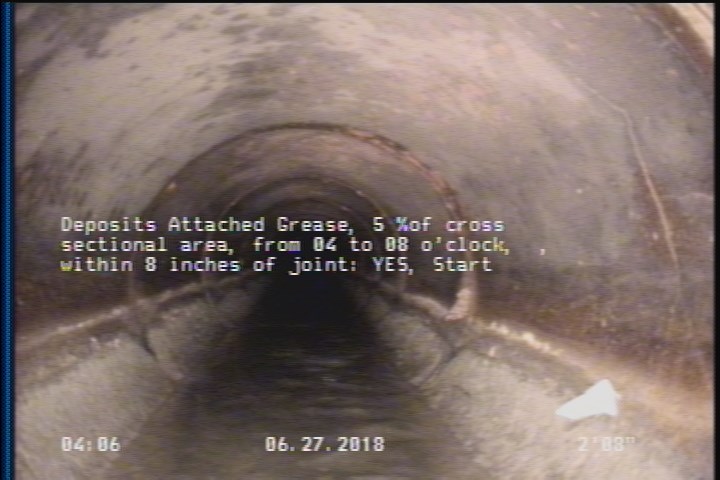

2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

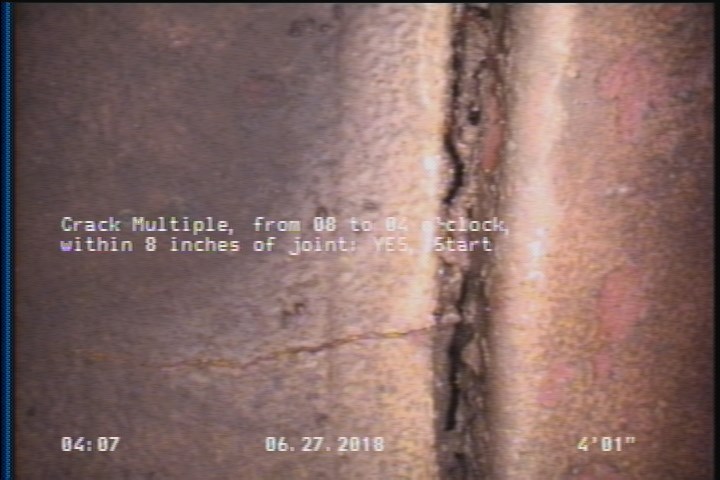

4.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 2.7 | DAGS | — |
| 0 | AMH | 02 1545B |
| 31.8 | AMH | 02 1545A |
| 0 | MWM | — |
| 31.3 | CM | — |
| 31.3 | DAGS | — |
| 4.1 | CM | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC359529
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-27T04:05:12-07:00
