Wastewater/Activity/PacpInspection/1.0Jun 26, 2018, 10:21 AM
03 0059_03 0058_26062018_034102.mp4
- Date
- 06/26/2018
- W/O
- 711905
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00366
- PipeID
- P05080
- Time
- 3:21 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5201
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_711905_TV03117_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 03 0059
- Downstream MH
- 03 0058
- Dir. of Survey
- Downstream
- Length Surveyed
- 328.7 ft.
- Total Length
- 328.7 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 13
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 17
Observation photos (3)
2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

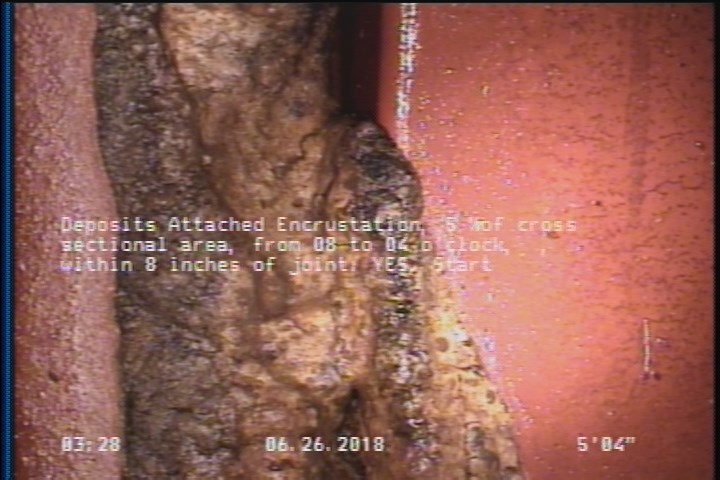

5.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

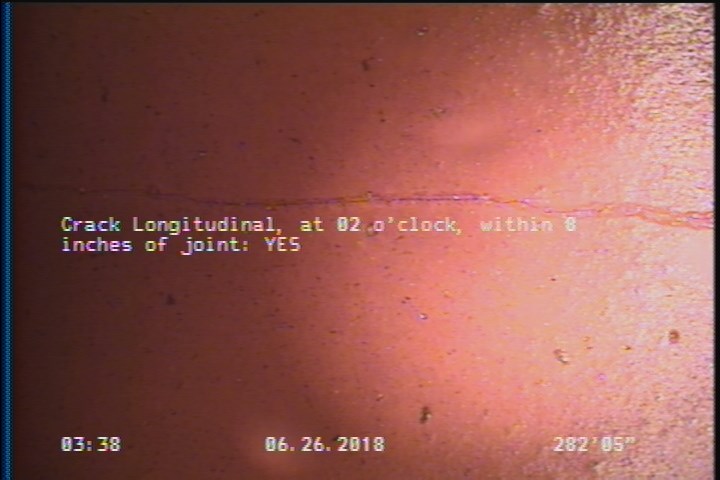

282.4 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 193.7 | TBA | — |
| 327.2 | DAGS | — |
| 2.5 | DAGS | — |
| 0 | MWL | — |
| 327.2 | DAE | — |
| 249.9 | TBA | — |
| 34.9 | LL | — |
| 88.1 | MWLS | — |
| 45.2 | DSF | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 92.9 | TB | — |
| 5.4 | DAE | — |
| 282.4 | CL | — |
| 45.2 | LR | — |
| 328.7 | AMH | 03 0058 |
| 7.1 | DSF | — |
| 0 | AMH | 03 0059 |
| 162 | MWLS | — |
Properties (4)
- additional_info
- SC359526
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-26T03:21:48-07:00
