Wastewater/Activity/PacpInspection/1.0Jun 25, 2018, 11:39 AM
03 0041_03 0040_25062018_045934.mp4
- Date
- 06/25/2018
- W/O
- 711905
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00366
- PipeID
- P05061
- Time
- 4:39 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5749
- Sewer Name
- 03 LOS COYOTES DIAGONAL TRUNK
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_711905_TV03117_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 03 0041
- Downstream MH
- 03 0040
- Dir. of Survey
- Downstream
- Length Surveyed
- 336.8 ft.
- Total Length
- 336.8 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 134
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 143
Observation photos (4)

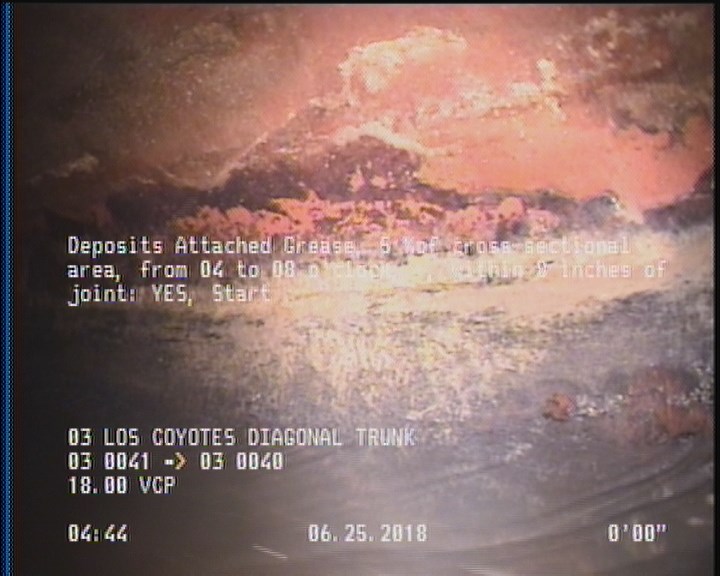

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

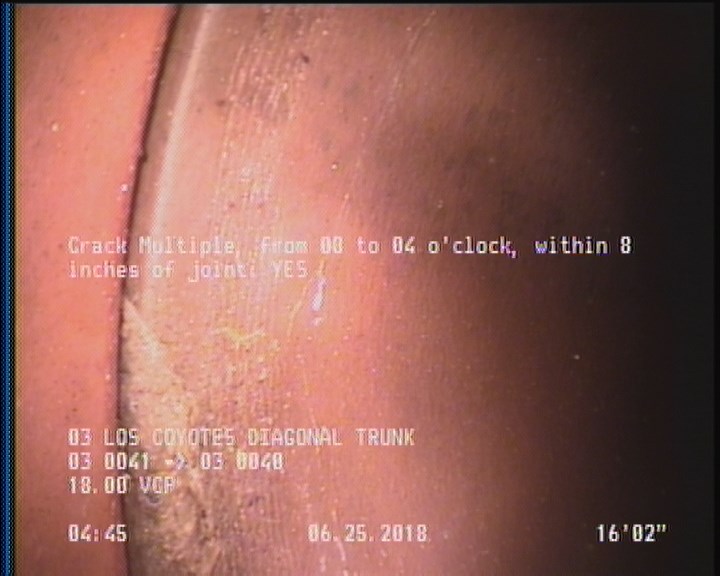

16.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
51.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

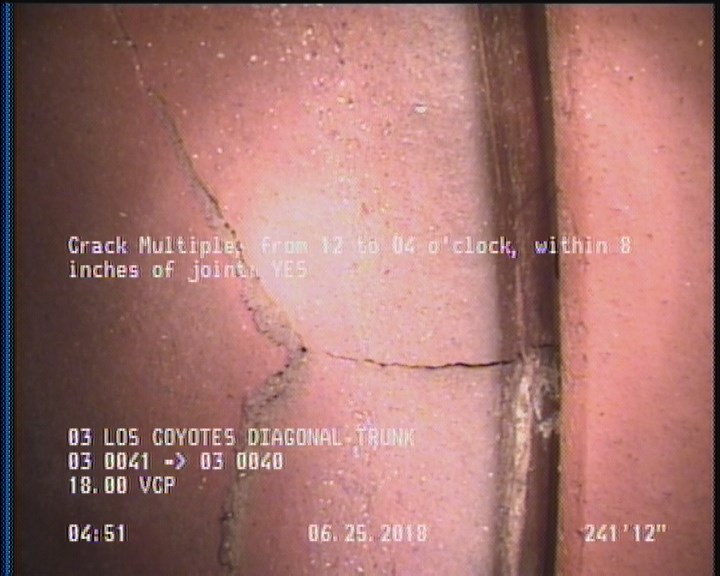

242 ft. - Crack Multiple, from 12 to 04 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 197.1 | TFA | — |
| 334.7 | DAGS | — |
| 336.8 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 336.8 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 104.9 | TFA | — |
| 49 | TFA | — |
| 51.9 | CM | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 150.7 | TFA | — |
| 243.9 | TFA | — |
| 16.1 | CM | — |
| 242 | CM | — |
| 2 | DAGS | — |
| 336.8 | MGO | COCKROACHES IN MANHOLE |
| 336.8 | AMH | 03 0040 |
| 0 | AMH | 03 0041 |
Properties (4)
- additional_info
- SC359715
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-25T04:39:05-07:00
