Wastewater/Activity/PacpInspection/1.0Jun 18, 2018, 10:14 AM
A 0393_A 0392 _18062018_034358.mp4
- Date
- 06/18/2018
- W/O
- 706931
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00325
- PipeID
- P08303
- Time
- 3:14 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5698
- Sewer Name
- A JOA-1A SAN JOSE CREEK WRP INTERCEPTOR
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_706931_TV15003_JUN2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- A 0393
- Downstream MH
- A 0392
- Dir. of Survey
- Downstream
- Length Surveyed
- 451.1 ft.
- Total Length
- 451.1 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

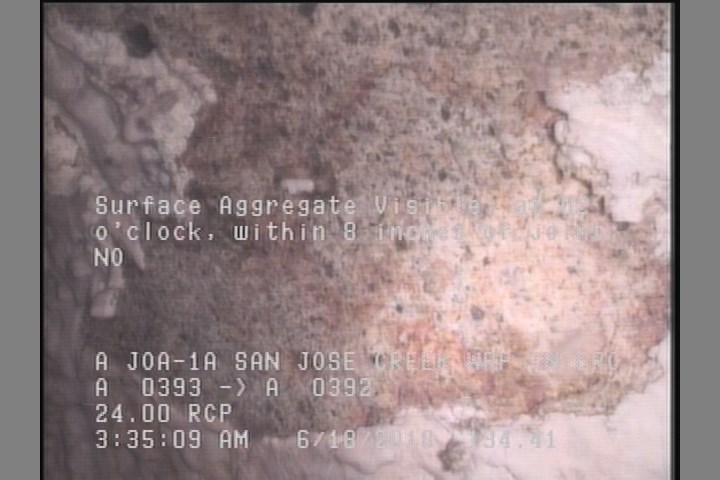

134.4 ft. - Surface Aggregate Visible, at 02 o'clock, within 8 inches of joint: NO

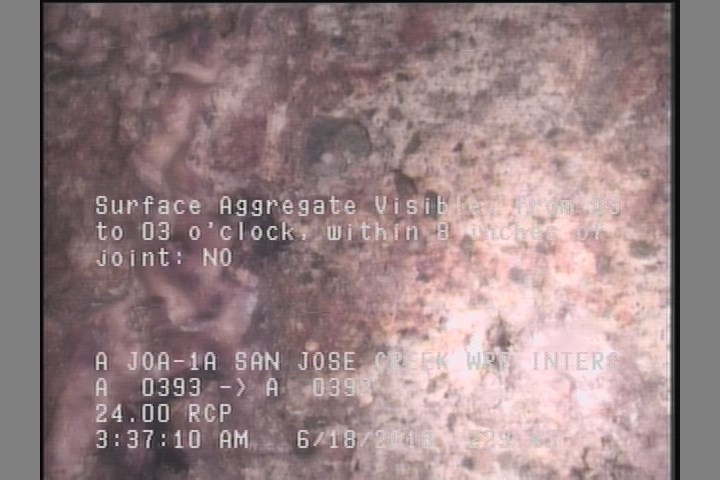

229.4 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | MGO | MAG COAT |
| 0 | AMH | A 0393 |
| 451.1 | AMH | A 0392 |
| 229.4 | SAV | — |
| 134.4 | SAV | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC359656
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-06-18T03:14:57-07:00
- year_laid
- 29595
