Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 8, 2017, 07:07 AM

  • 05 1523_05 1522 _08092017_000827.mp4

Date
09/08/2017
W/O
651692
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00528
PipeID
P06745
Time
12:07 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4864
Sewer Name
05 TORRANCE EXTENSION TRUNK
City
TORRANCE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
29
Purpose
Routine Assessment
Project
WO_651692_TV05309_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
05 1523
Downstream MH
05 1522
Dir. of Survey
Downstream
Length Surveyed
306.5 ft.
Total Length
306.6 ft.
Structural Index
3
Structural Quick
413K
Structural Rating
181
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
181
Pipe schematic from manhole 05 1523 to 05 1522
MH: 05 1523MH: 05 1522downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 15230 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area5.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"9.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES15.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"80.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"126.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"159.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"196.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"213.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"221.5 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES290.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"306.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish306.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK306.6 ft. AMH - Downstream Manhole, Survey Ends - 05 1522

Observation photos (3)

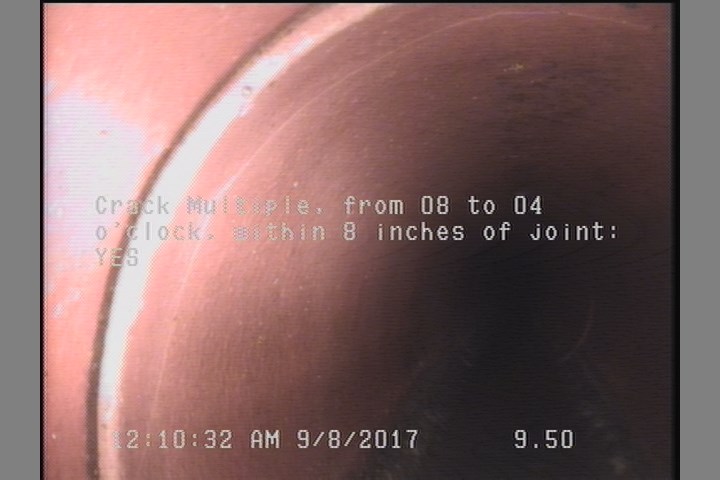

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    9.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

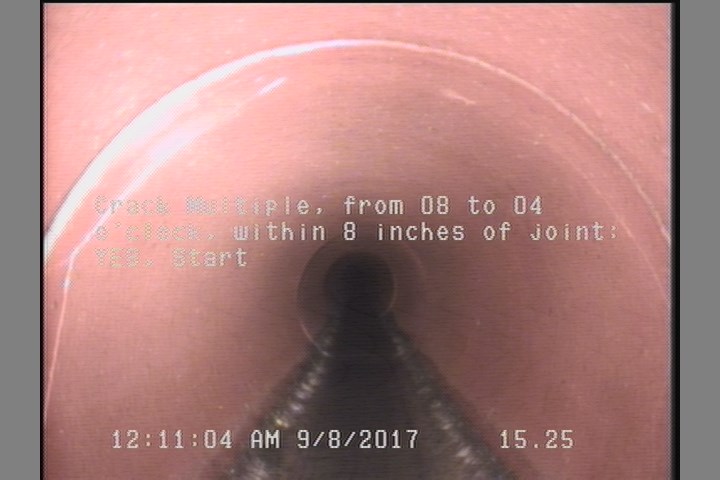

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    15.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

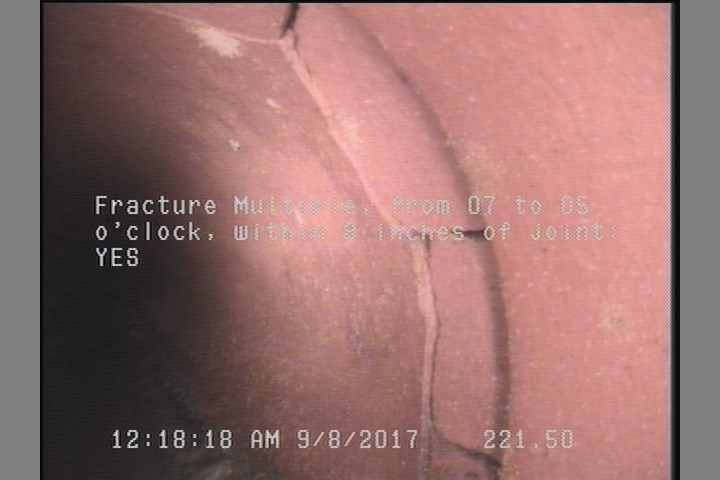

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

    221.5 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES

All inspections of P06745Work order 651692

Observations (17)

DistanceCodeObservation
221.5FM—
306.6CM—
80.7TF—
0AMH05 1523
290.2TFC—
196.2TF—
9.5CM—
306.6MGOCONNECTION AT MH 3 O'CLOCK
126.4TF—
0MWL—
159.7TF—
213.9TF—
50.5TF—
5.3TF—
306.6AMH05 1522
0MWM—
15.3CM—

Properties (4)

additional_info
SC345923
custom_field_two
2
customer
LACSD
datetime
2017-09-08T00:07:45-07:00
