Wastewater/Activity/PacpInspection/1.0May 3, 2016, 06:30 AM

  • 05 1290_05 1289_02052016_233157.mp4

Date
05/02/2016
W/O
563344
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00453
PipeID
P06503
Time
11:30 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3336
Sewer Name
05 GRAMERCY PLACE TRUNK, SECTION 1
City
GARDENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
21
Purpose
Routine Assessment
Project
RFIR_WO_563344_TV05181_APRIL2016
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Upstream MH
05 1289
Downstream MH
05 1290
Dir. of Survey
Upstream
Length Surveyed
2 ft.
Total Length
2 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 05 1289 to 05 1290
MH: 05 1289MH: 05 1290upstream0 ft. H - Hole, at 12 o'clock, within 8 inches of joint: NO0 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES0 ft. MSA - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.2 ft. AMH - Downstream Manhole, Survey Begins - 05 12892 ft. MWL - Water Level, 50 %of cross sectional area

Observation photos (3)

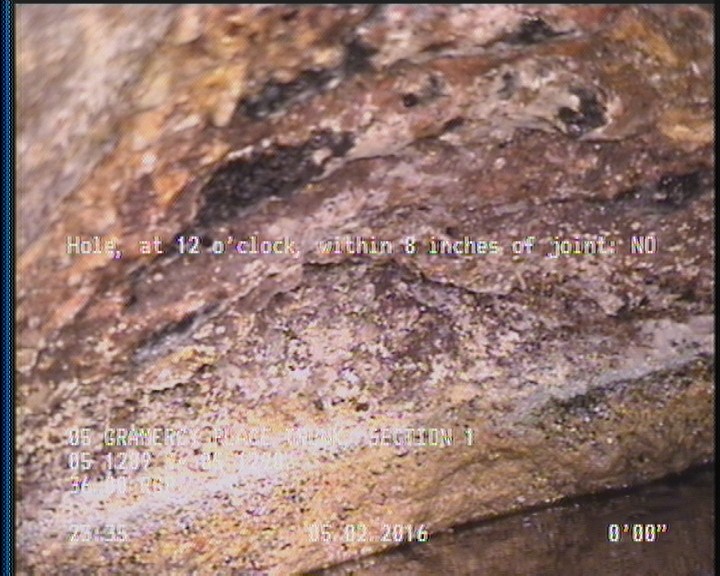

  • Hole, at 12 o'clock, within 8 inches of joint: NO

    2 ft. - Hole, at 12 o'clock, within 8 inches of joint: NO

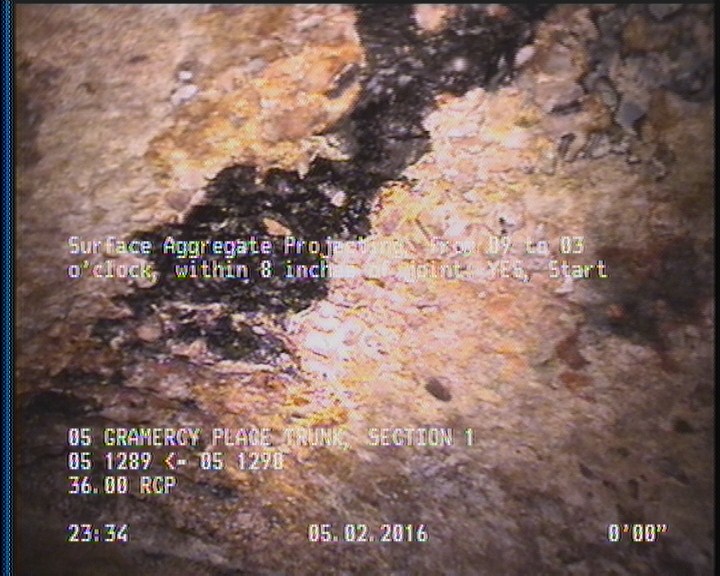

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES

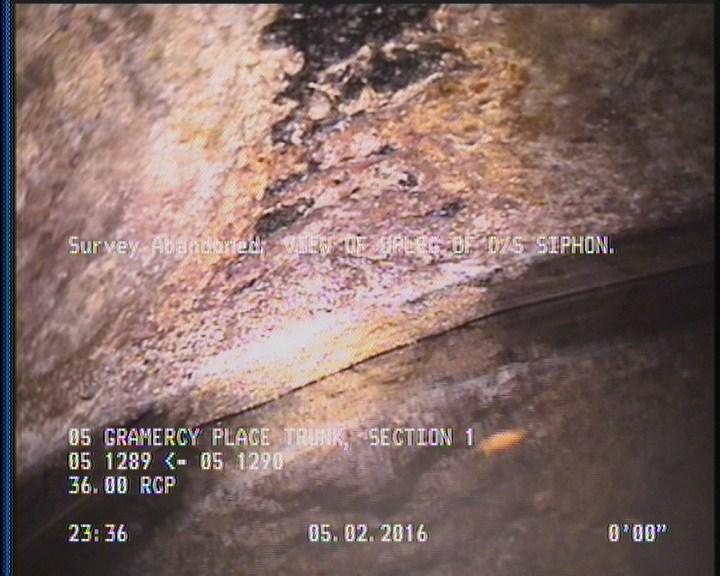

  • Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

    2 ft. - Survey Abandoned - VIEW OF UPLEG OF D/S SIPHON.

All inspections of P06503Work order 563344

Observations (5)

DistanceCodeObservation
0AMH05 1289
2H—
2SAP—
2MSAVIEW OF UPLEG OF D/S SIPHON.
0MWL—

Properties (4)

additional_info
SC305611
custom_field_two
3
customer
LACSD
datetime
2016-05-02T23:30:29-07:00
