Wastewater/Activity/PacpInspection/1.0Jun 28, 2018, 05:20 AM
H 0277_H 0276 _27062018_224242.mp4
- Date
- 06/27/2018
- W/O
- 712119
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00173
- PipeID
- P10733
- Time
- 10:20 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5806
- Sewer Name
- H JOINT OUTFALL H - UNIT 2H
- City
- VERNON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 23
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_712119_TV23005_JUL2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- H 0277
- Downstream MH
- H 0276
- Dir. of Survey
- Downstream
- Length Surveyed
- 264.3 ft.
- Total Length
- 264.3 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 17
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (4)

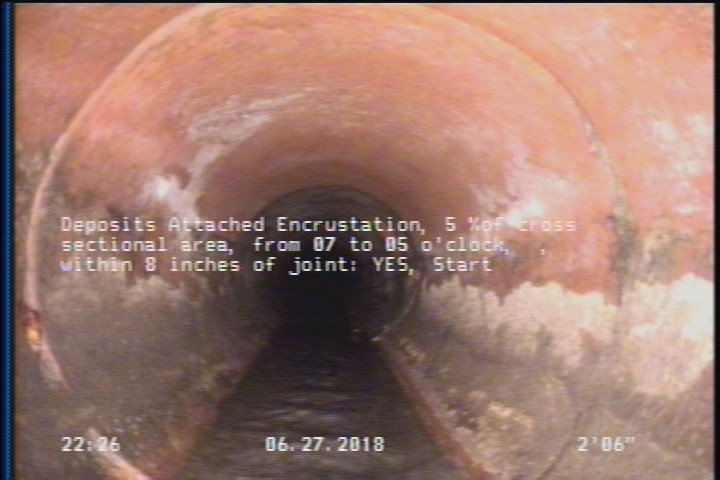

2.5 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES, Start

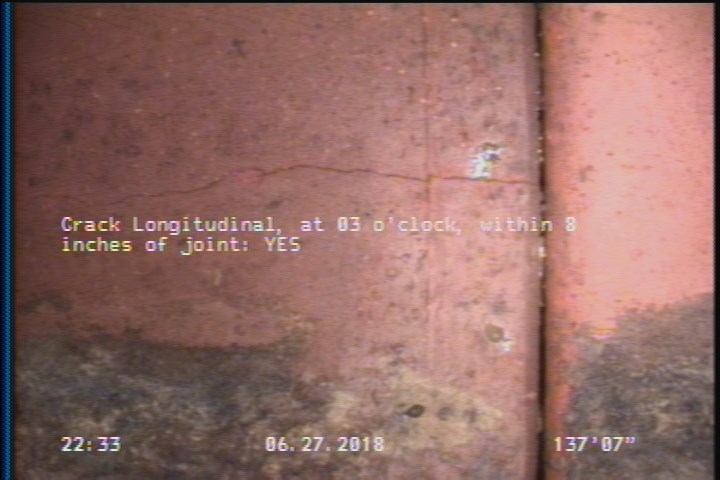

137.6 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

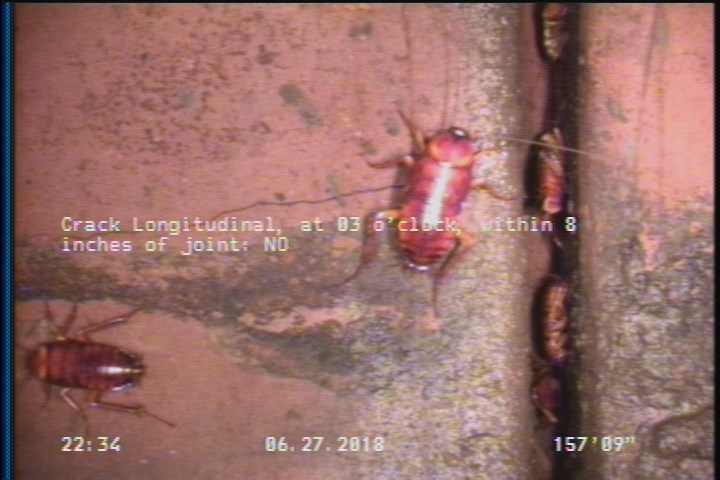

157.7 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: NO

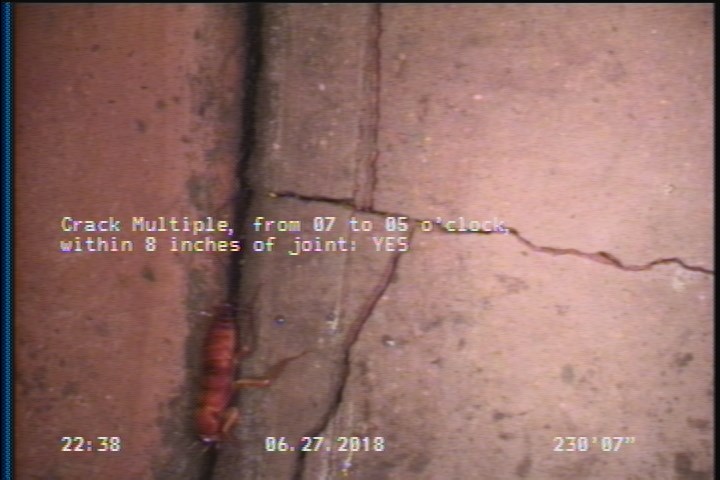

230.6 ft. - Crack Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 70.4 | TBC | — |
| 0 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 78.6 | TBC | — |
| 0 | AMH | H 0277 |
| 0 | MWL | — |
| 157.7 | CL | — |
| 2.5 | DAE | — |
| 9.7 | TBC | — |
| 262.1 | DAE | — |
| 232 | TB | — |
| 239.7 | TB | — |
| 137.6 | CL | — |
| 151.2 | TBC | — |
| 230.6 | CM | — |
| 158.6 | TBD | — |
| 0.1 | MWM | — |
| 264.3 | AMH | H 0276 |
Properties (4)
- additional_info
- SC359530
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-06-27T22:20:08-07:00
